Specifications
BATTERY
Cell Type:
LiFePO4 Battery
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Nominal Energy:
2560Wh
Cycle Life:
5000 cycles
BMS
BMS:
100A
Maximum Charging Current:
100A
Maximum Continuous Discharge Current:
100A
Maximum Discharge Current 10 Seconds:
110A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
50A (0.5C)
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14℉ to 95℉ (-10℃ to 35℃)

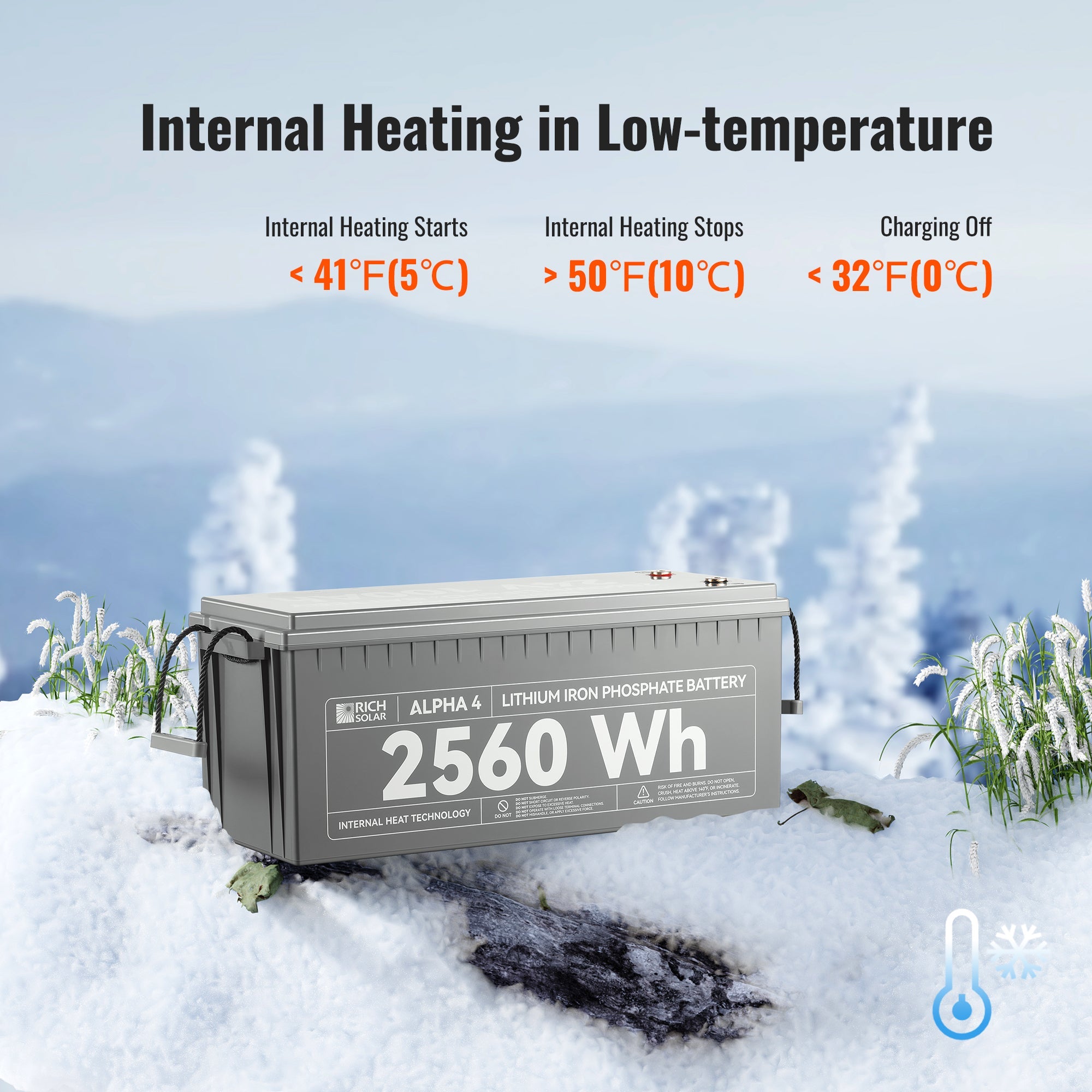

SELF-HEATING
External Power Draw:
100W
Internal Heating Starts:
< 41℉ (5℃)
Internal Heating Stops:
> 50℉ (10℃)
OTHERS
Net Battery Weight:
48.5lb
Size(LxWxH):
20.9x8.1x8.5in
Housing Material:
ABS (Flame Retardant Plastic)
Protection Class:
IP65
Warranty:
5 Years
Premium Energy, No Fuss
If you're looking to get the most out of your battery without worrying about it breaking down on you, the ALPHA 4 LITE is the 24V 200Ah LiFePO4 battery that provides you with all the energy you need. Built with RICH SOLAR's quality materials and boasting 2560Wh, you won't have to worry about running out of energy wherever you are.
With a durable and lightweight design that's packed with individually fused lithium cells, the ALPHA 4 LITE is the no-nonsense battery for people looking to get up and go.
Specifications
BATTERY
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Cycle Life:
> 4000 cycles
Operating Specifications
Capacity:
100Ah
Energy:
2560 Watt Hours
Charge Voltage:
28.8V
Continuous Discharge Current:
100A
Self Discharge:
< 5%/month
Temperature Performance
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(LxWxH):
20.9x8.1x8.5 in
Weight:
52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.05V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V±0.05V
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5-year warranty
