Specifications
BATTERY
Cell Type:
LiFePO4 Battery
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Nominal Energy:
2560Wh
Cycle Life:
5000 cycles
BMS
BMS:
100A
Maximum Charging Current:
100A
Maximum Continuous Discharge Current:
100A
Maximum Discharge Current 10 Seconds:
110A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
50A (0.2C)
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14℉ to 113℉ (-10℃ to 45℃)
SELF-HEATING
External Power Draw:
100W
Internal Heating Starts:
< 41℉ (5℃)
Internal Heating Stops:
> 50℉ (10℃)
OTHERS
Net Battery Weight:
48.5lb
Size(LxWxH):
20.9x8.1x8.5in (Group 31 size)
Housing Material:
ABS (Flame Retardant Plastic)
Protection Class:
IP65
Warranty:
5 Years
Energy Whenever You Need It
For adventurers and off-gridders looking for durable and powerful energy storage solutions, the new ALPHA 2 LITE is a 12V 200Ah LiFePO4 battery that can provide reliable energy. Its durable construction and individually fused LiFePO4 cells grant the battery excessive heat protection, short circuit protection, and individual cell failure protection.
Boasting 2560Wh and a BMS system to ensure optimal protection, you won't even have to worry about running out of energy. Whether setting up your backup generator or boondocking in the middle of the summer, the ALPHA 2 LITE gives you the freedom to go where you want.
Specifications
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Minimum Capacity:
199Ah
Cycle Life:
> 4000 cycles
Operating Specifications
Capacity:
200Ah
Energy:
2560 Watt Hours
Charge Voltage:
14.4V
Continuous Discharge Current:
200A
Self Discharge:
< 5%/month
Temperature Performance
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(LxWxH):
20.9x8.1x8.5 in (Group 31 size)
Weight:
52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.03V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Short Circuit Protection
Warranty: 5-year warranty
Specifications
BATTERY
Cell Type:
LiFePO4 Battery
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Nominal Energy:
2560Wh
Cycle Life:
7000 cycles
BMS
BMS:
200A
Maximum Charging Current:
200A
Maximum Continuous Discharge Current:
200A
Maximum Discharge Voltage(CC/CV):
14.4V
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
100A (0.5C)
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14℉ to 95℉ (-10℃ to 35℃)
SELF-HEATING
External Power Draw:
100W
Internal Heating Starts:
< 41℉ (5℃)
Internal Heating Stops:
> 50℉ (10℃)
OTHERS
Net Battery Weight:
52.9 lb
Size(LxWxH):
20.9x8.1x8.5in (Group 31 size)

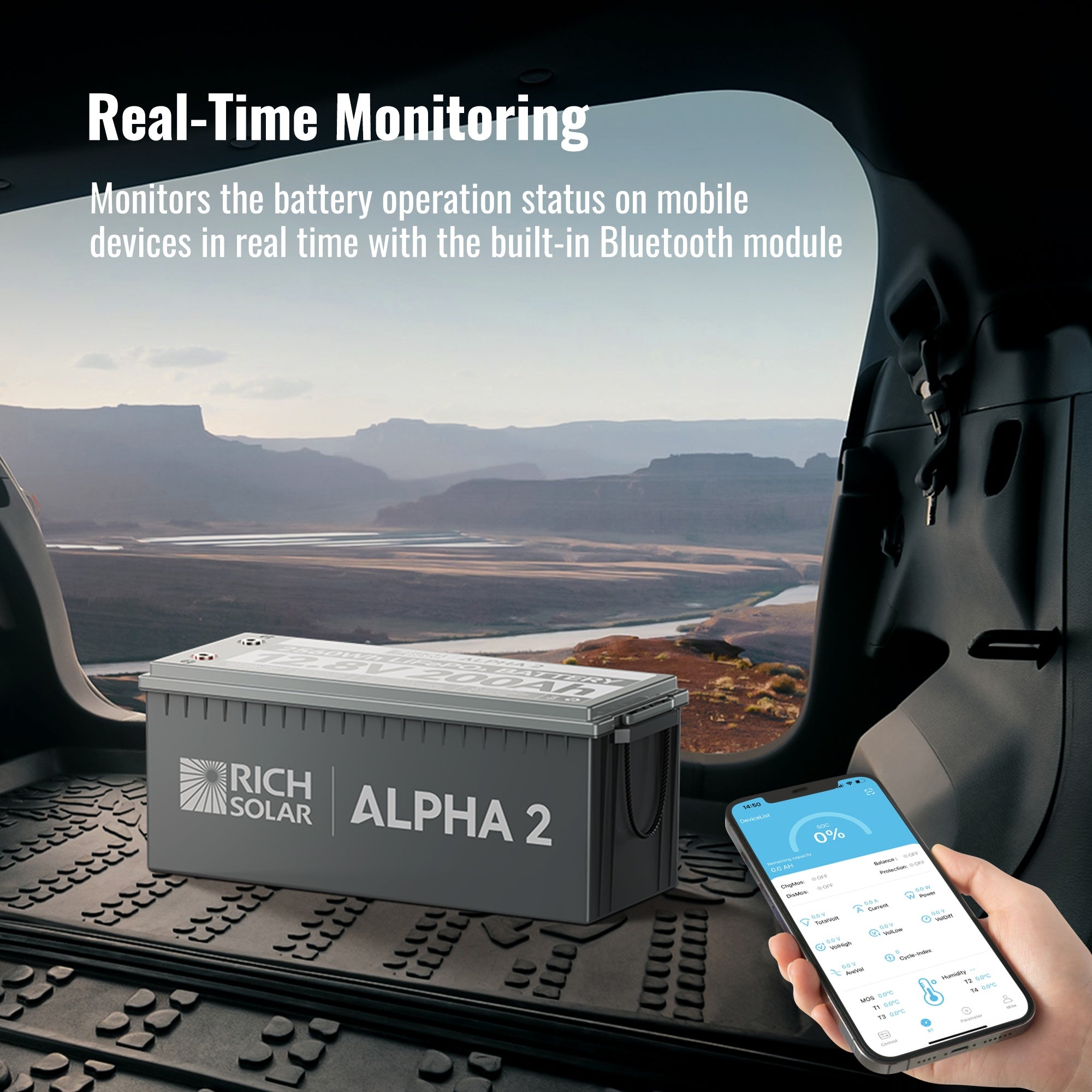

Bluetooth Remote Monitoring:
Supported
Housing Material:
ABS (Flame Retardant Plastic)
Warranty:
10 Years
Certifications:
UL1973, FCC, UN38.3, MSDS
