Installation and Wiring-Overview
The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.
Recommended Tools
- Wrench
- Drill
- Jigsaw
- 2 ring terminals of appropriate size for battery cable
- Crimp tool for ring terminals
Wiring Diagram
The following wiring diagram will be referenced in the next section.

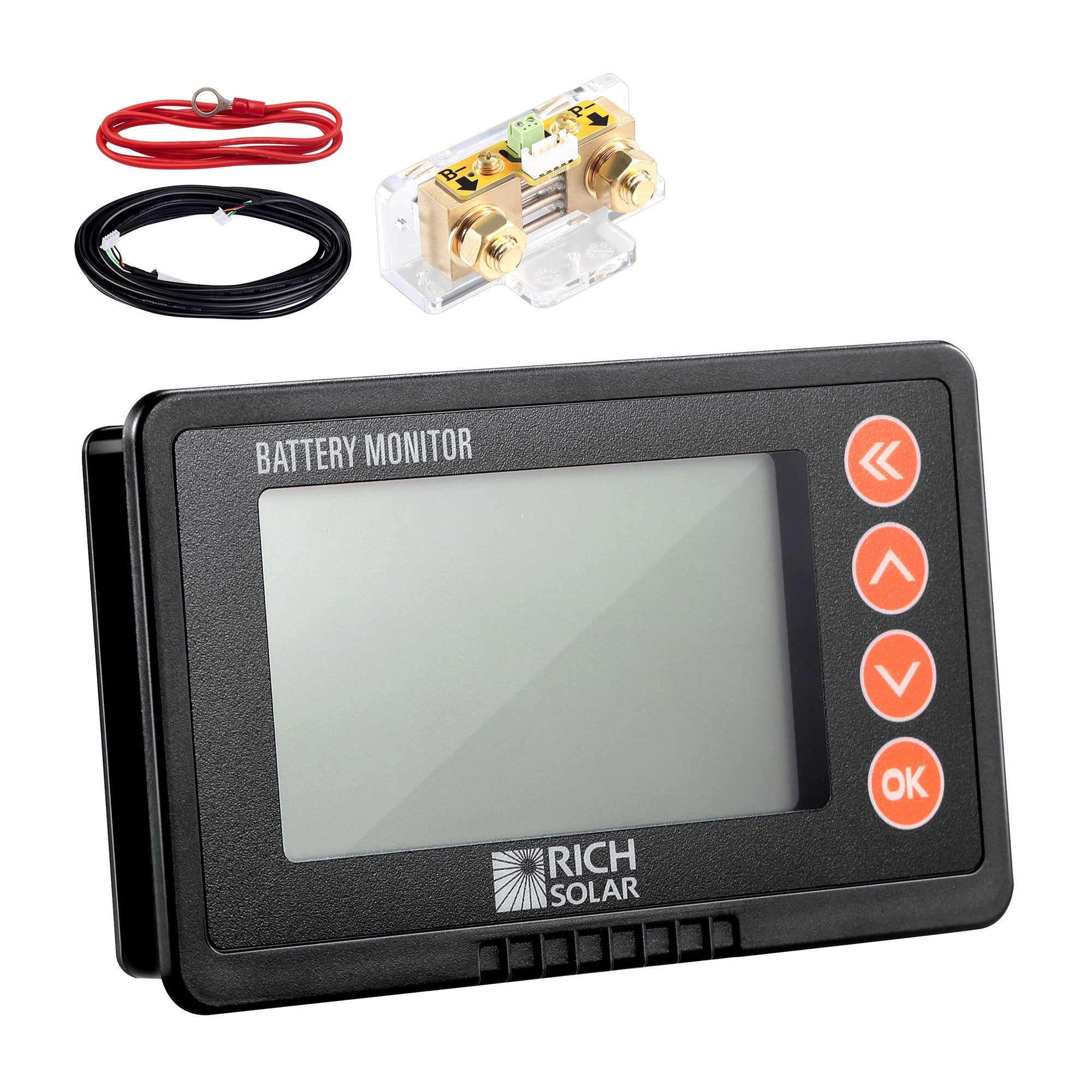

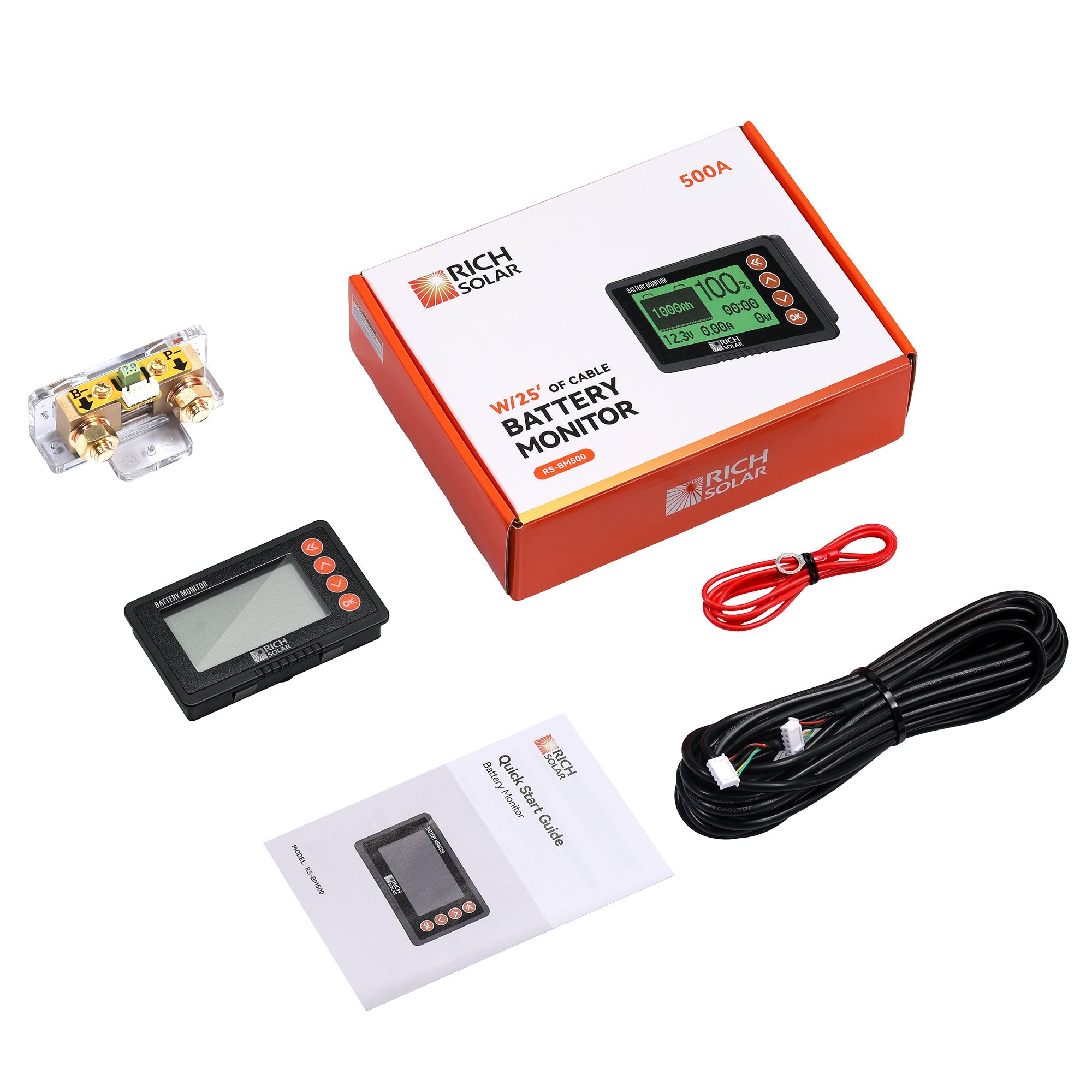

Installation
- Before doing anything, disconnect all wires from the negative side of the battery.
- Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
- Install the shunt as shown in the wiring diagram above.
Note: The negative terminal of the battery must connect directly to the “B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements. - Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
Note: Do not stack smaller terminals under large ones. - Connect the shunt to the remote display using the included shielded cable.

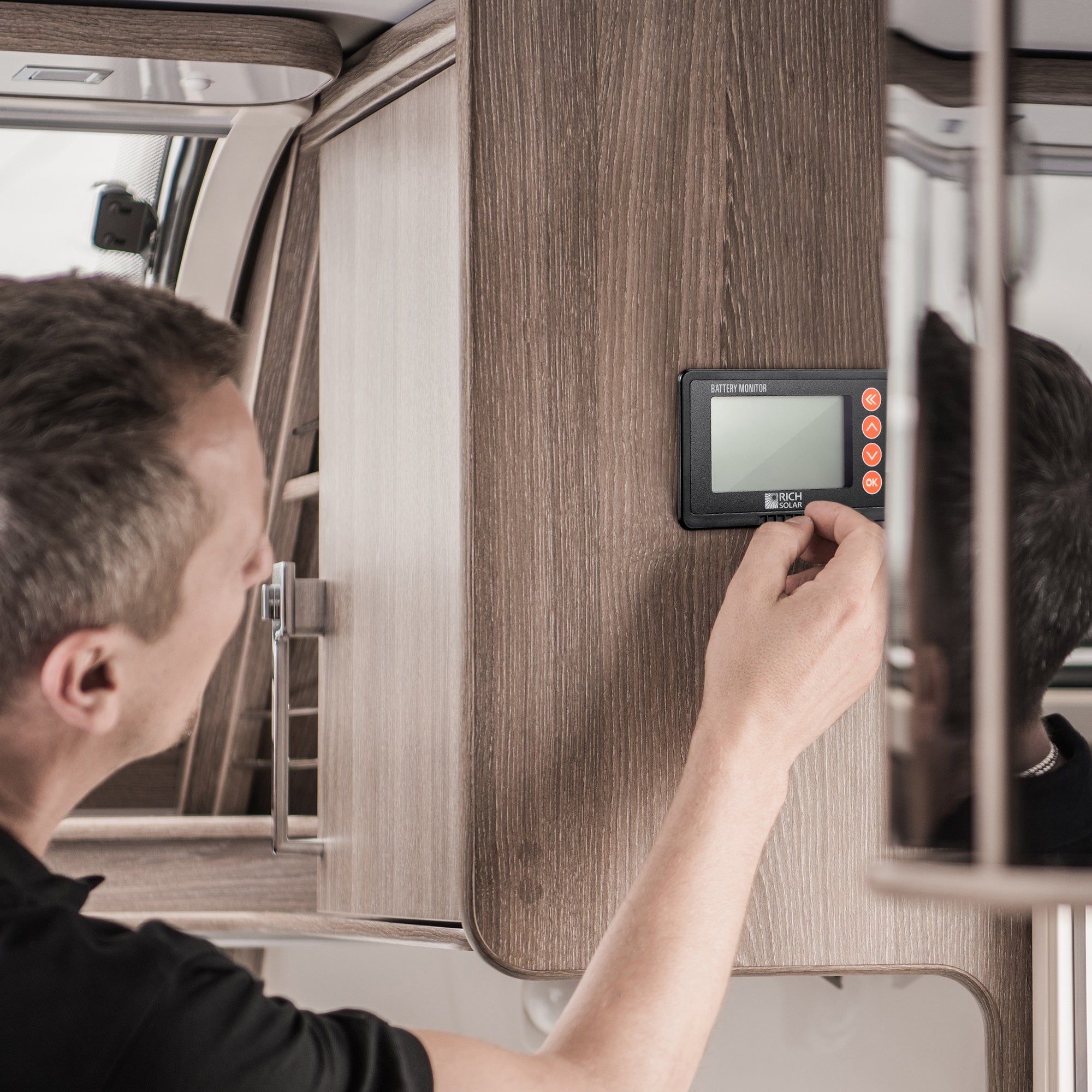

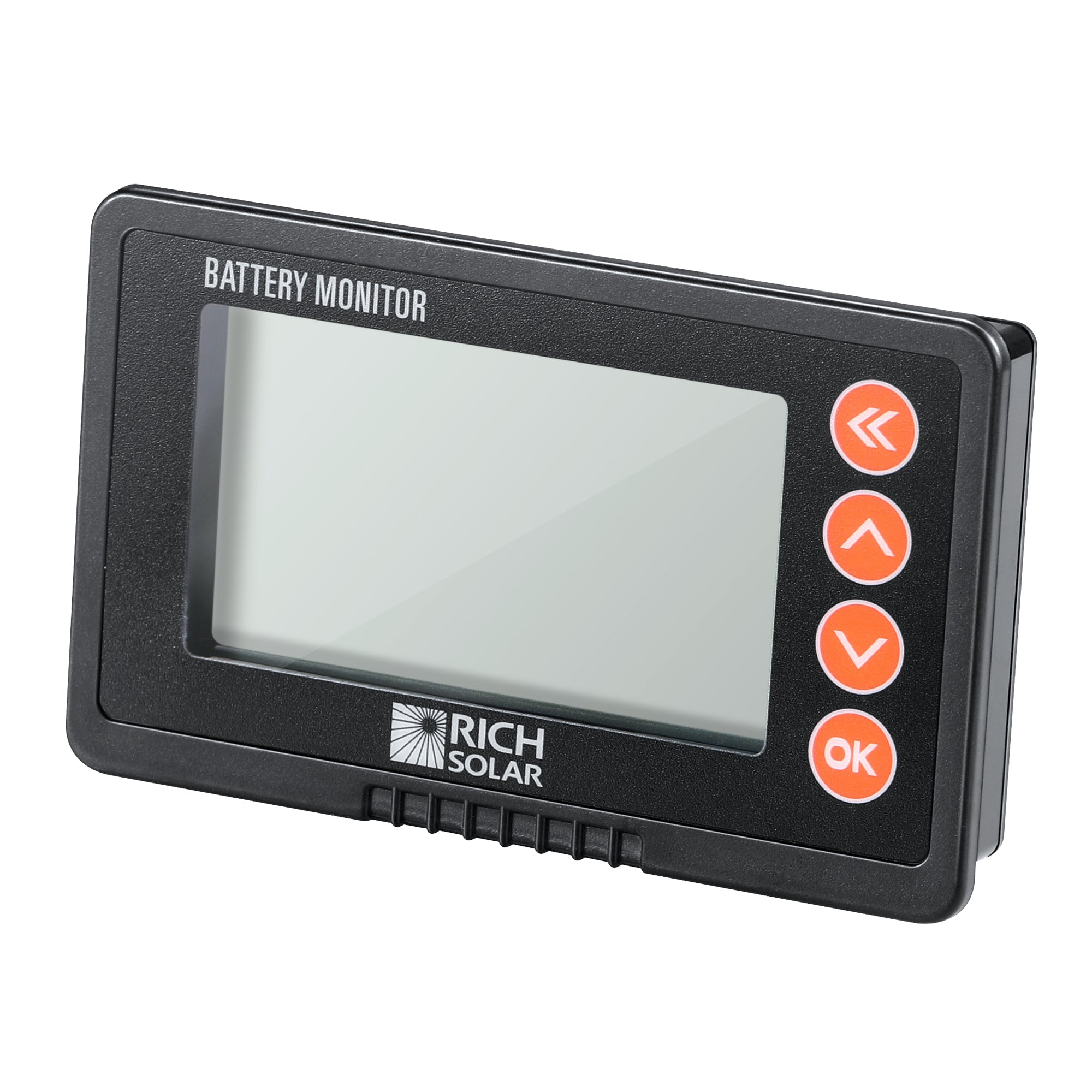

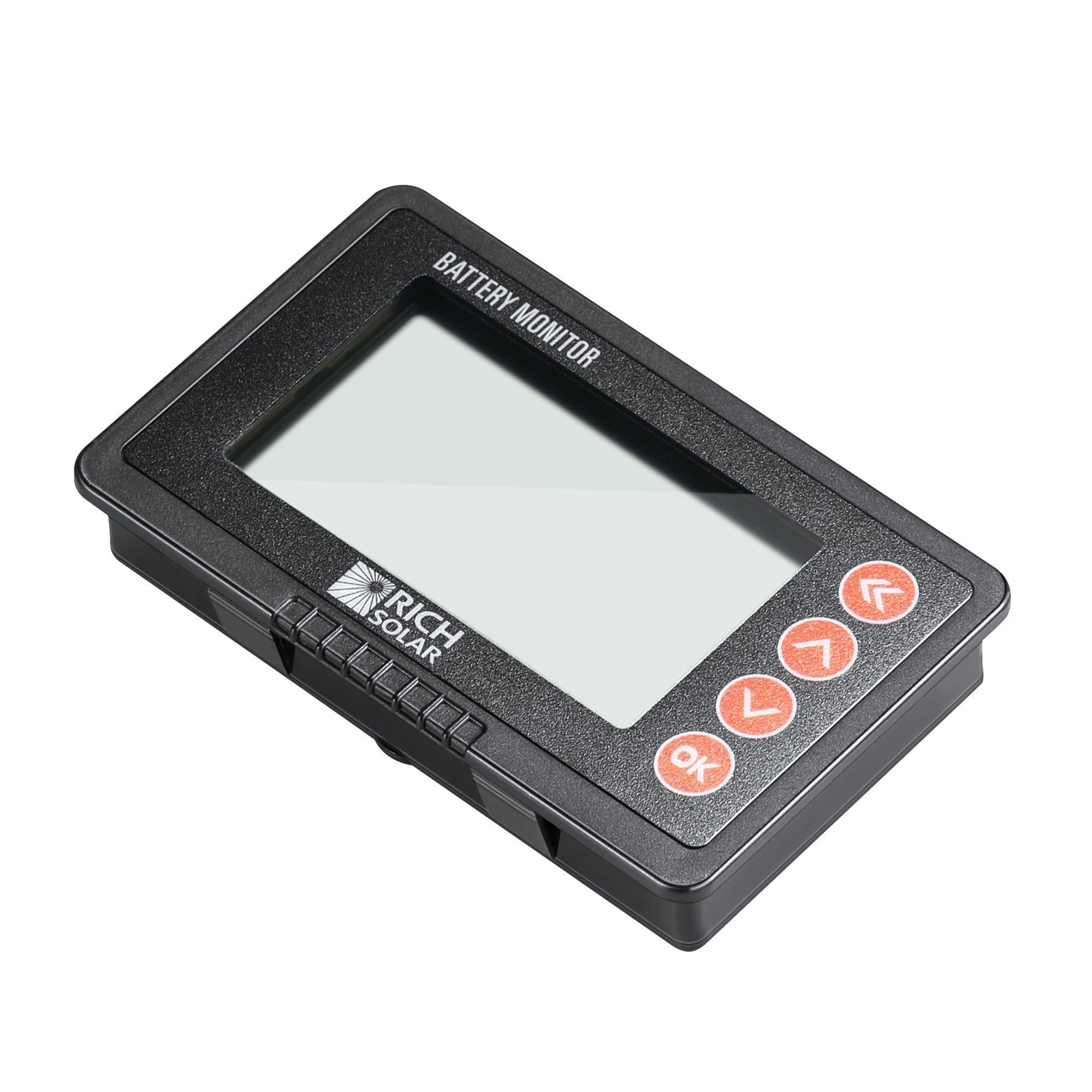

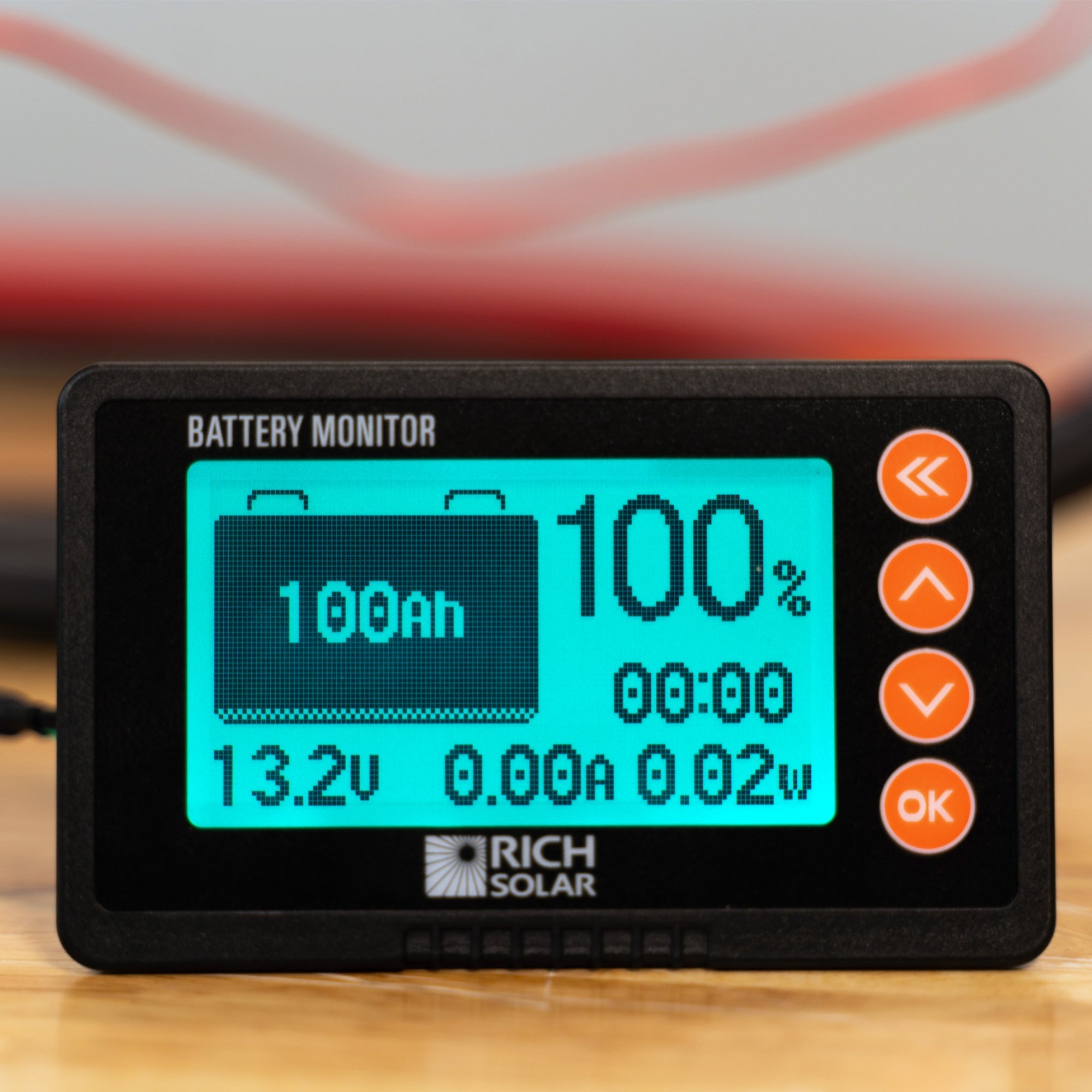

Mounting the Remote Display
- Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
- Drill a hole in the center of the planned location and use the jigsaw to cut a hole according to the following picture.
- Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
- Connect the shielded cable to the remote and snap the remote into place.

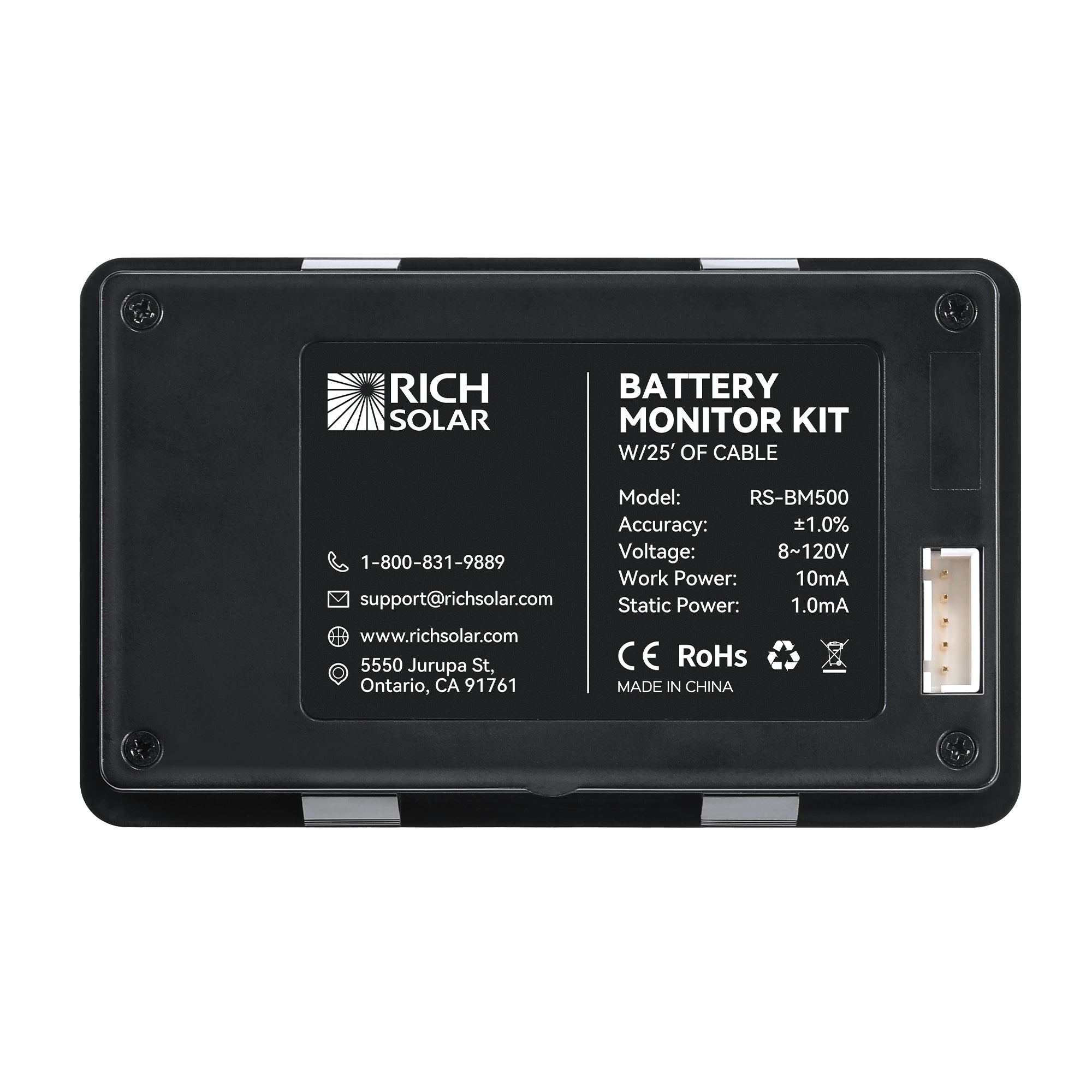

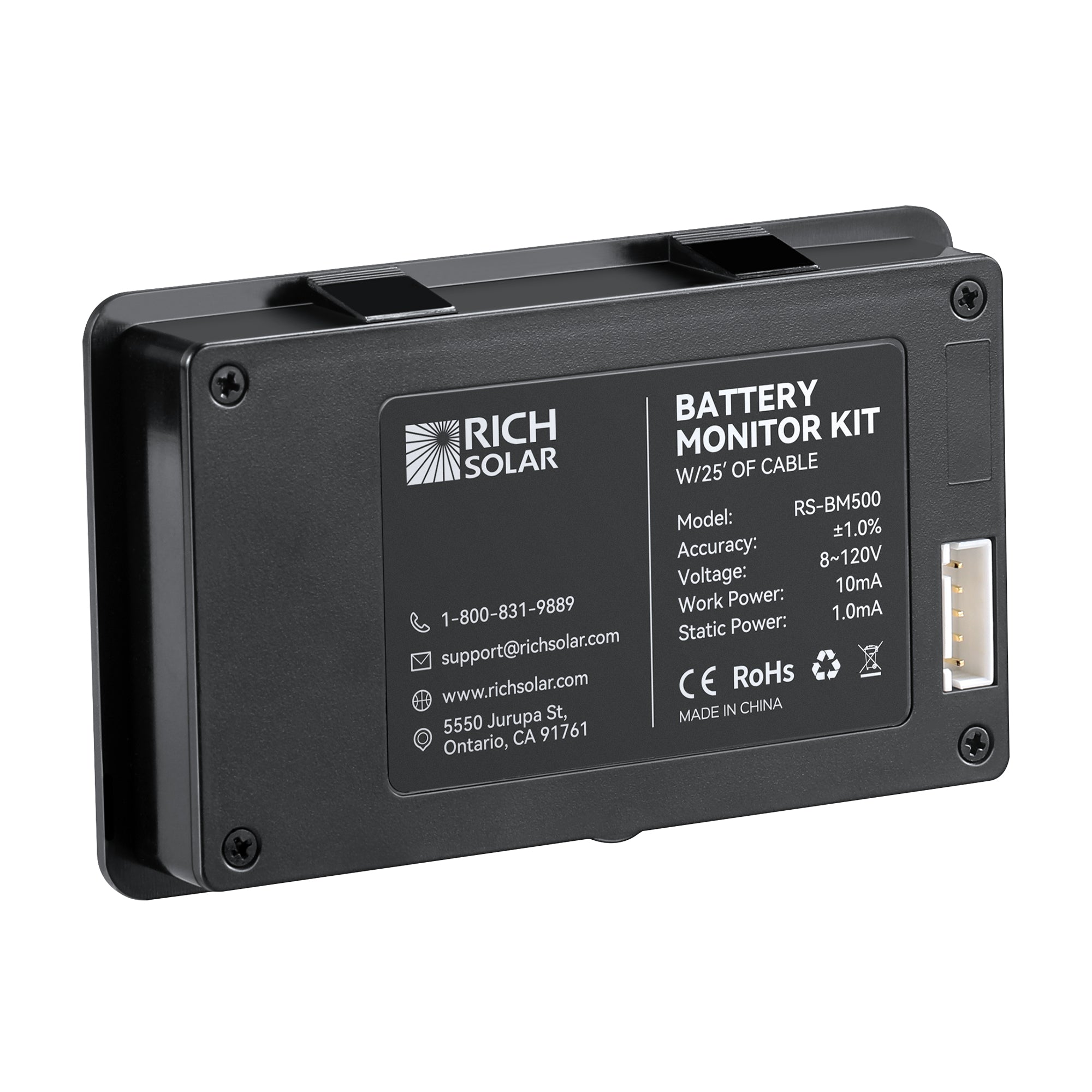

Specifications
Battery Info
Model:
RS-BM500
Battery Voltage Range:
8-120V
Working Dissipation:
10mA
Standby Dissipation:
1mA
Capacity Accuracy:
±1.0%
Voltage Accuracy:
±1.0%
Current Accuracy:
±1.0%
Backlight On Current:
80mA
Capacity Setting Value:
0-500A
Current Range:
0.1-9999Ah
