RICH SOLAR

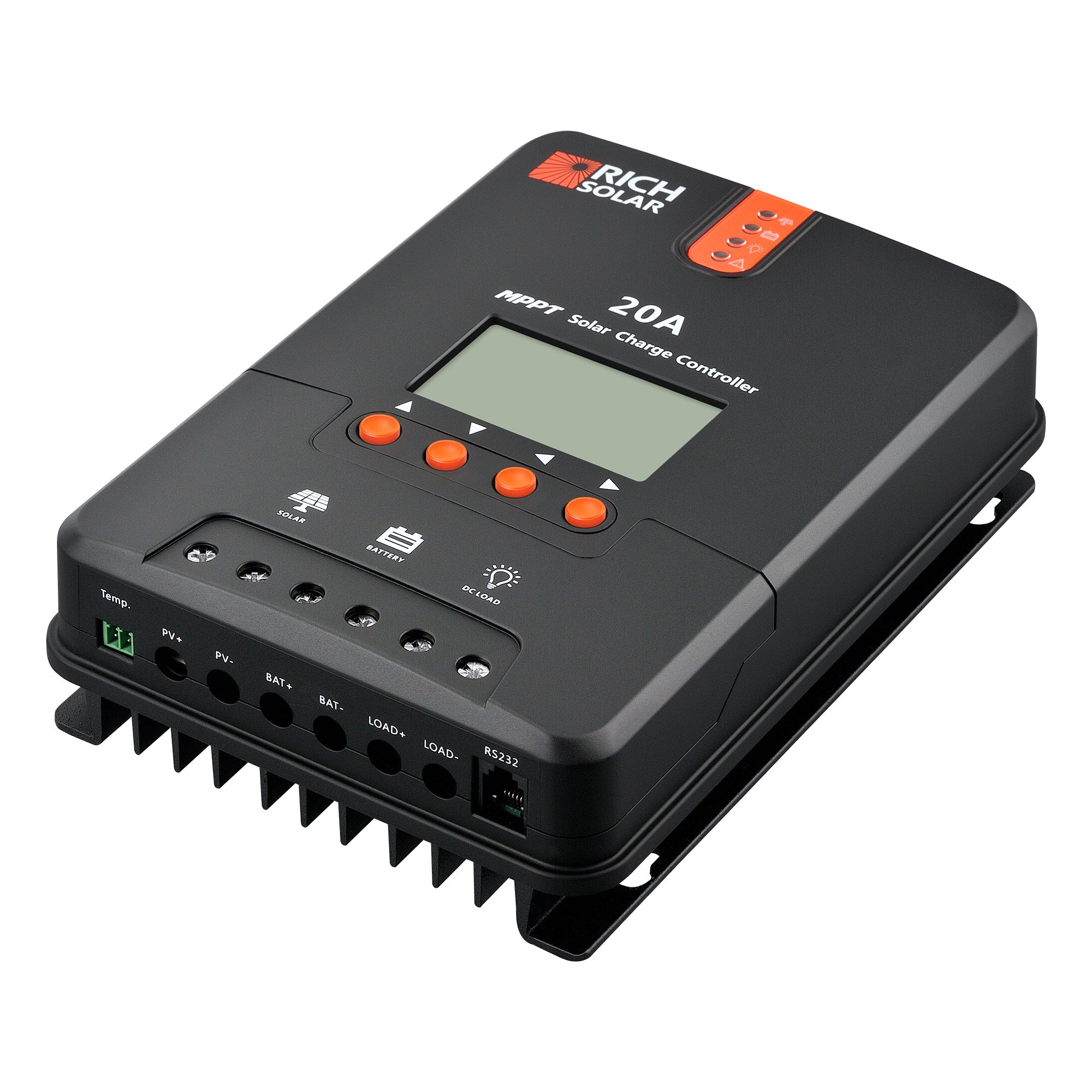

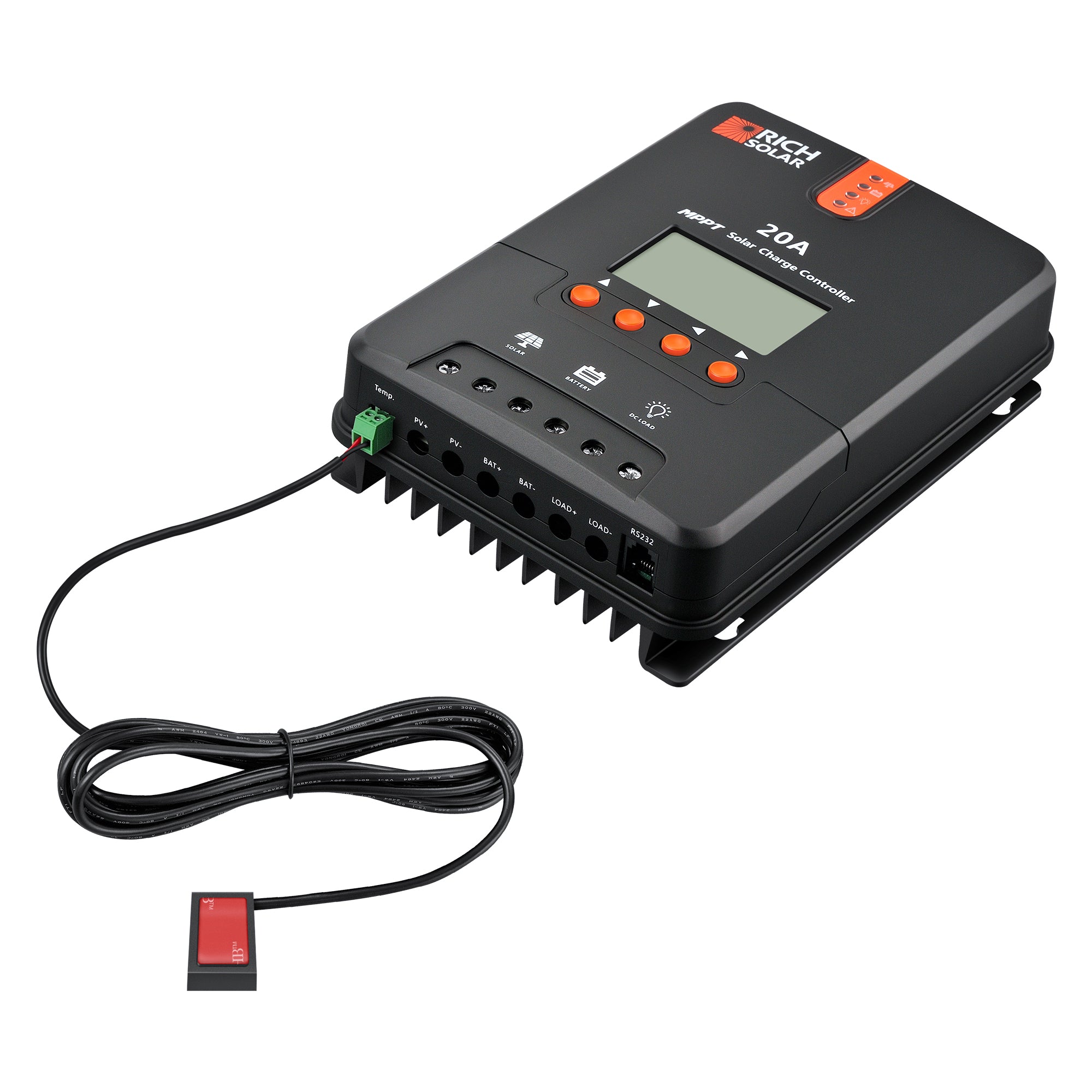

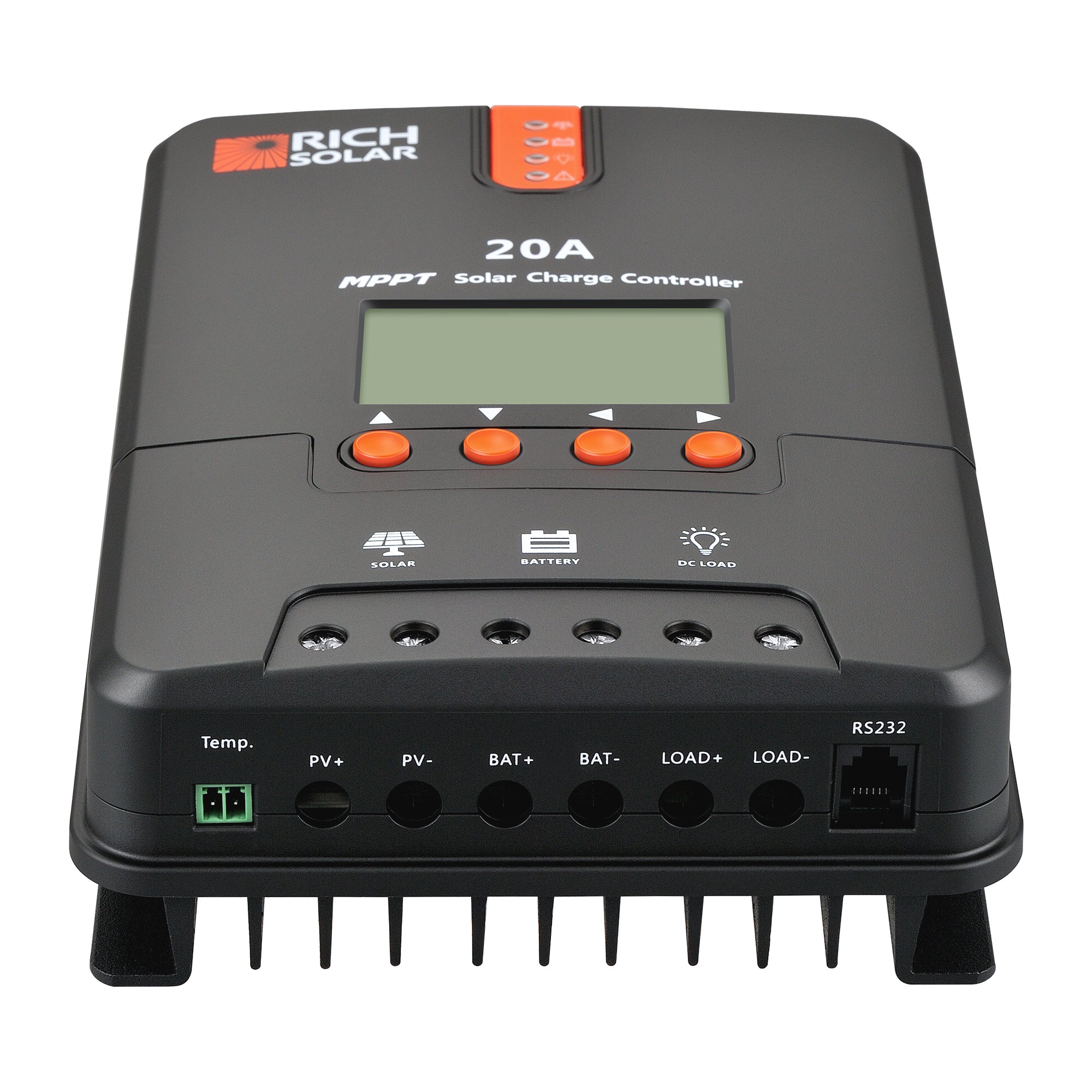

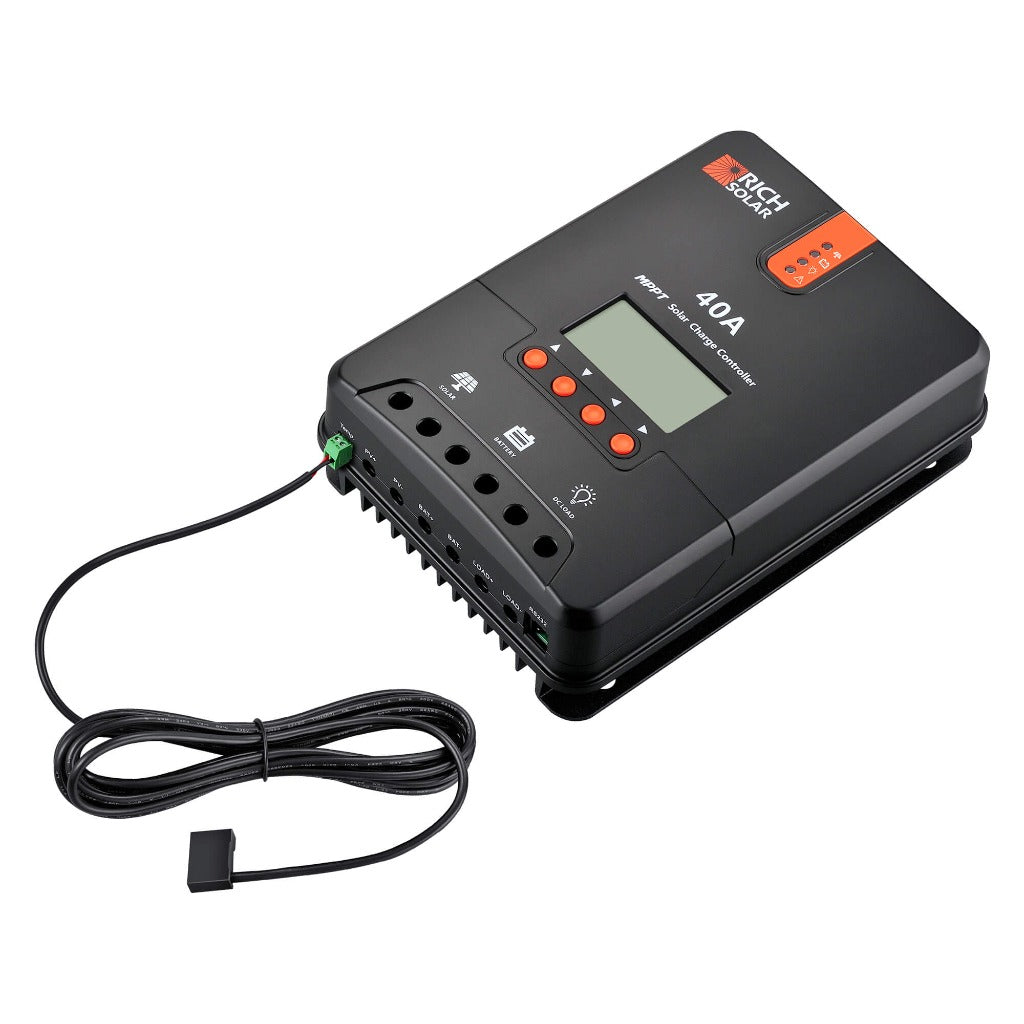

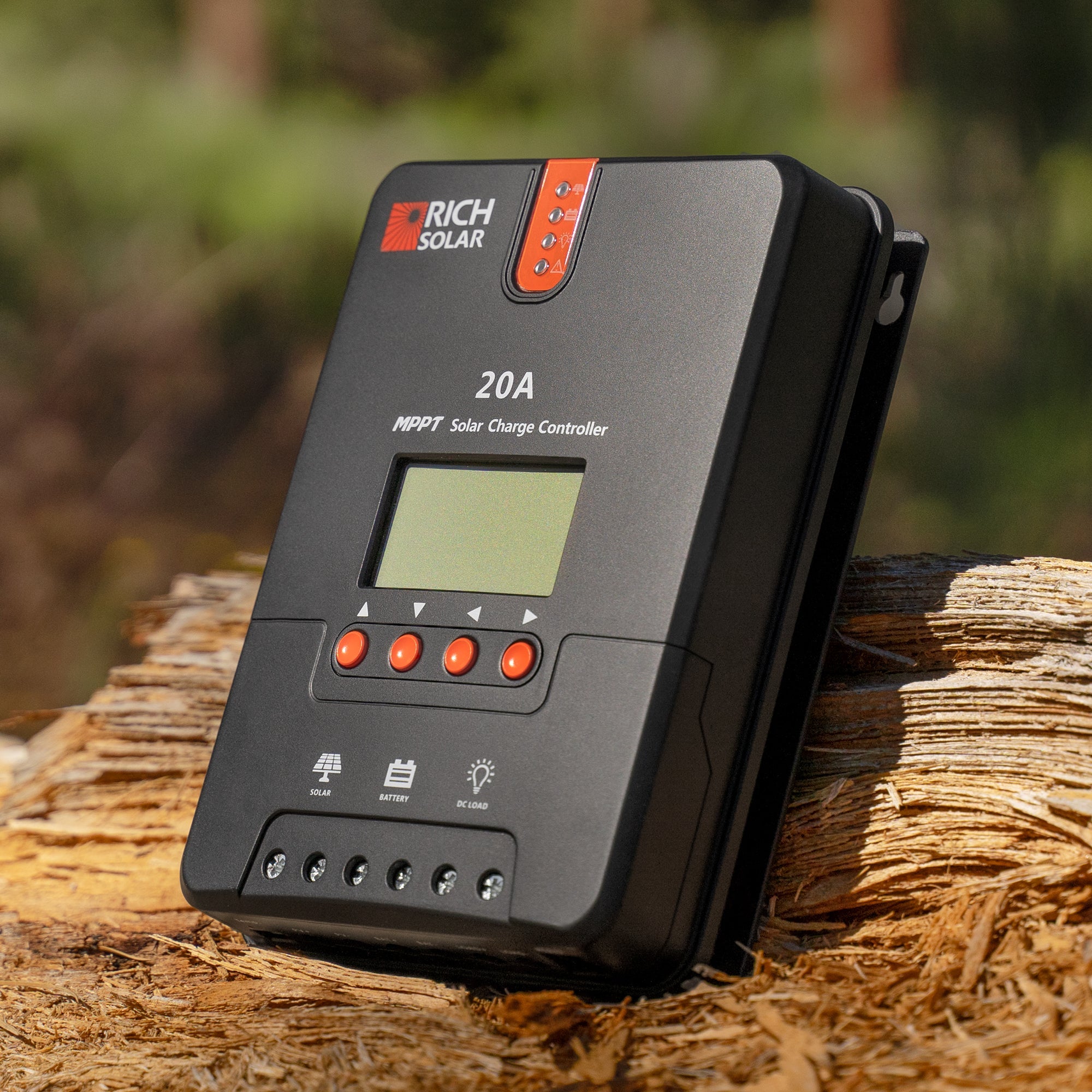

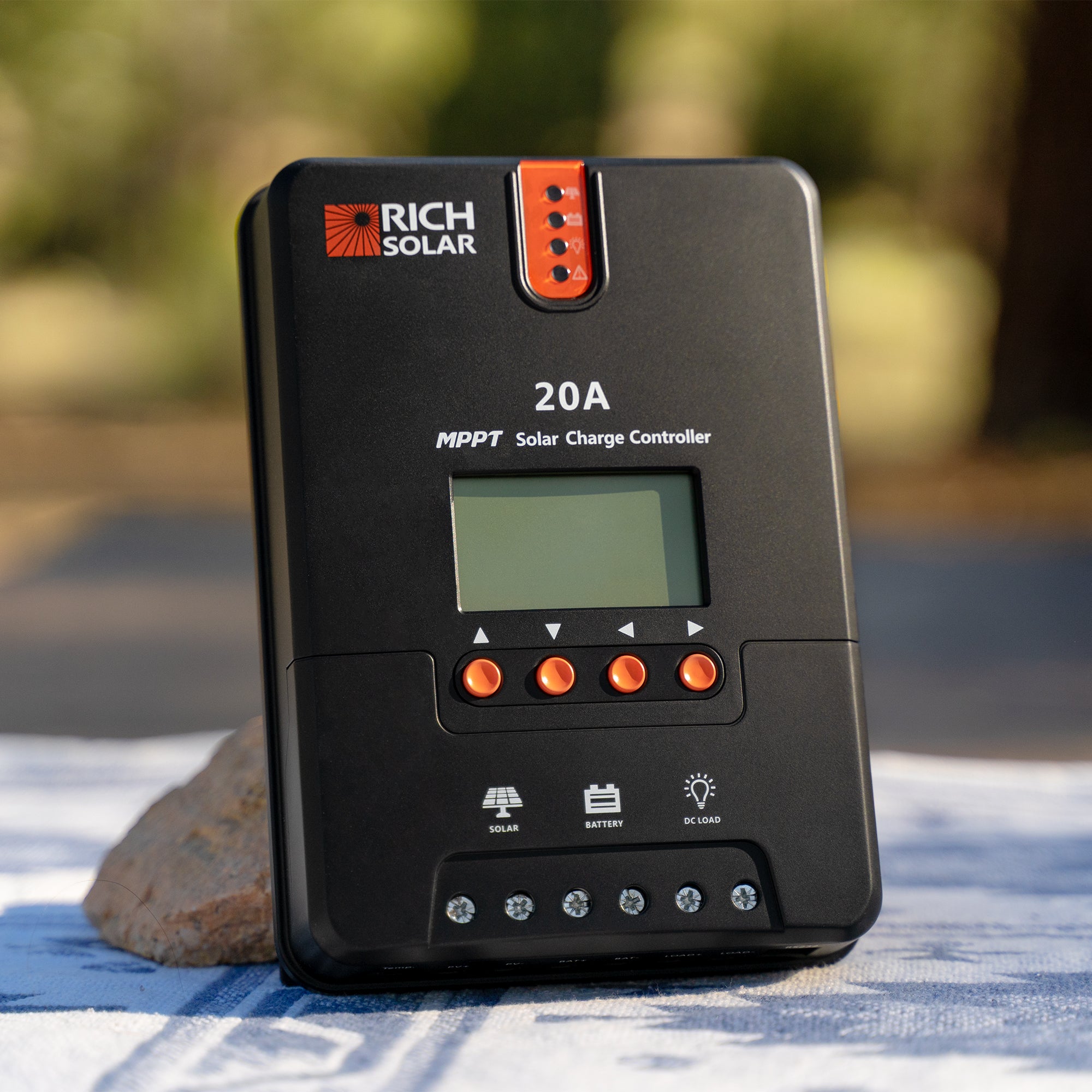

MPPT Solar Charge Controller | 20A, 40A, 60A
SKU: RS-MPPT20
$89.99
/
Shipping calculated at checkout.
Shipping
This product is shipped directly from the manufacturer. Shipping times may vary, and the manufacturer's warranty applies.
Specifications & Downloads
Features
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries

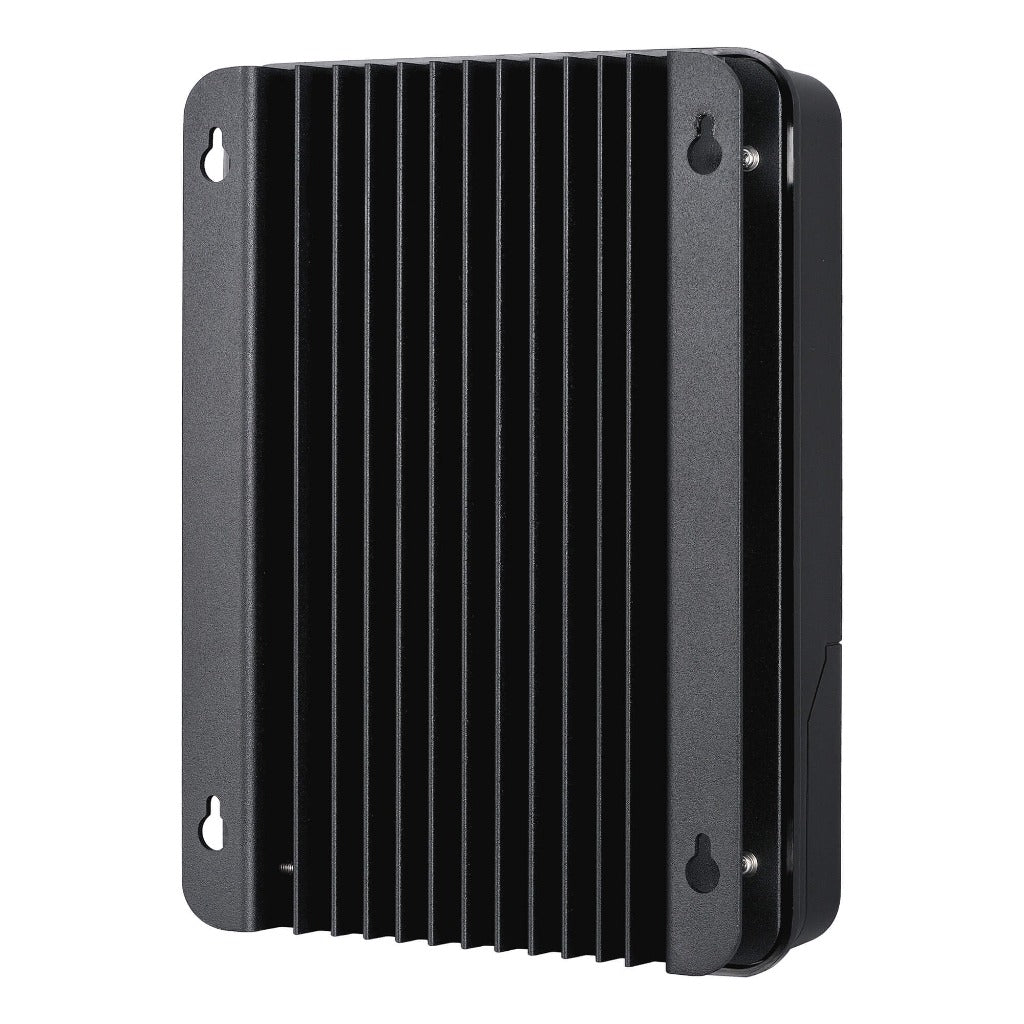

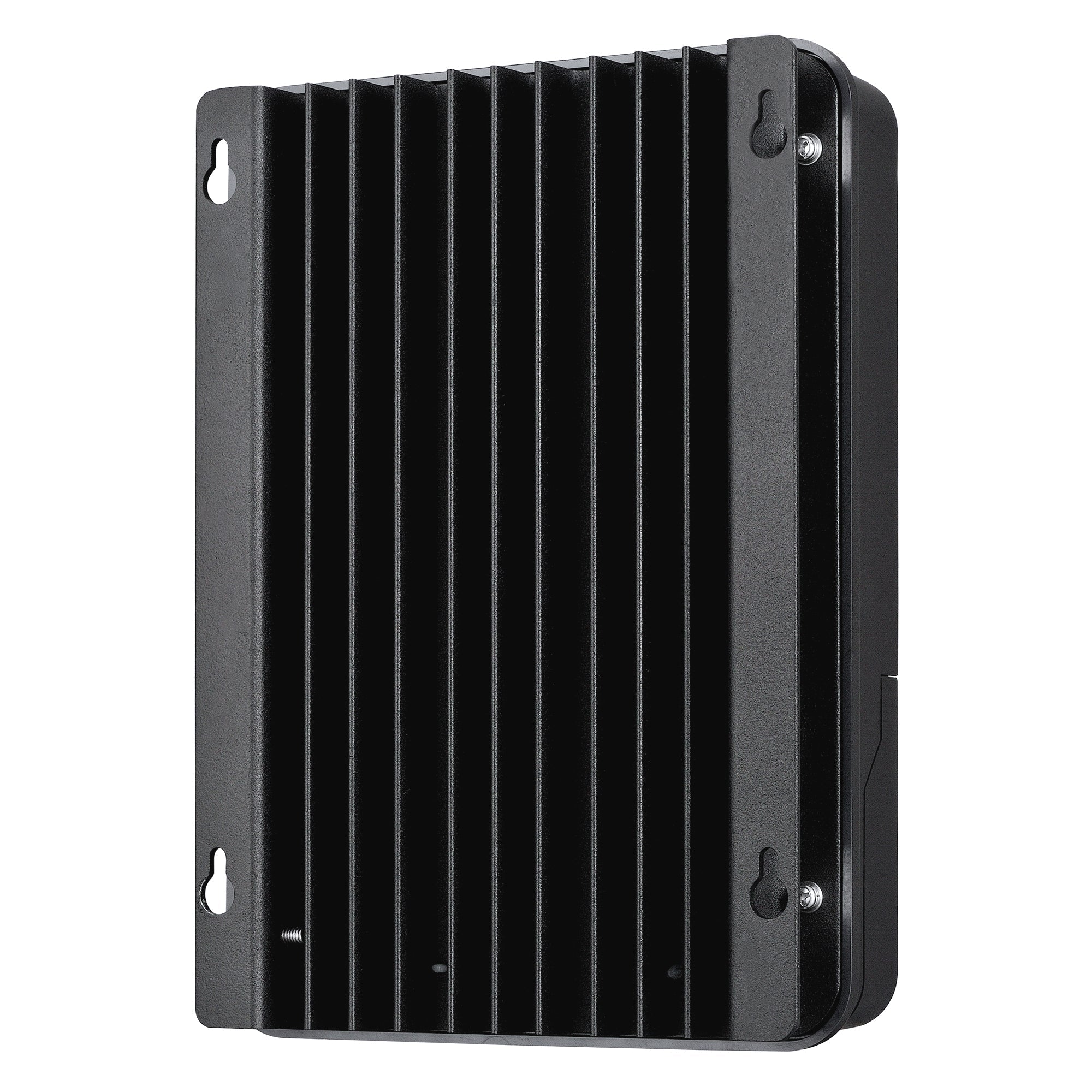

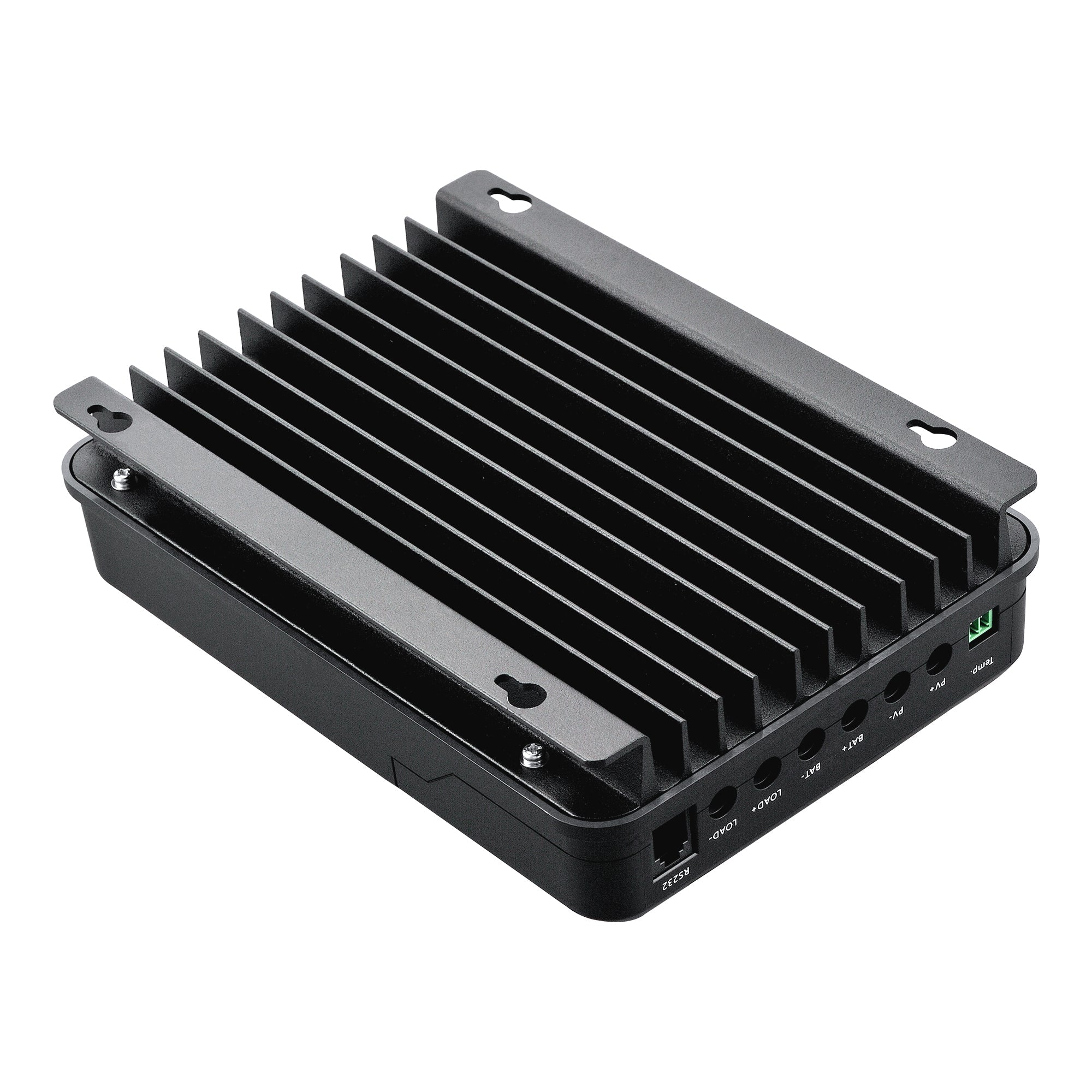

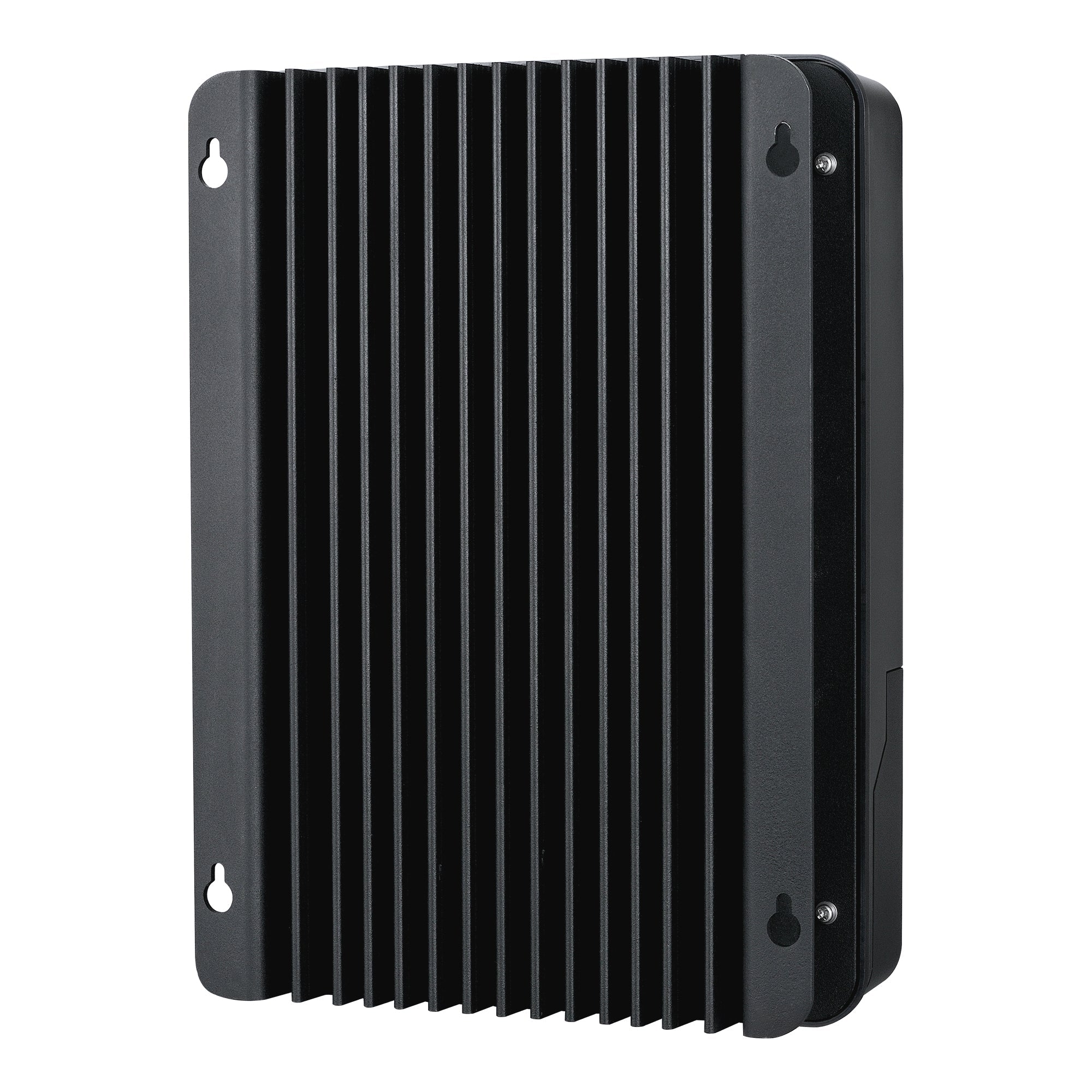

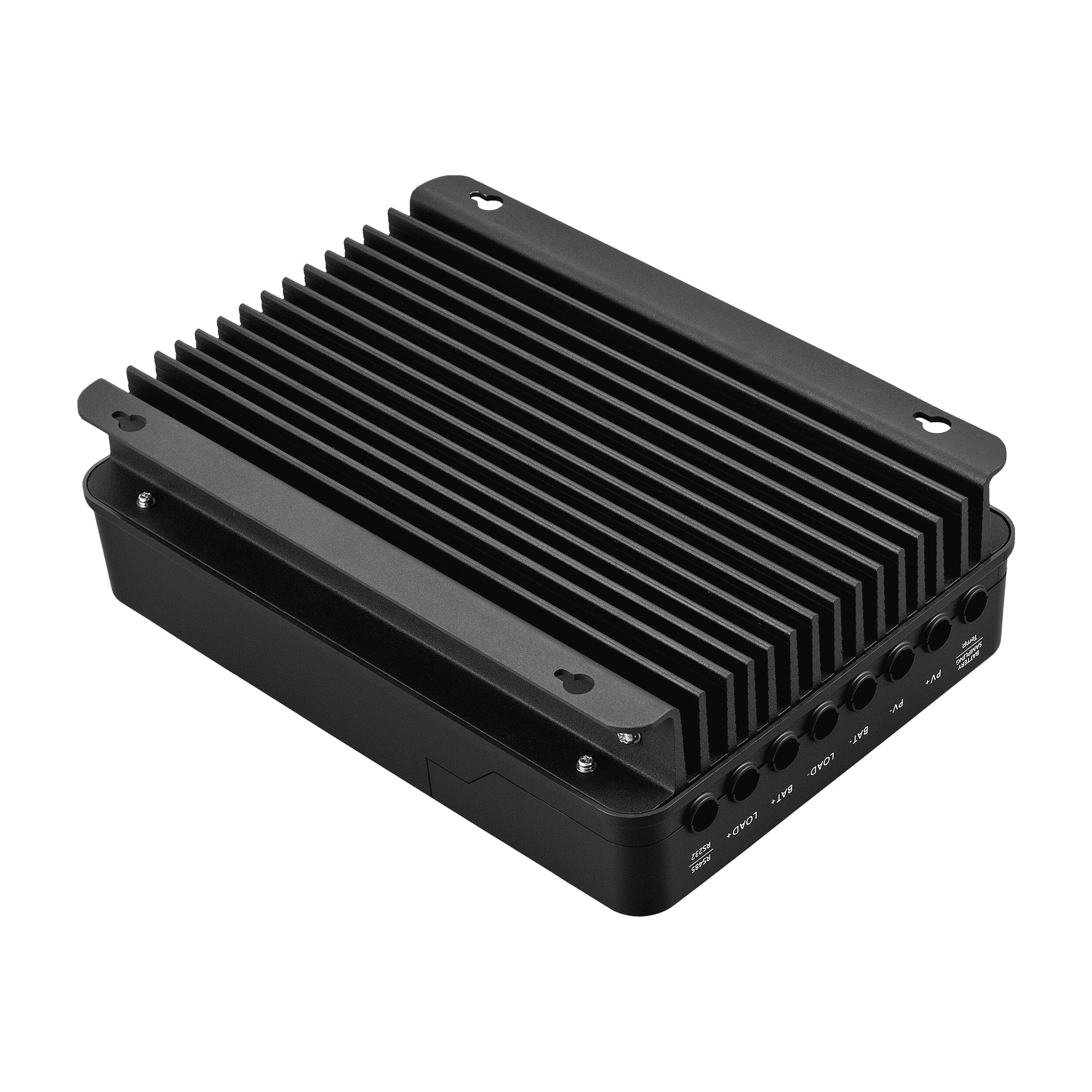

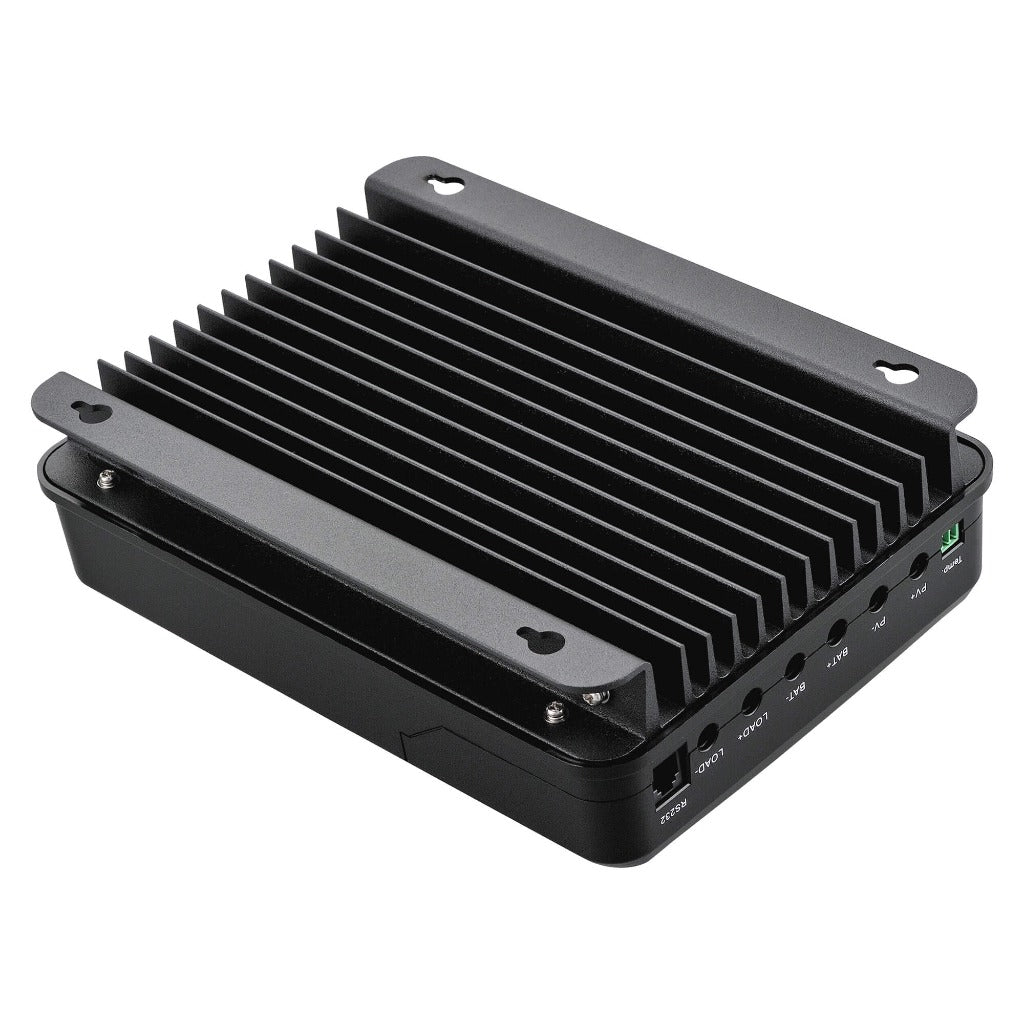

- Die-cast aluminum design allows for efficient heat dissipation

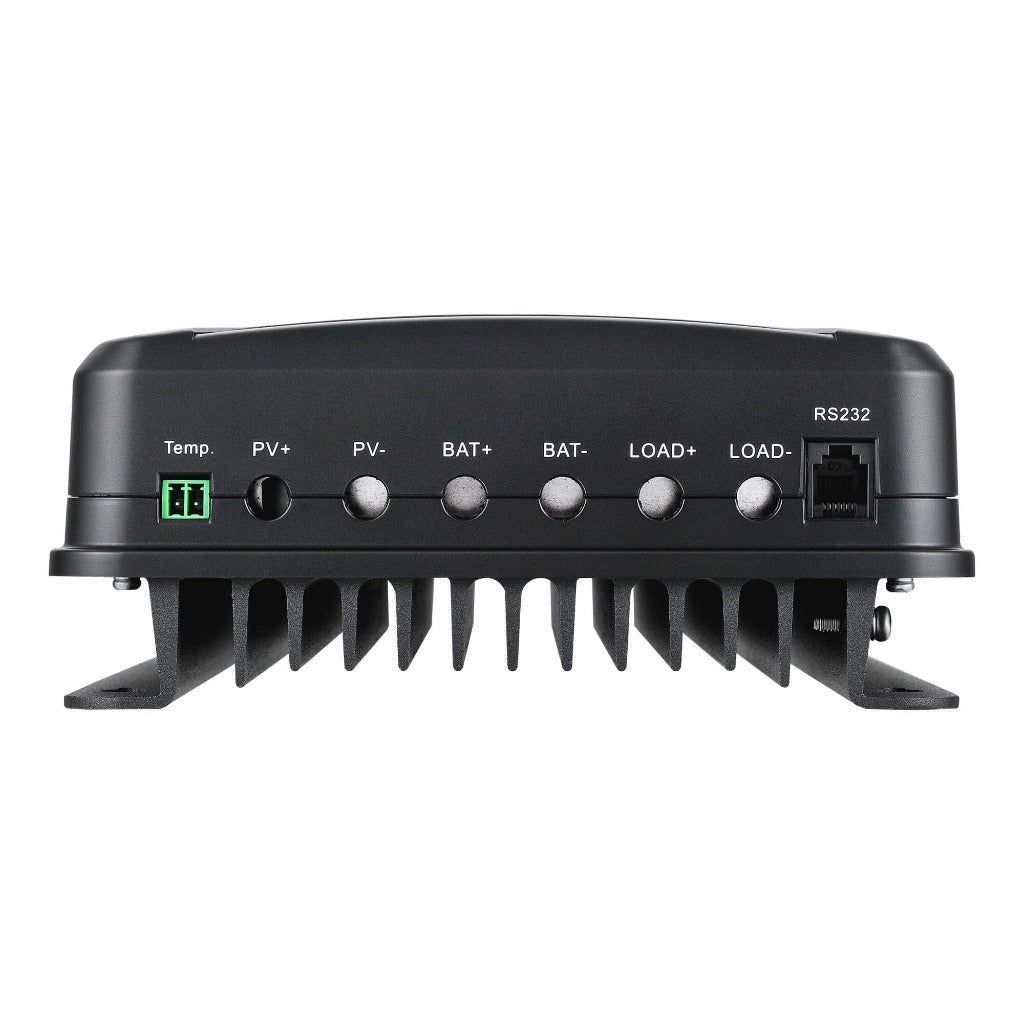

- RS232 port to communicate with BT-1 Bluetooth module

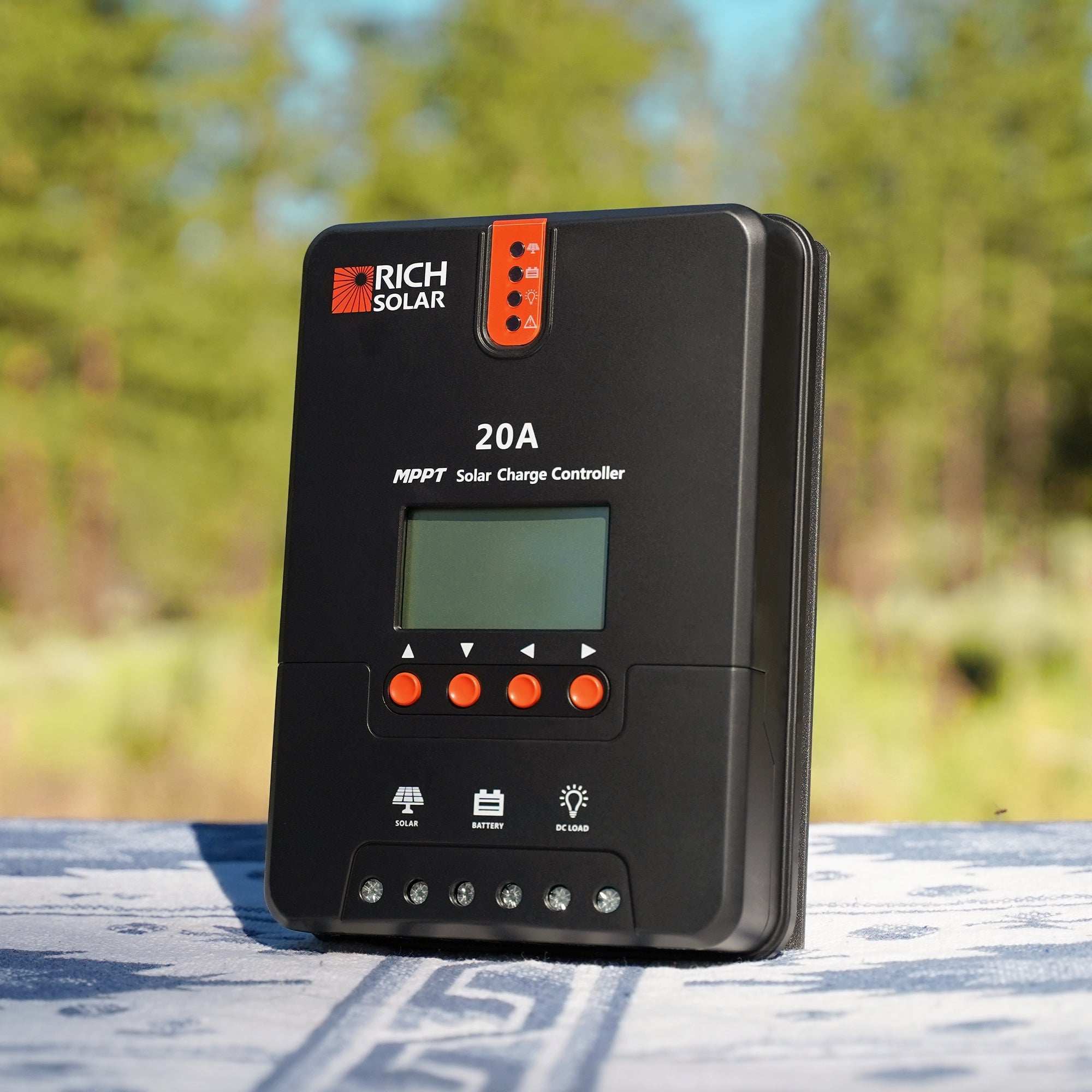

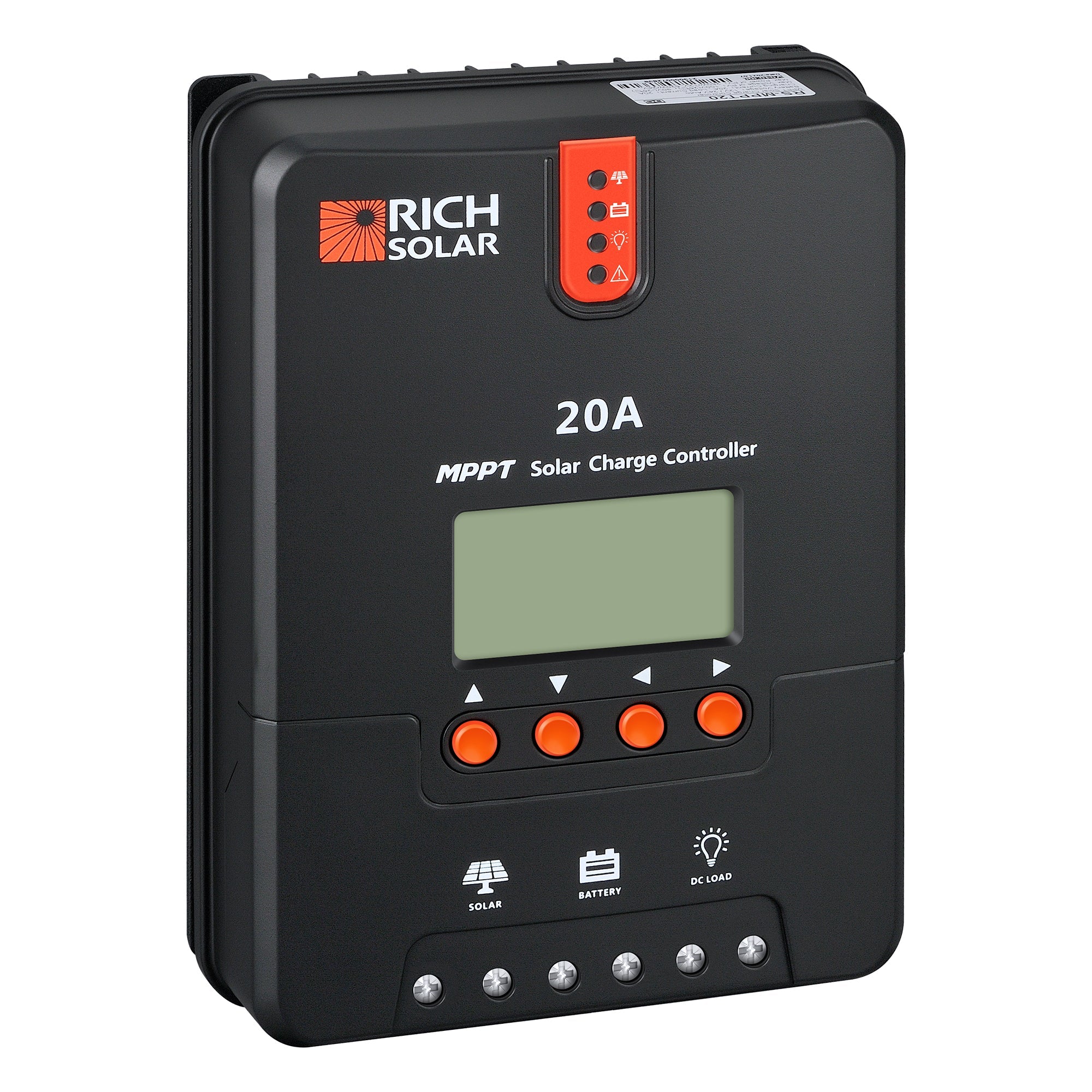

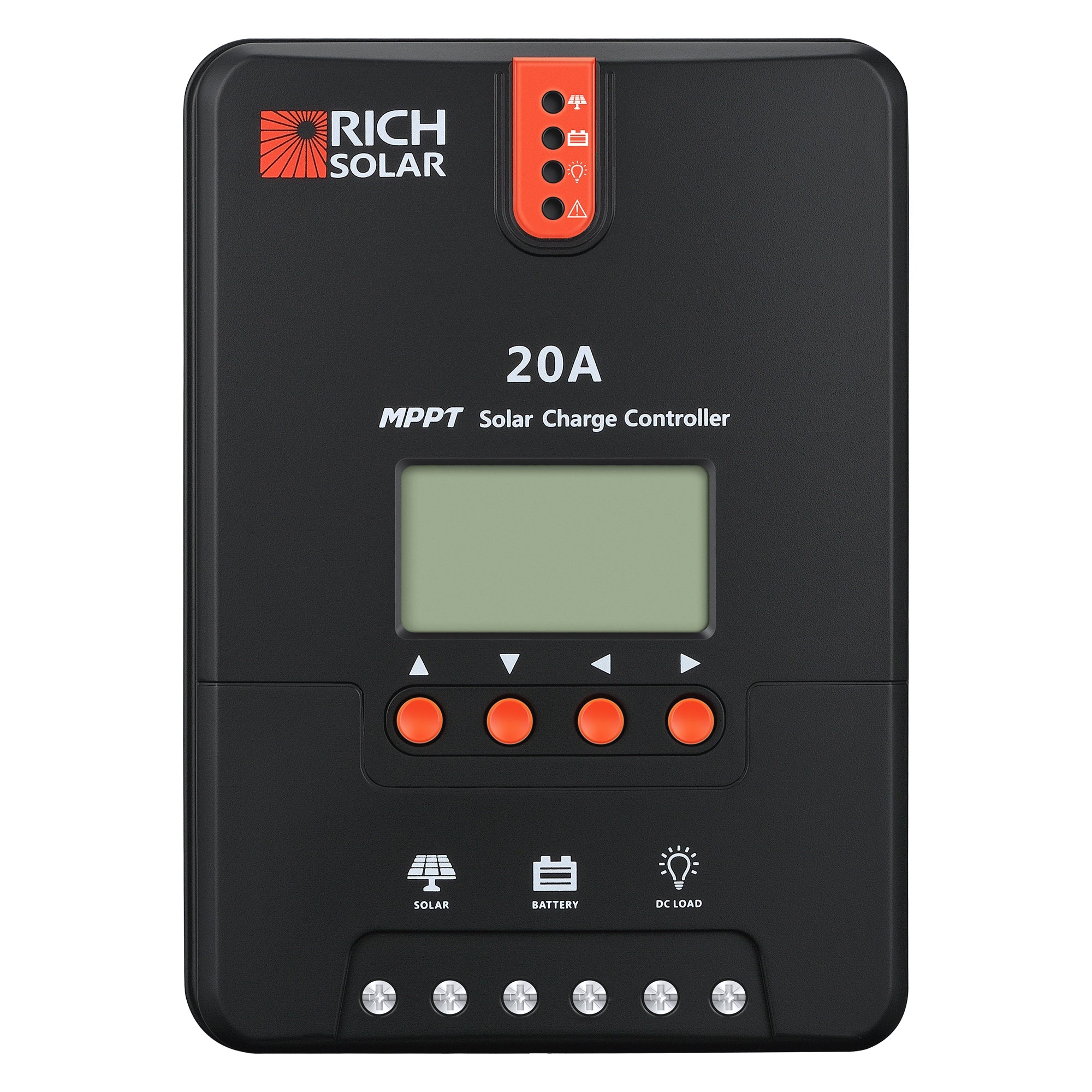

Specifications
- Nominal System Voltage: 12V/24V Auto Recognition
- Rated Battery Current: 20A
- Rated Load Current: 20A
- Max. PV Input Short Current: 25A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100 VDC
- Discharge Circuit Voltage Drop: ≤0.15 V
- Max. Photovoltaic System Input Power: 260W/12V, 520W/24V
- Conversion Efficiency: ≤98%
- MPPT Tracking Efficiency: >99%
- Operating Temperature: -35℃ to +45℃
- Protection Degree: IP32
- Net Weight: 3.08 lb
- Overall Dimensions: 8.27 x 5.94 x 2.34 in
Features
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.

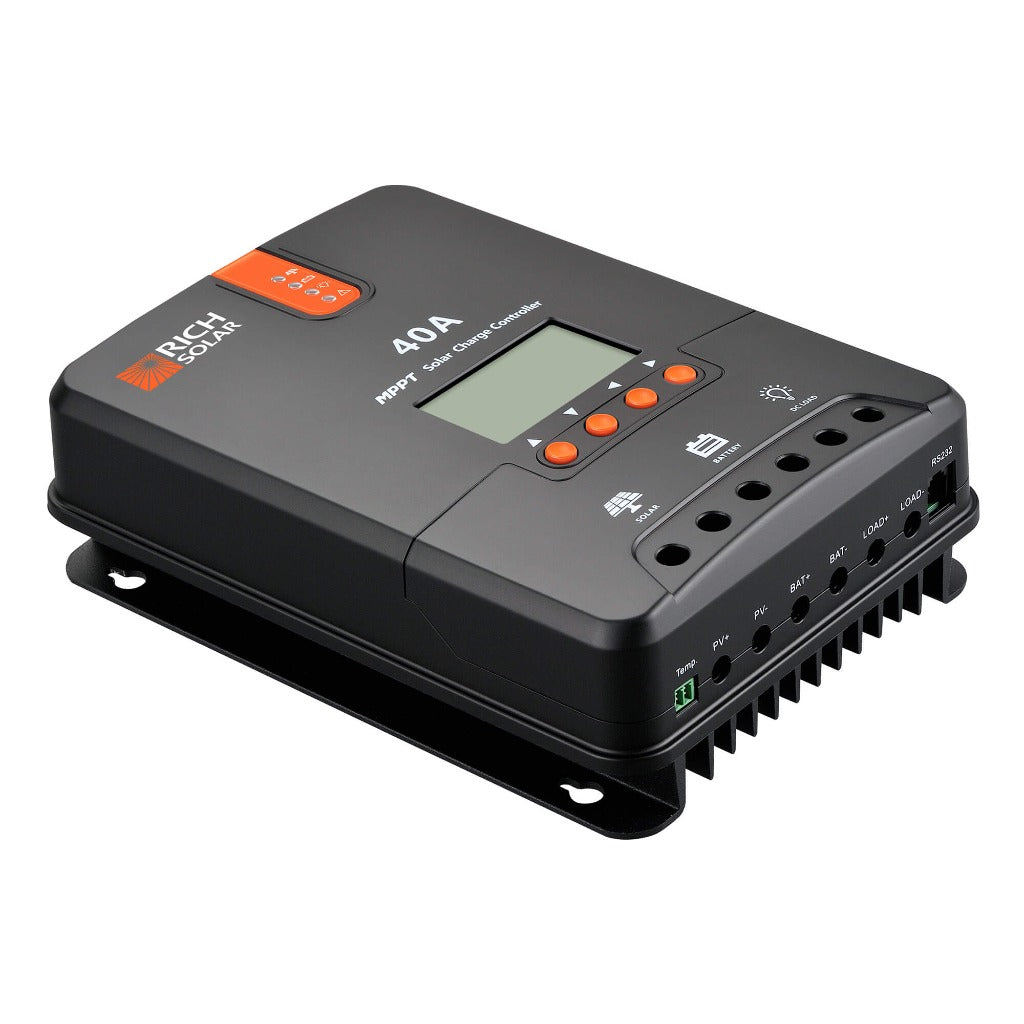

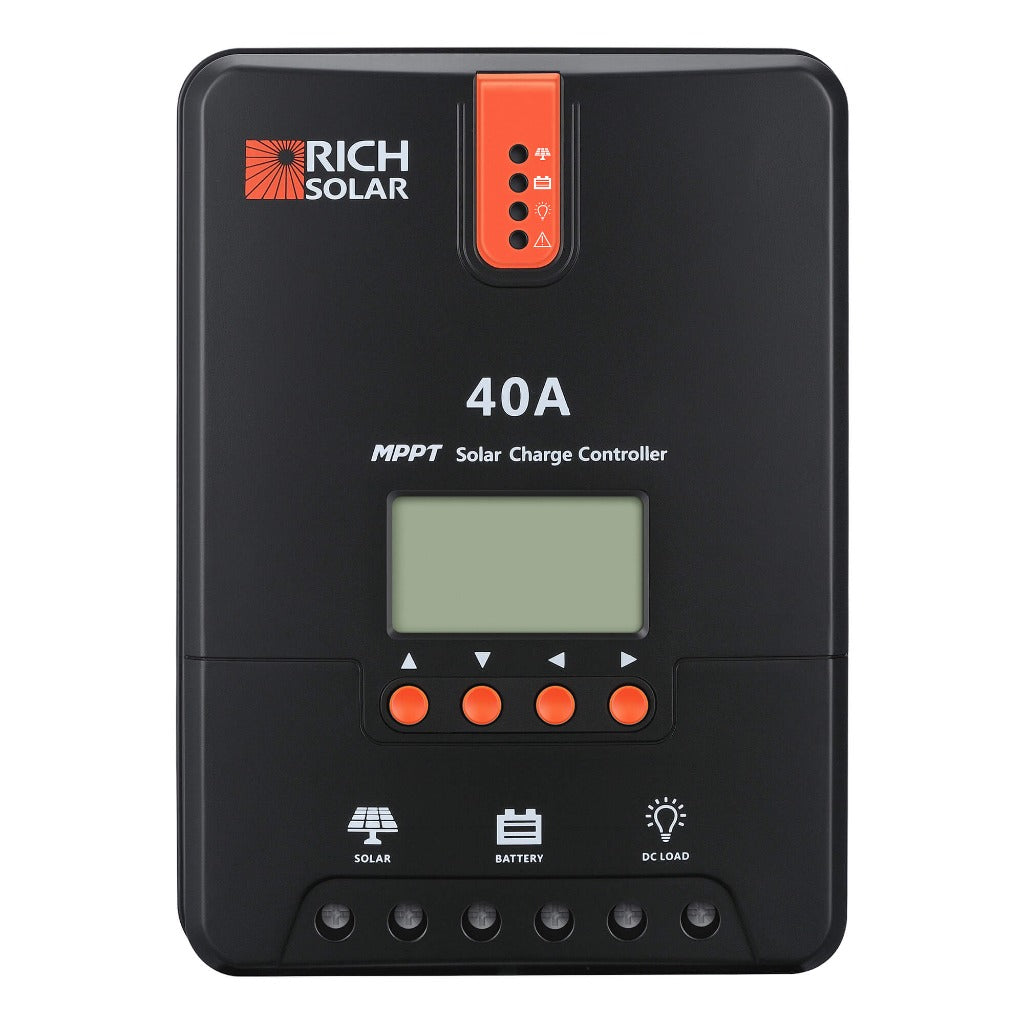

Specifications

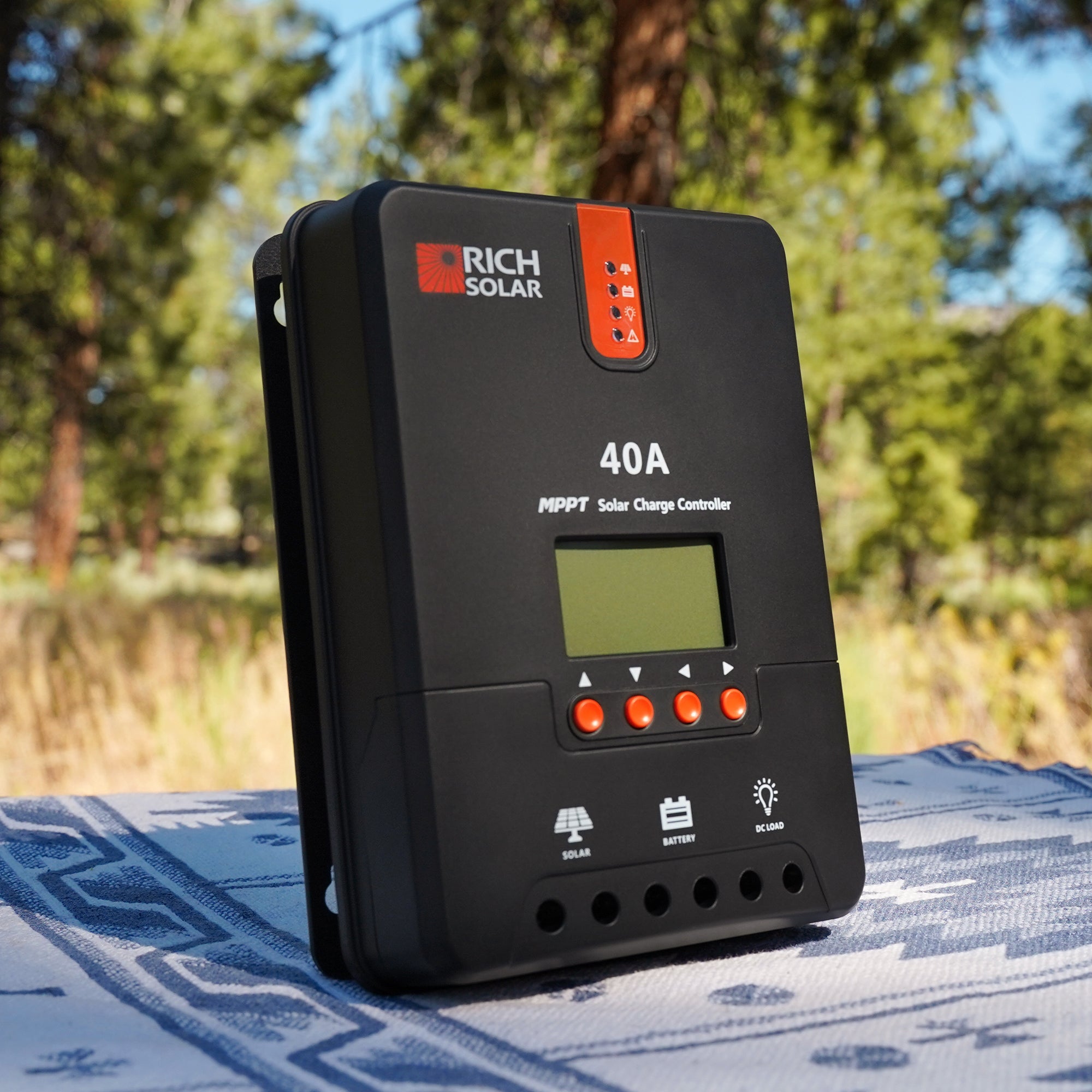

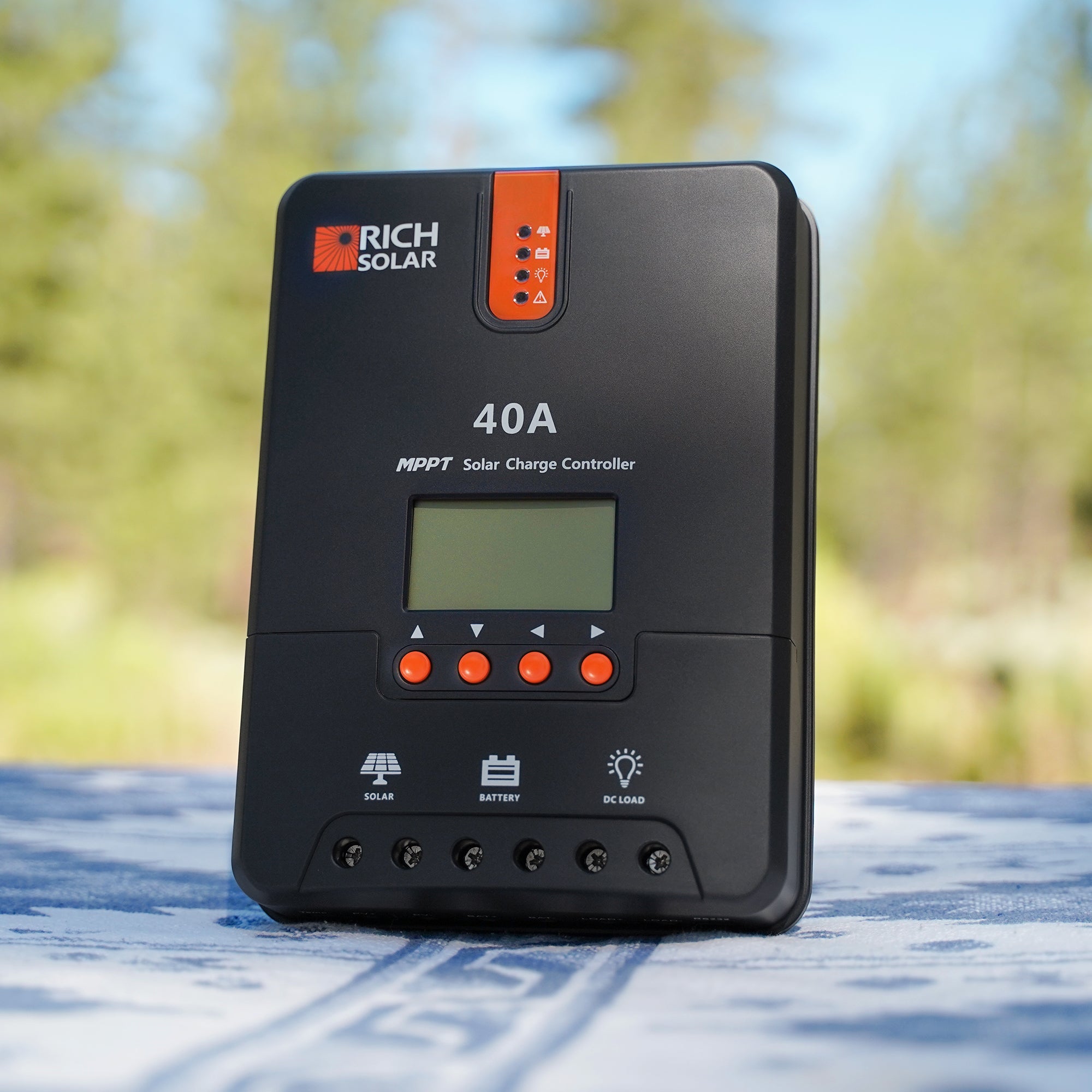

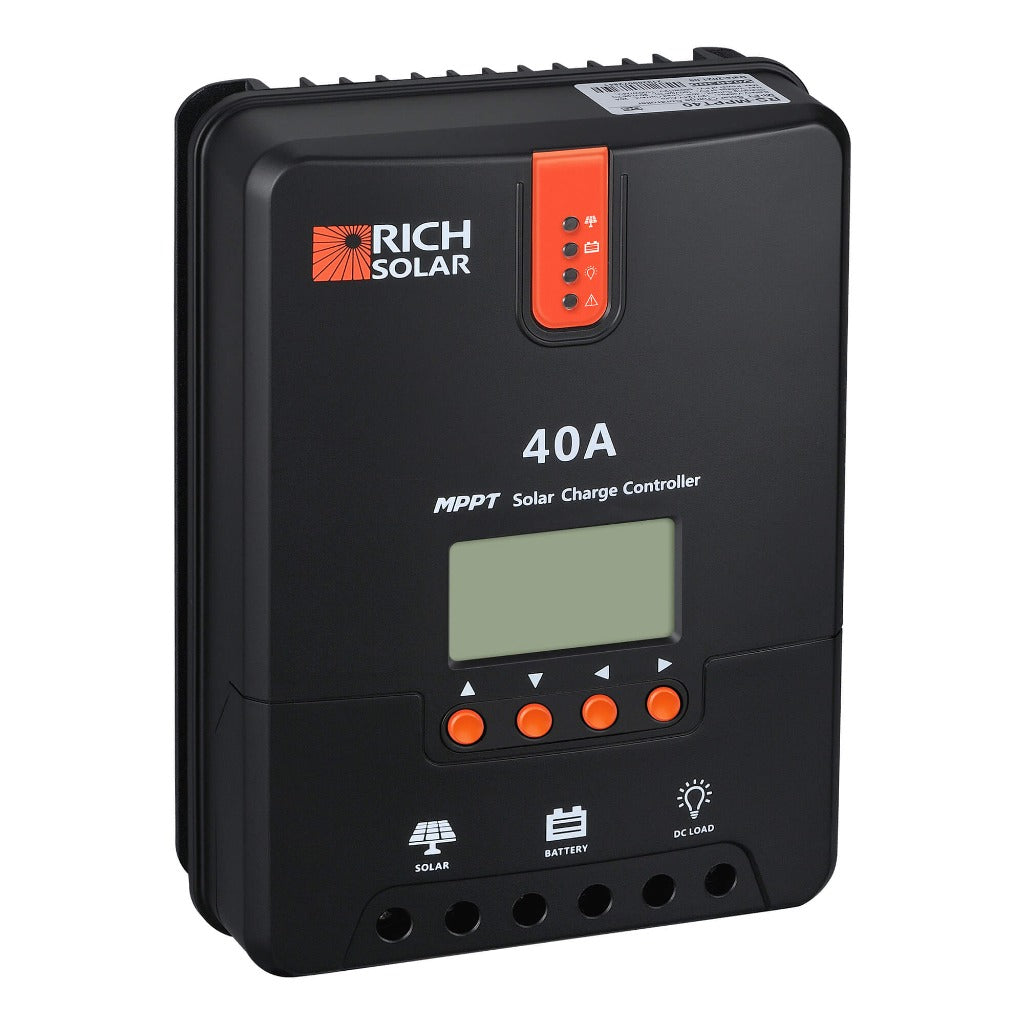

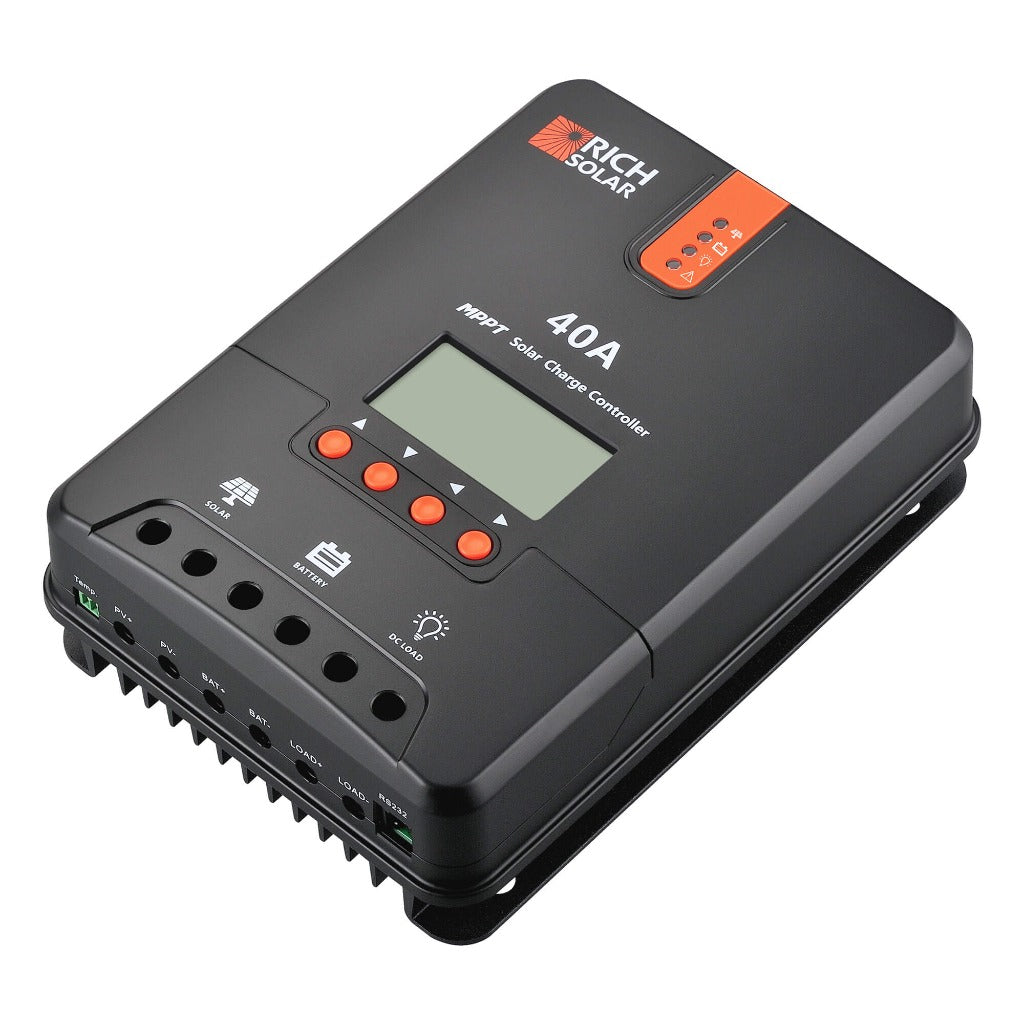

- Rated Battery Current: 40A
- Rated Load Current: 20A
- Max. PV Input Short Current: 50A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100VDC
- Charge Circuit Voltage Drop: ≤0.26V
- Discharge Circuit Voltage Drop: ≤0.15V
- Working Temperature: -31°F to +113°F
- Max Terminal Size: 8AWG
- Rated Load Current: 10% to 90% NC
- Overall Dimensions: 9.37 x 6.81 x 2.85 in
- Net Weight: 4.41 lb
Features
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.

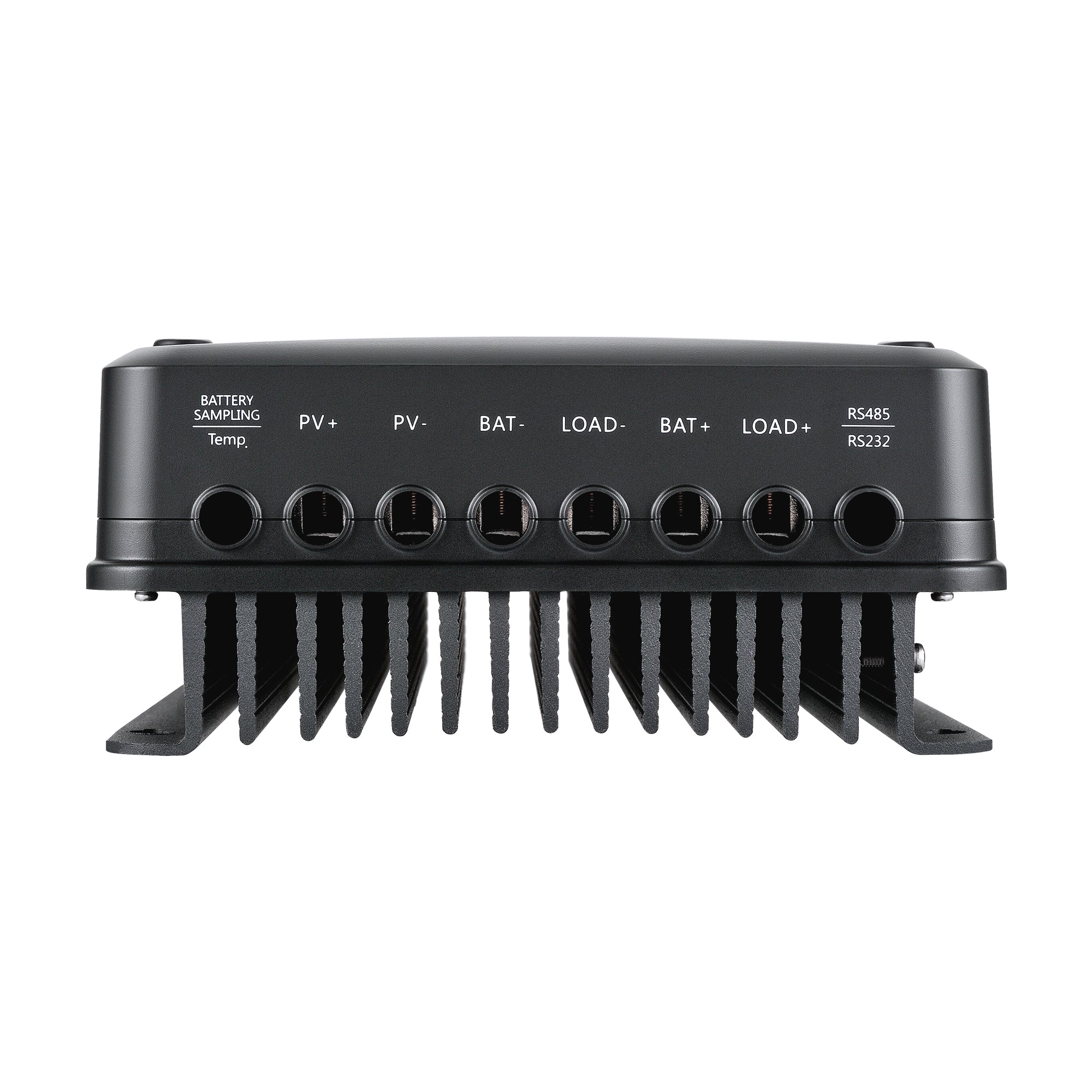

- RS232 port for communicating with BT-1 Bluetooth module.

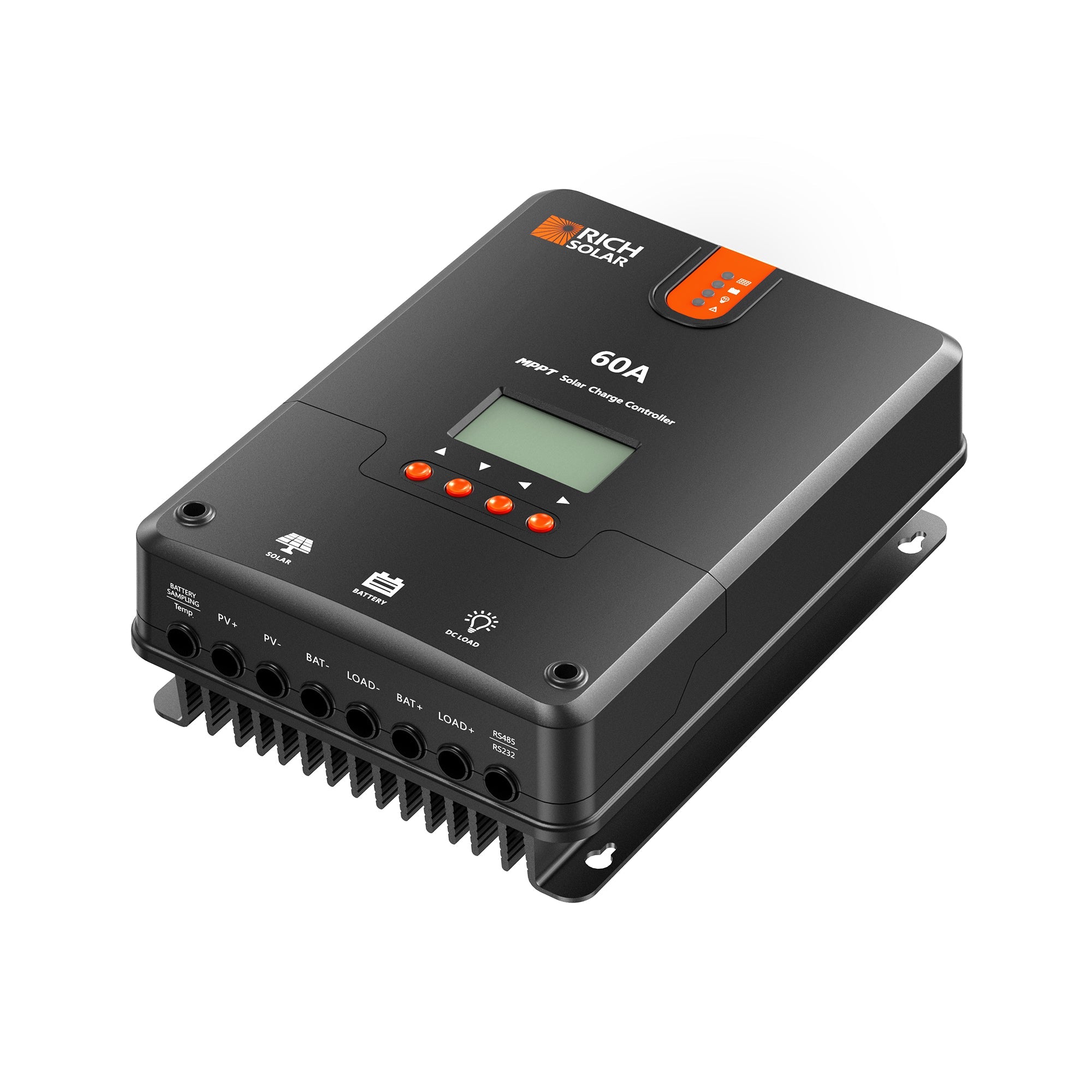

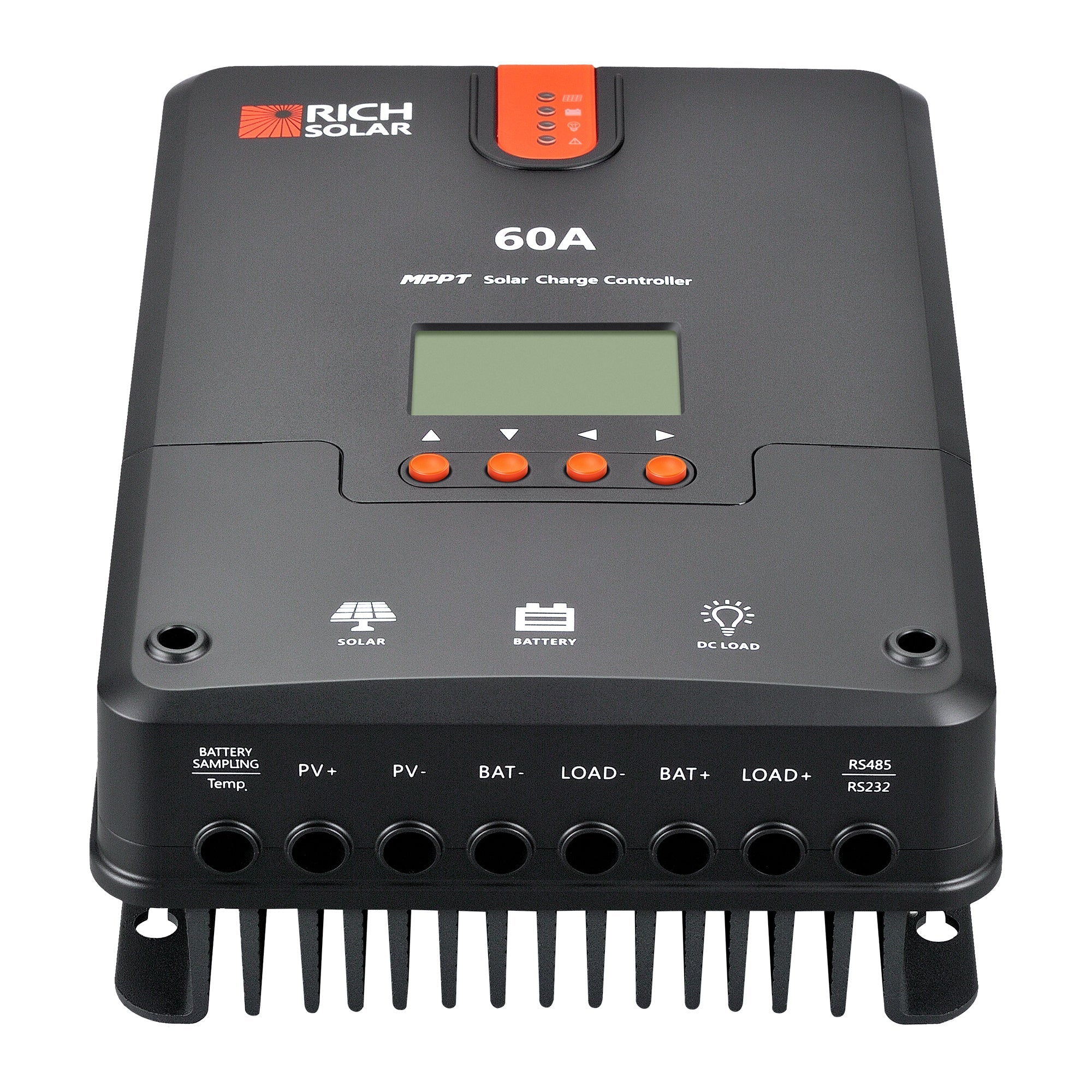

Specifications

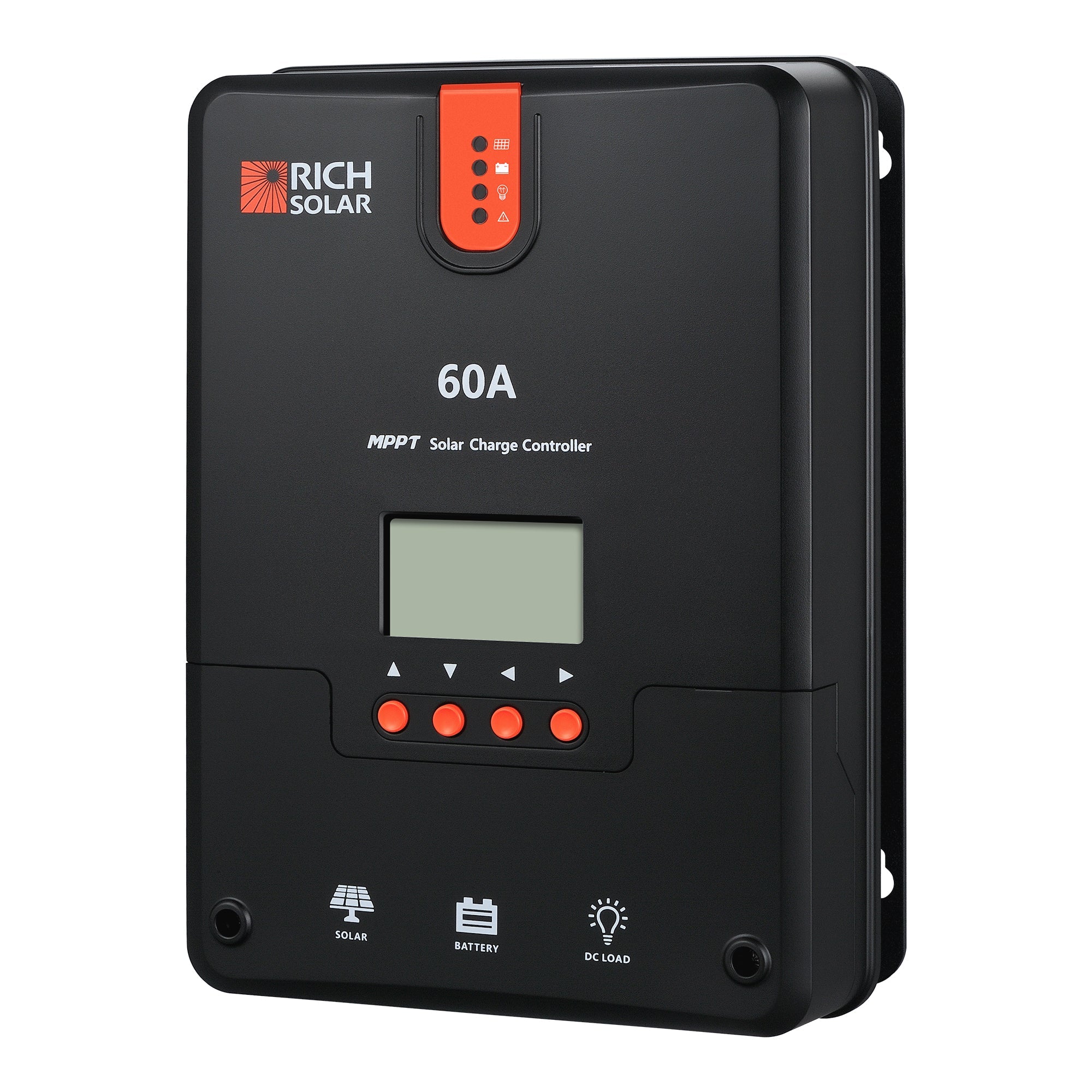

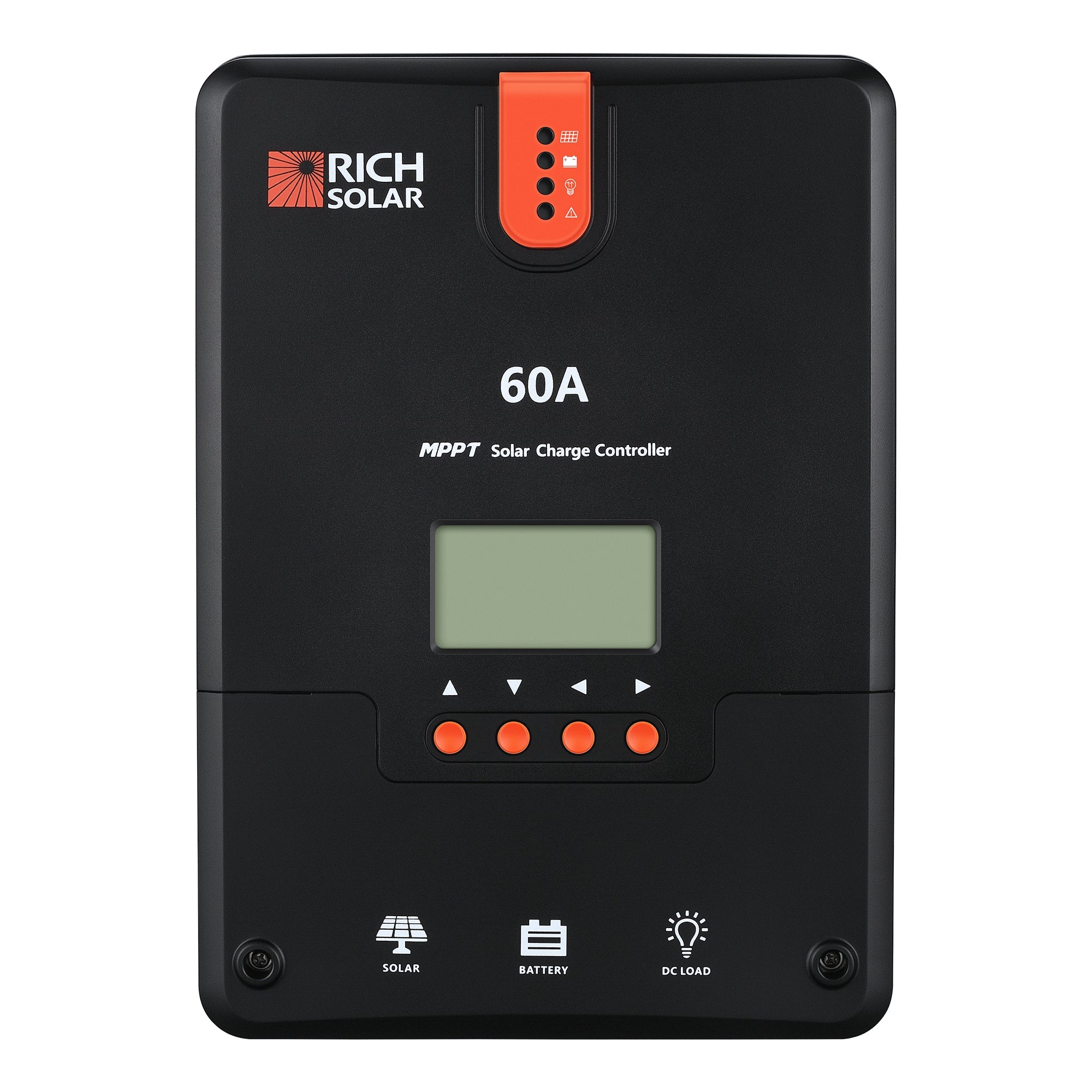

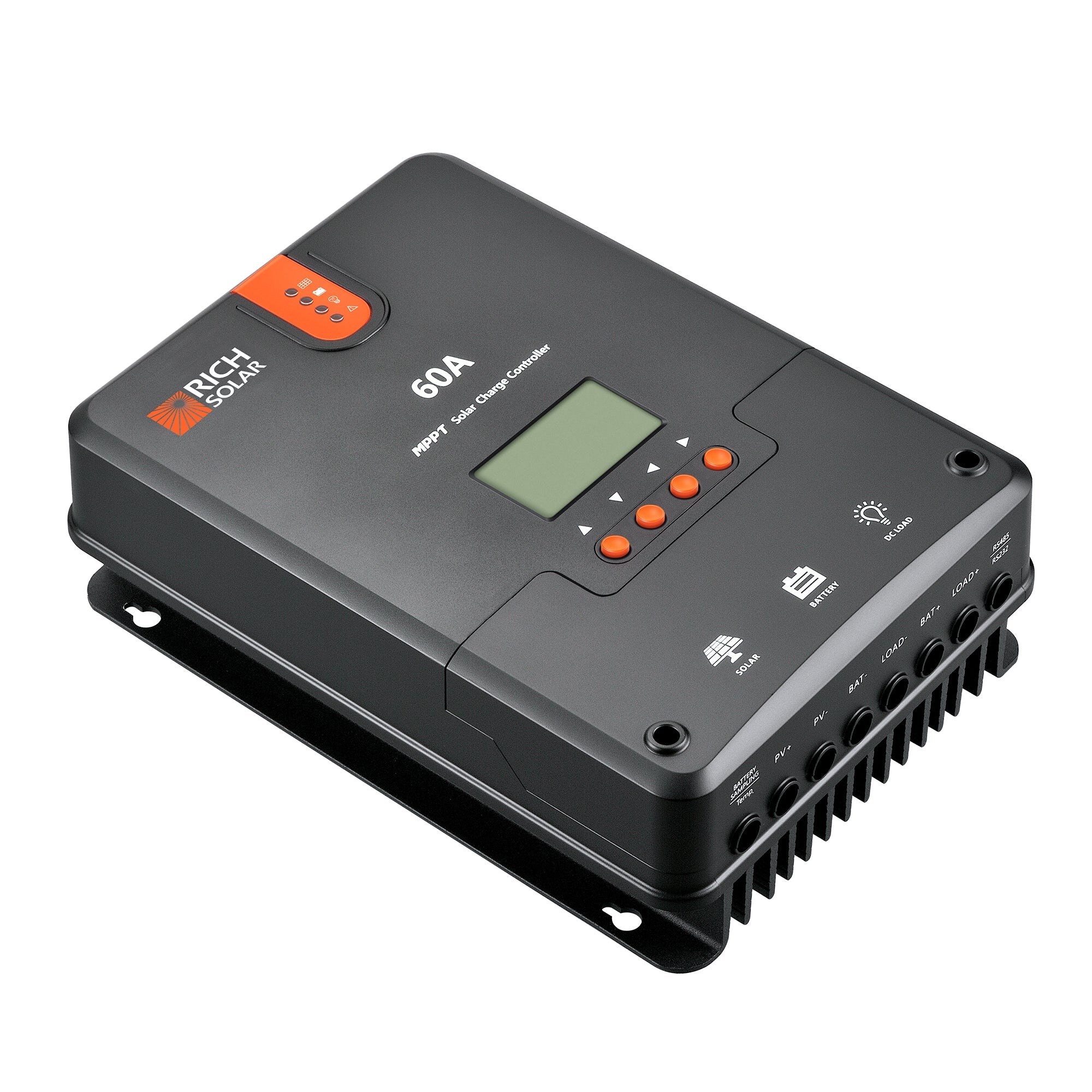

- Rated Battery Current: 60A
- Rated Load Current: 20A
- Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
- Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
- Charge Circuit Voltage Drop: ≤0.26V
- Discharge Circuit Voltage Drop: ≤0.15V
- Operating Temperature: -31°F to 113°F
- Max Terminal Size: <11mm
- Overall Dimensions: 11.2 x 8.1 x 3.7 in
- Net Weight: 7.94 lb
