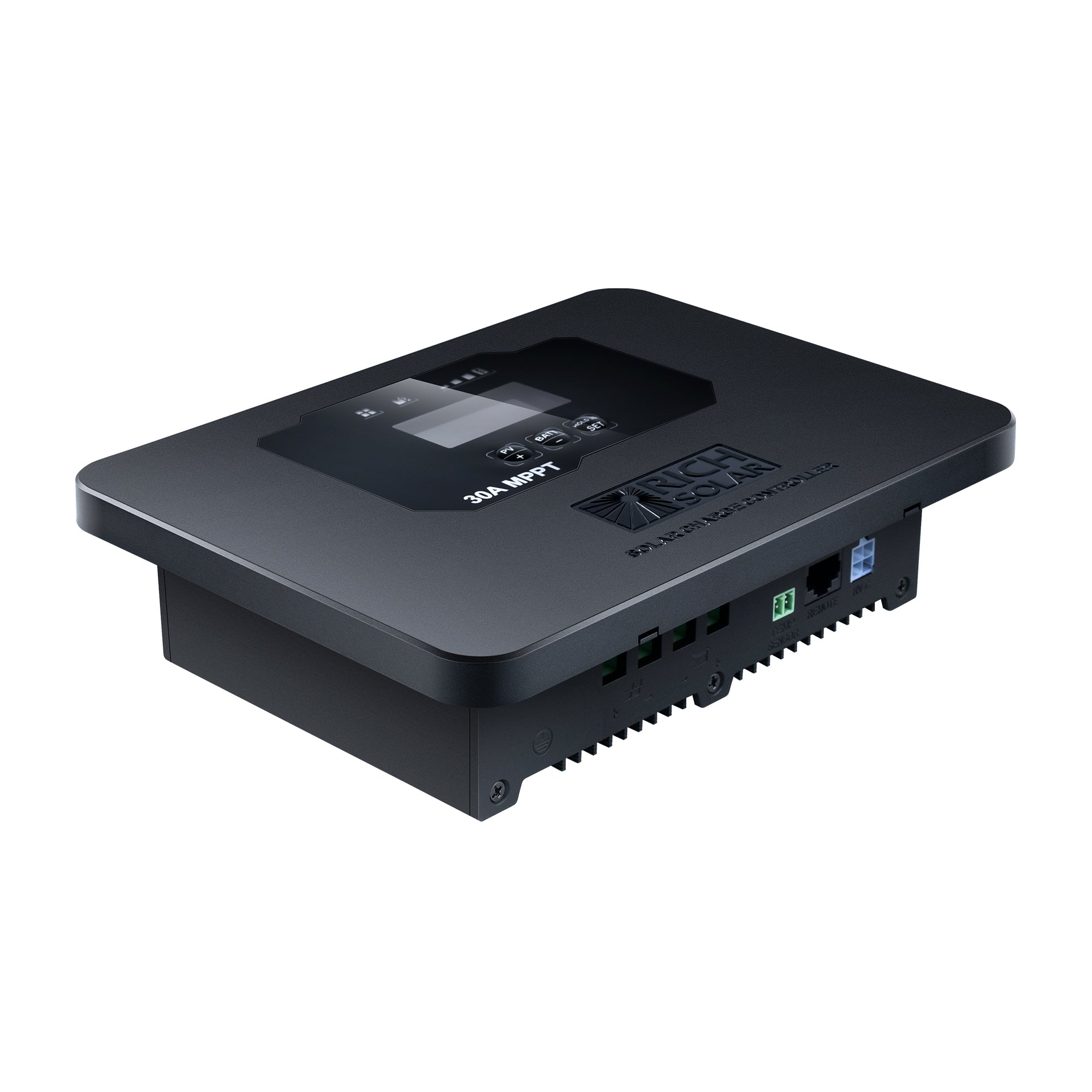

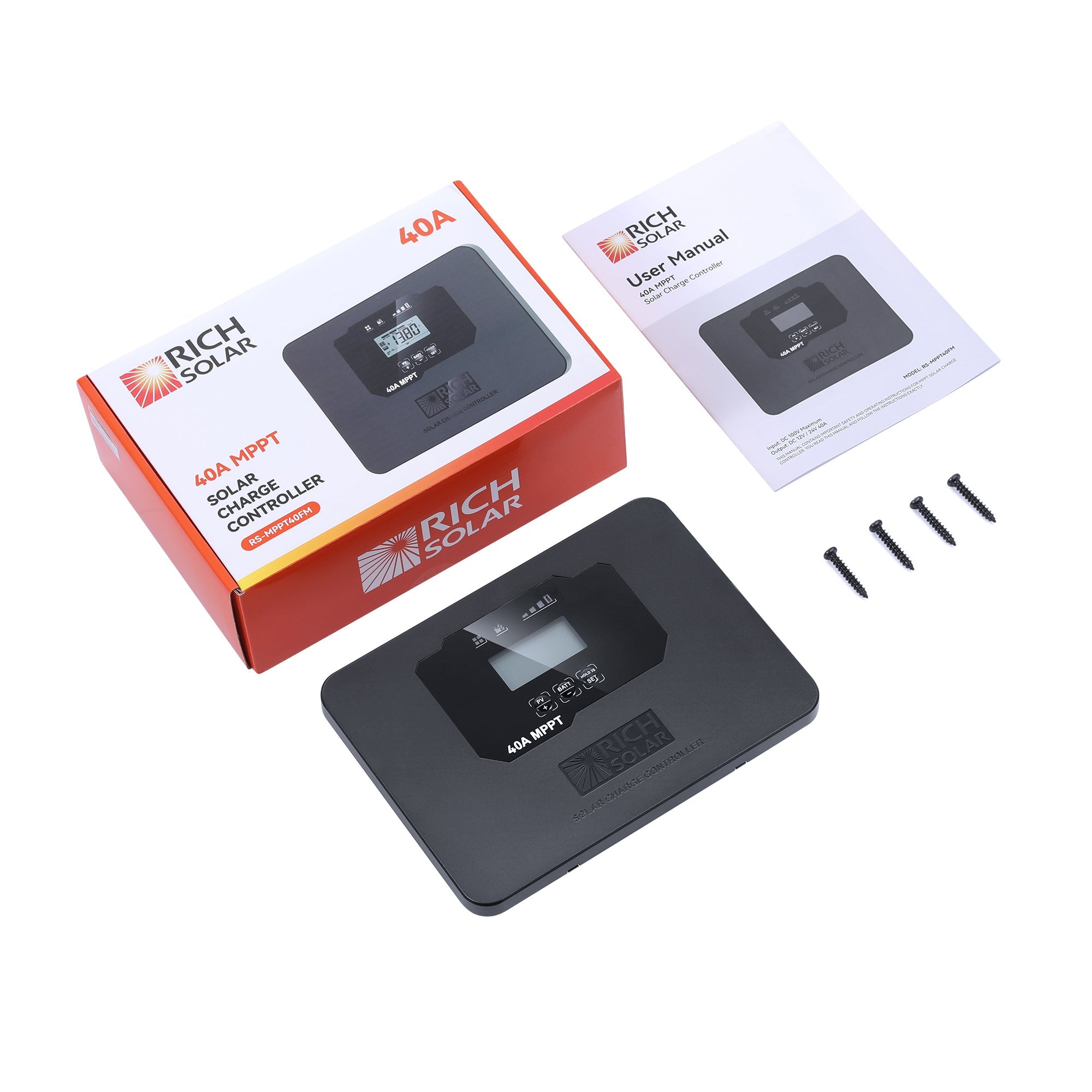

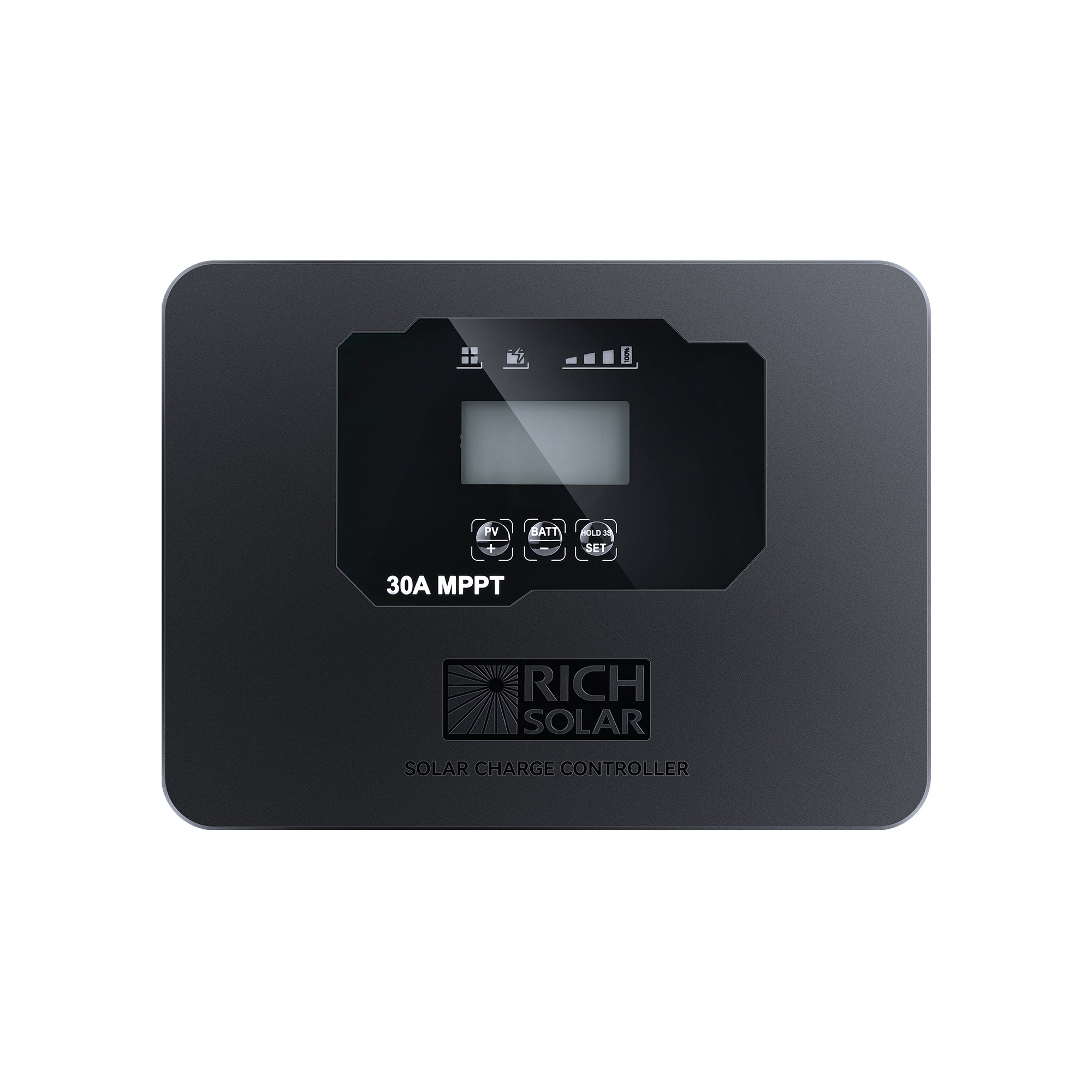

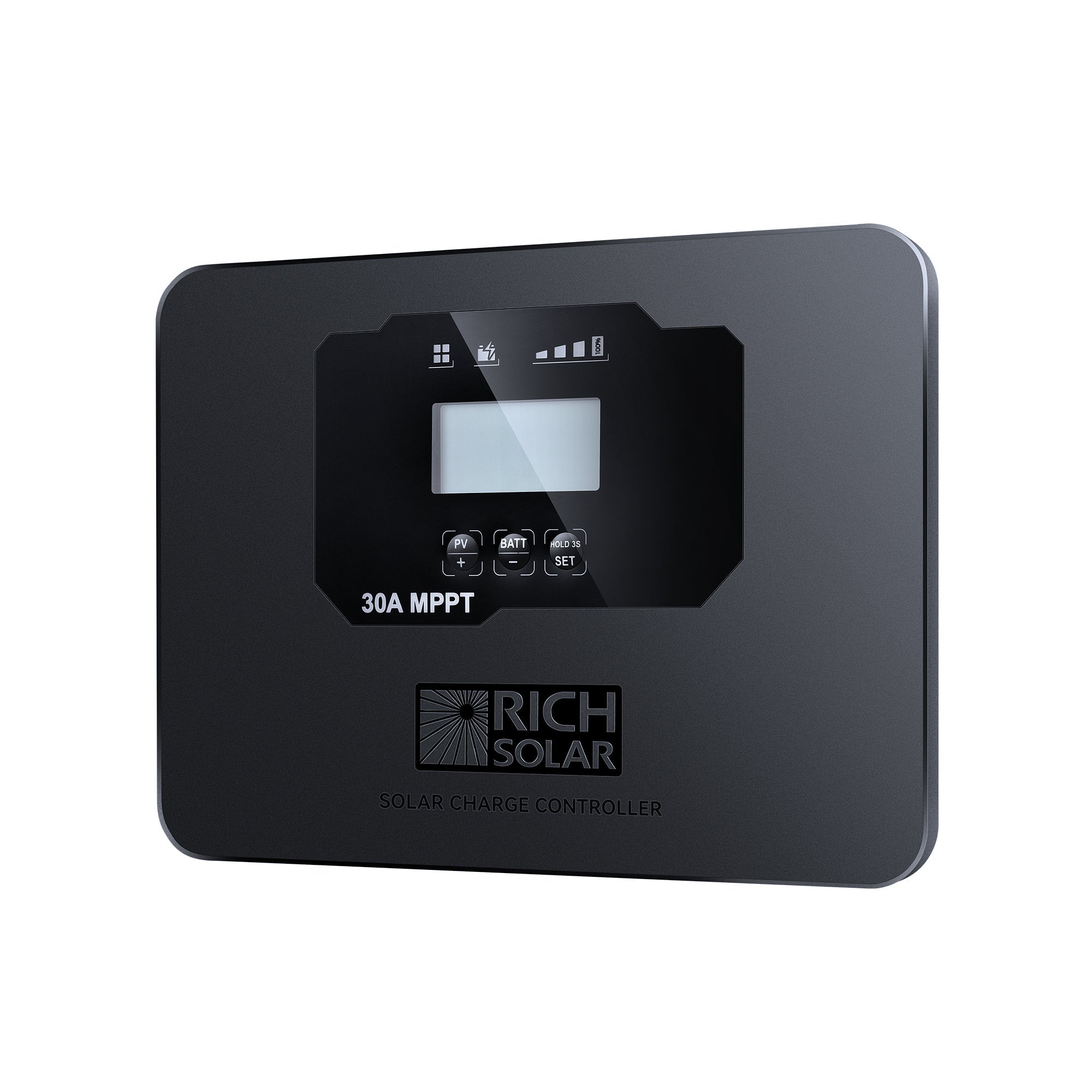

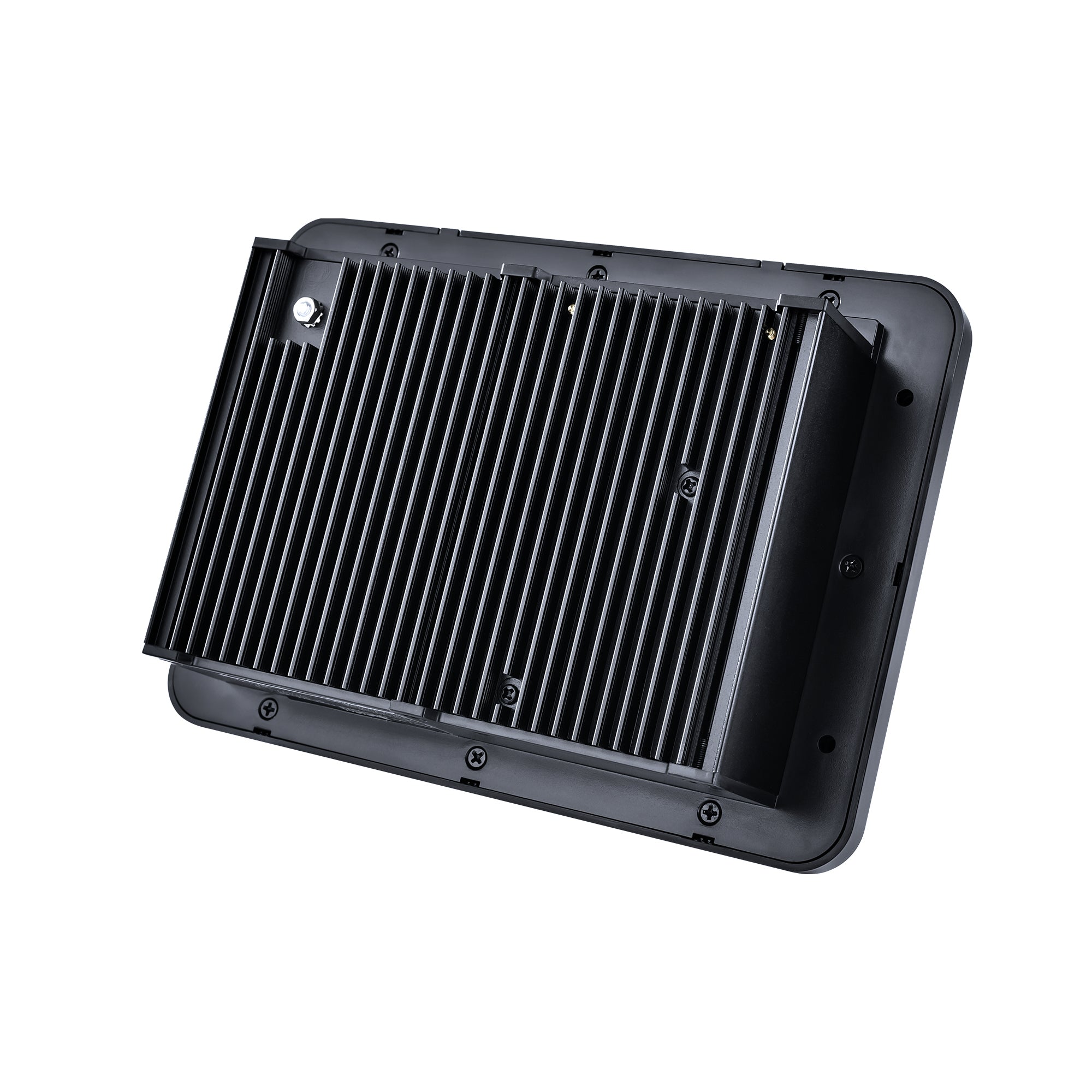

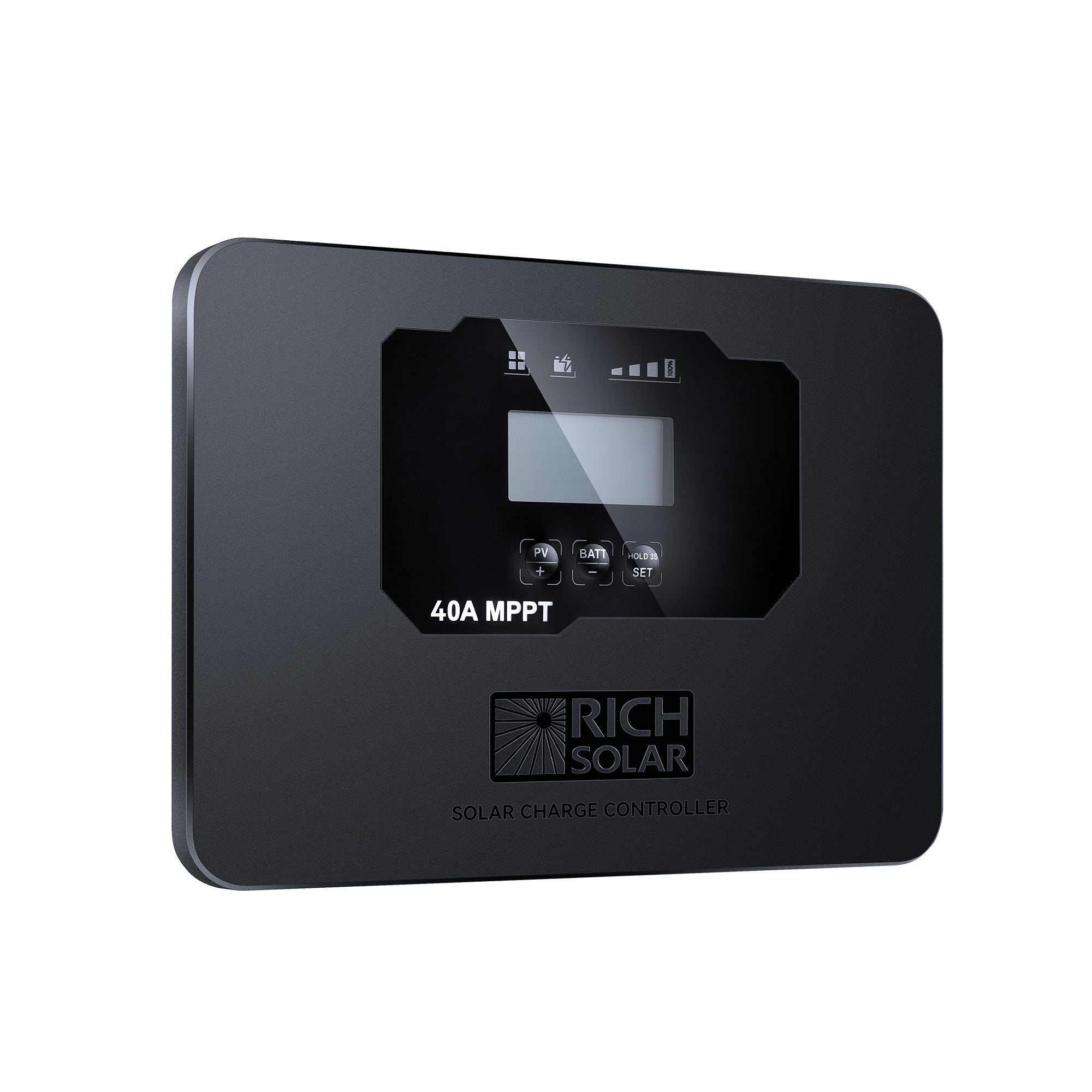

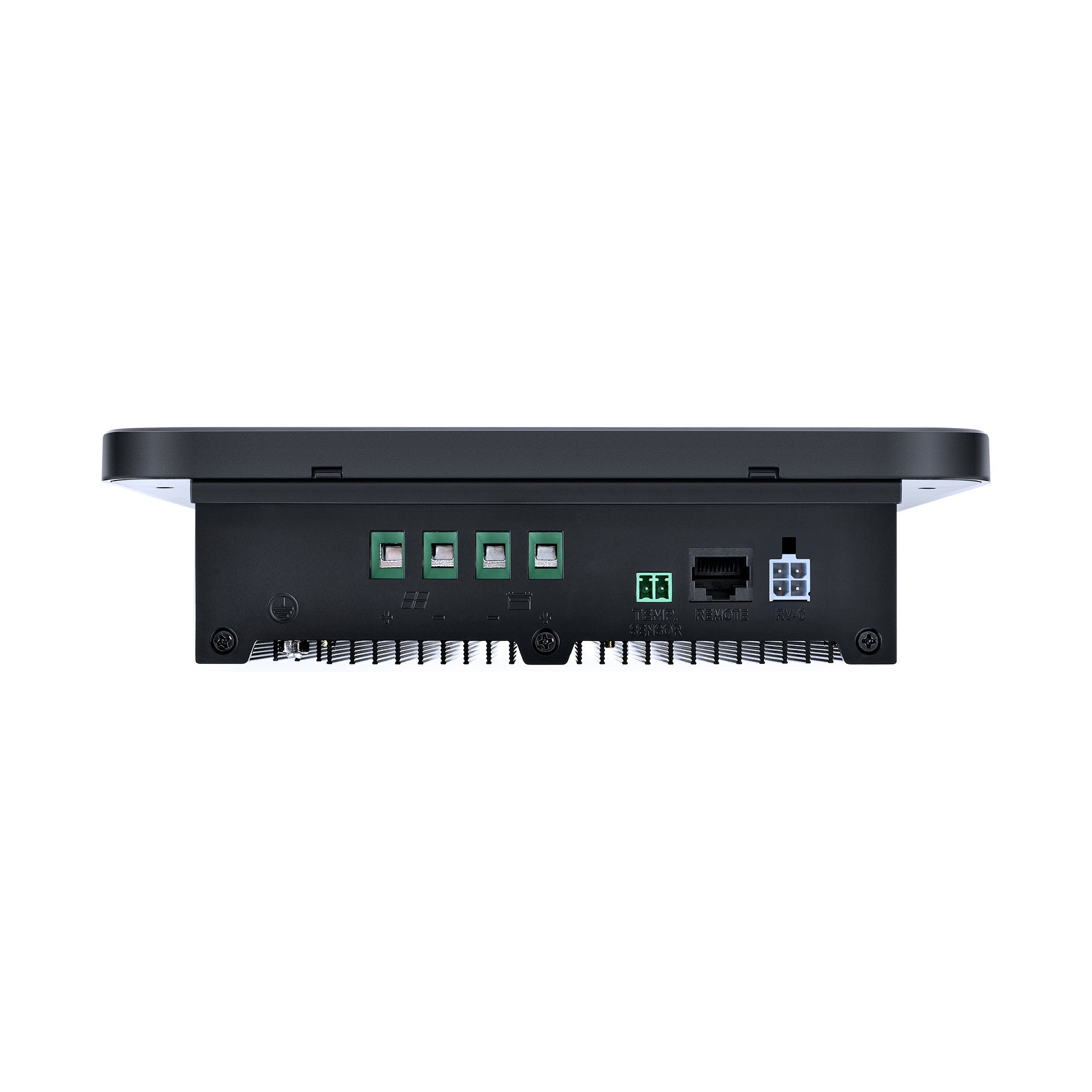

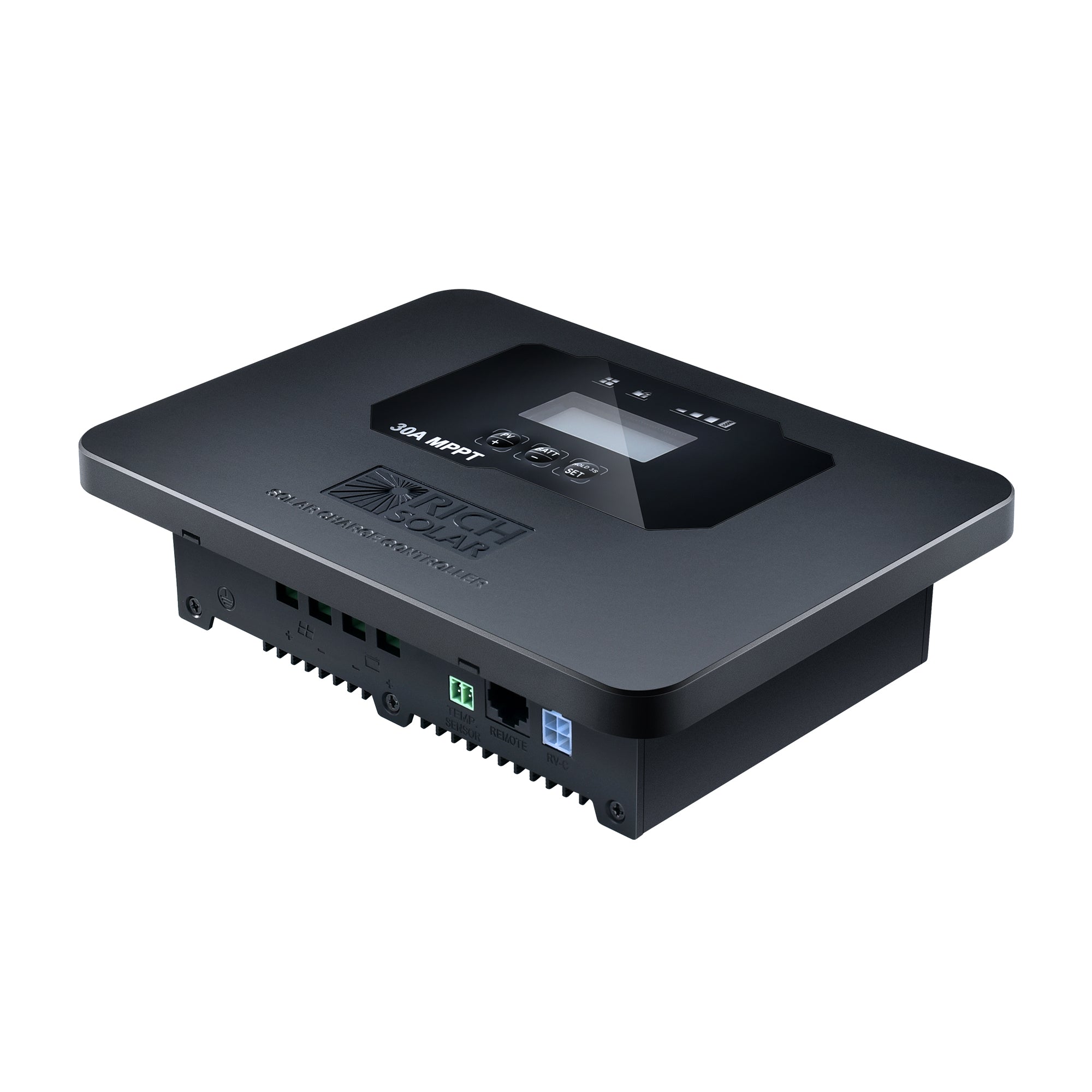

BRAVO Flush Mount MPPT Solar Charge Controller | 30A, 40A
SKU: RS-MPPT30FM
$199.99
/
Shipping calculated at checkout.
Shipping
This product is shipped directly from the manufacturer. Shipping times may vary, and the manufacturer's warranty applies.
Specifications & Downloads
Features
- PV open circuit voltage up to 100V.
- The latest Maximum Power Point Tracking (MPPT) algorithm.
- Unique multiple peaks detected technology for MPPT.
- MPPT efficiency above 99.5%.
- Wider MPP operating voltage range.
- Common negative grounding connection.
- Suitable for most rechargeable batteries, up to 9 battery types preset plus custom setting.
- Extensive internal electronics in-circuit protection.
- Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
- Automatically detect 12V or 24V DC system voltages.
- Unique and concise LED bar to indicate the solar status and battery charging condition.
- Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting and faulty codes, etc.
- Provides plug-in remote digital display meter (Optional).
- Provides external battery temperature sensor (Optional).
- Splash-proof IP43.
- Rubber mask for connecting terminal’s protection.
- Conformal coating for internal boards.
- Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.
Specifications
- Max. PV Open Circuit Voltage: 100 VDC
- Max. Normal Input PV Voltage: 92 VDC
- Max. PV Input Current: 30 AMP
- Max. PV Short Circuit Current: 35 AMP
- Max. Conversion Efficiency: 98%
- Min. Tracking Efficiency: 99.5%
- Nominal PV Power: 500W@12V/1000W@24V
- Min. Battery Start Charging Voltage: 5 VDC
- Soft Start Charging Voltage: 5~10±0.2 VDC
- Soft Start Charging Current: 15 AMP
- Max. Bulk Charge: 30 AMP
- Controller Material: Plastic, PC
- Mounting: Surface Mounting
- IP Grade: IP43
- Net Weight: 1.87 lb
- Operating Temperature: -13 ~ 122 ℉
- Storage Temperature: -40 ~ 185 ℉
- Operating Humidity Range: 0-85% RH
Features
- PV open circuit voltage up to 100V.
- The latest Maximum Power Point Tracking (MPPT) algorithm.
- Unique multiple peaks detected technology for MPPT.
- MPPT tracking efficiency above 99.5%.
- Wider MPP operating voltage range.
- Common negative grounding connection.
- Suit for most rechargeable batteries, up to 9 battery types preset plus custom setting.
- Extensive internal electronics in-circuit protection.
- Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
- Automatically detect 12V or 24V DC system voltages.
- Unique and concise LED bar to indicate the solar status and battery charging condition.
- Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting faulty codes, etc.
- Provides plug-in remote digital display meter (Optional).
- Provides external battery temperature sensor (Optional).
- Splash-proof IP43.
- Rubber mask for connecting terminal’s protection.
- Conformal coating for internal boards.
- Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.
Specifications
- Max. PV Open Circuit Voltage: 100 VDC
- Max. Normal Input PV Voltage: 92 VDC
- Max. PV Input Current: 40 AMP
- Max. PV Short Circuit Current: 45 AMP
- Max. Conversion Efficiency: 98%
- Min. Tracking Efficiency: 99.5%
- Nominal PV Power: 600W@12V/1200W@24V
- Min. Battery Start Charging Voltage: 5 VDC
- Soft Start Charging Voltage: 5~10±0.2 VDC
- Soft Start Charging Current: 20 AMP
- Max. Bulk Charge: 40 AMP
- Controller Material: Plastic, PC
- Mounting: Surface Mounting
- IP Grade: IP43
- Net Weight: 1.87 lb
- Operating Temperature: -13 ~ 122 ℉
- Storage Temperature: -40 ~ 185 ℉
- Operating Humidity Range: 0-85% RH
