Features

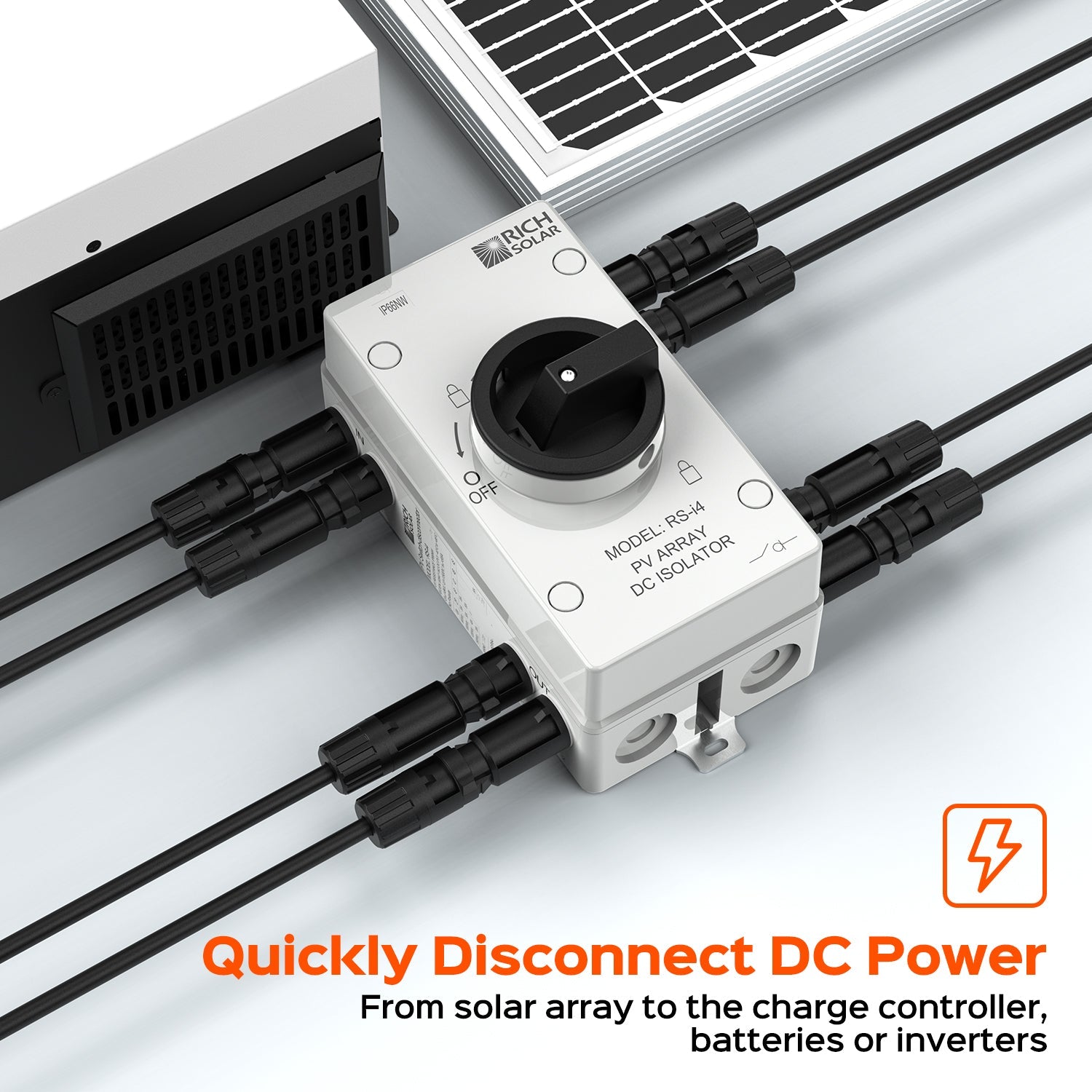

- Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated.

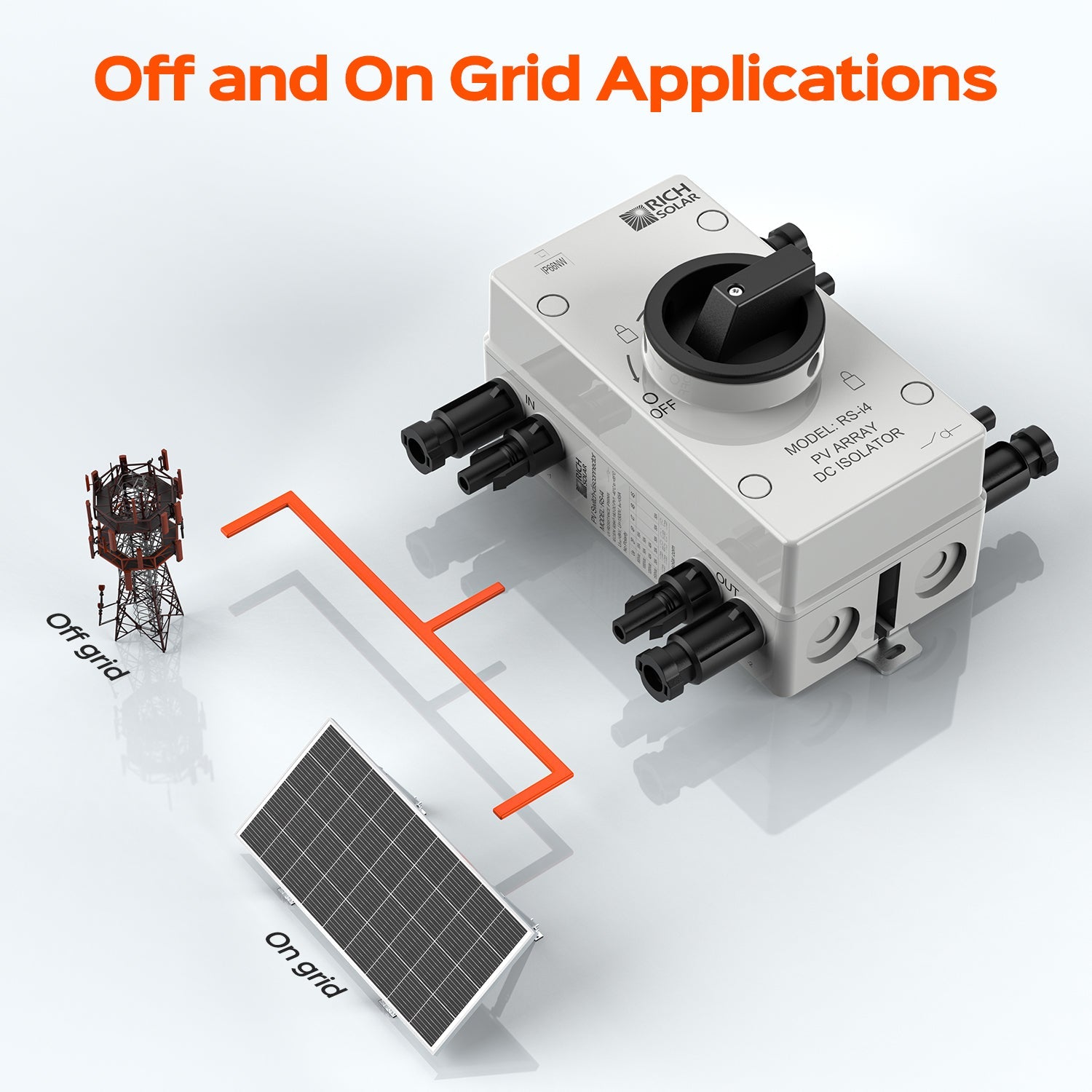

- Off and on-grid applications.

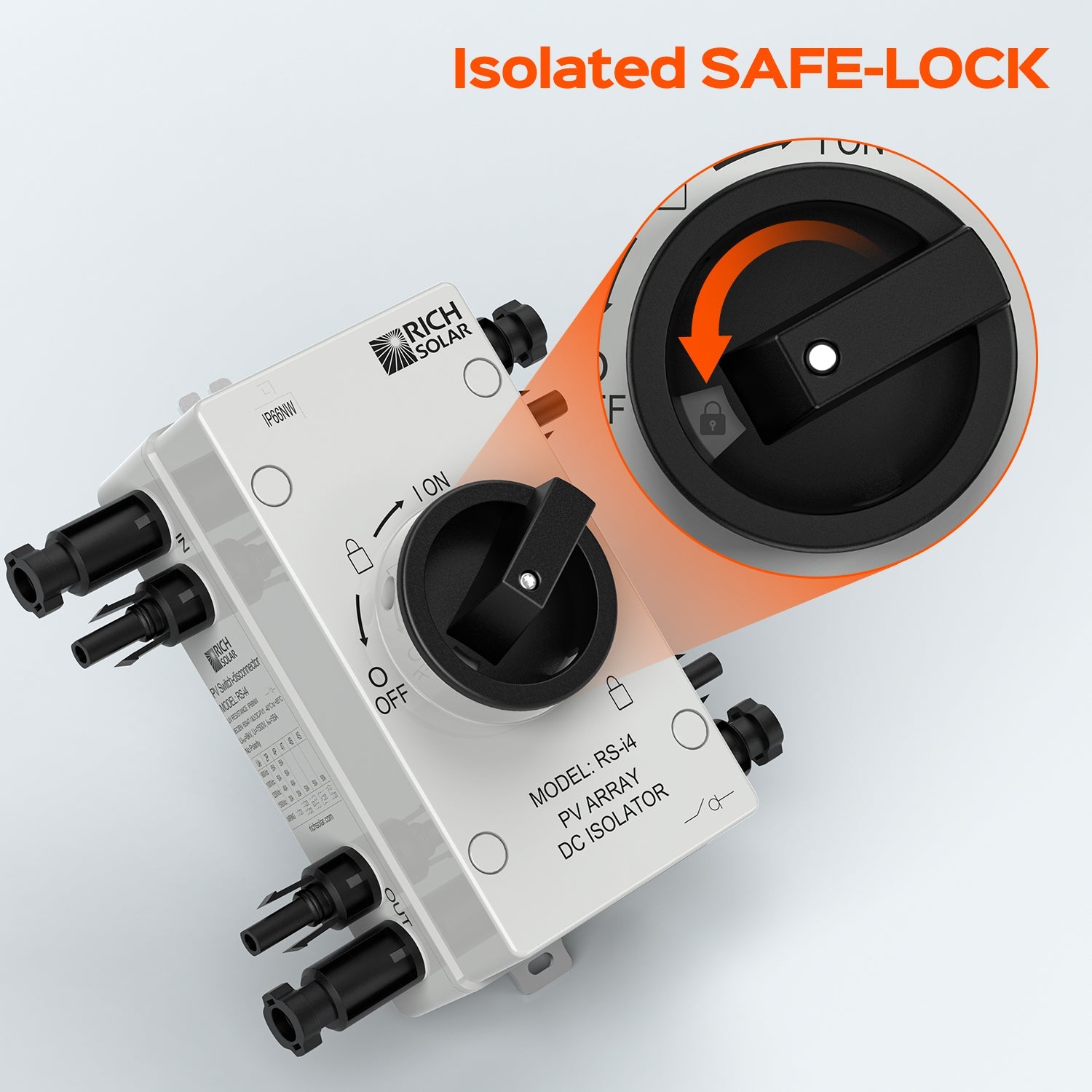

- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- 4-pole and 2-string.

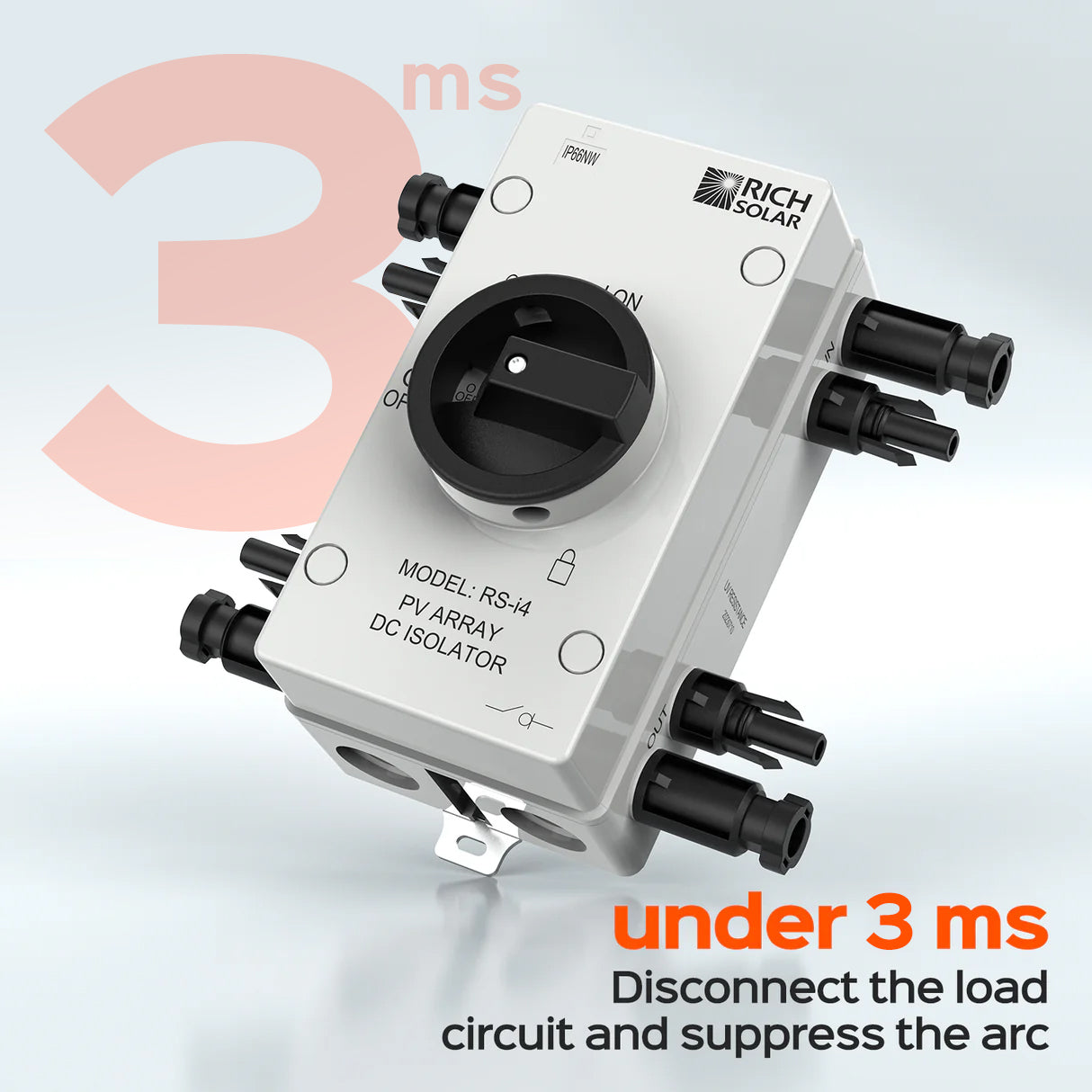

- Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
- Lockout option.
- Output and input connections are built for easy setup and installation.
Specifications
- Max. Rated Current: 55A
- Max. Rated Voltage: 1500V
- Circuit: 4-pole and 2-string

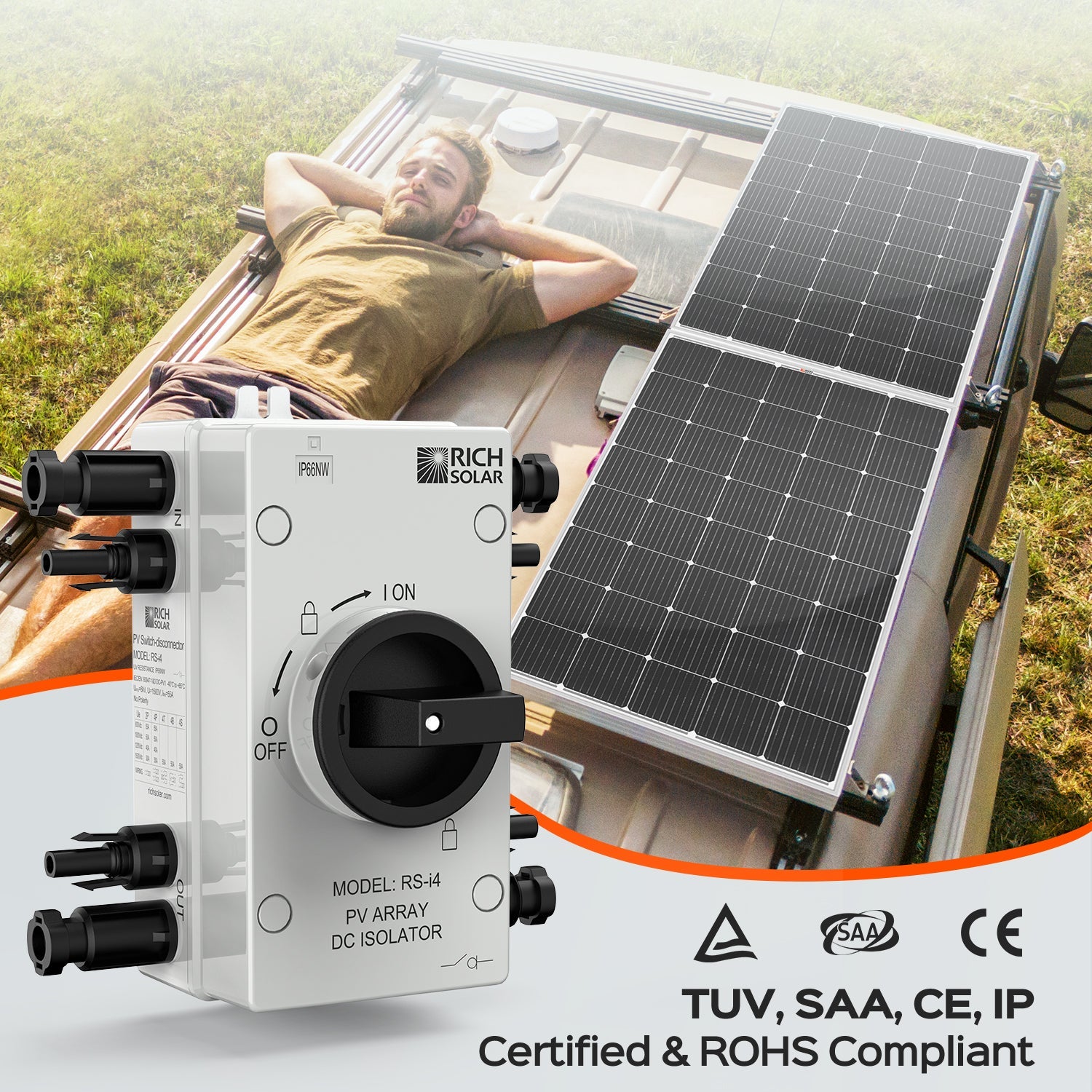

- Standard: TUV, SAA, CE, IP certified & ROHS compliant
- Non-corrosive
- Waterproof: IP66NW
- Arc Time: <3ms
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Warranty: 3 years

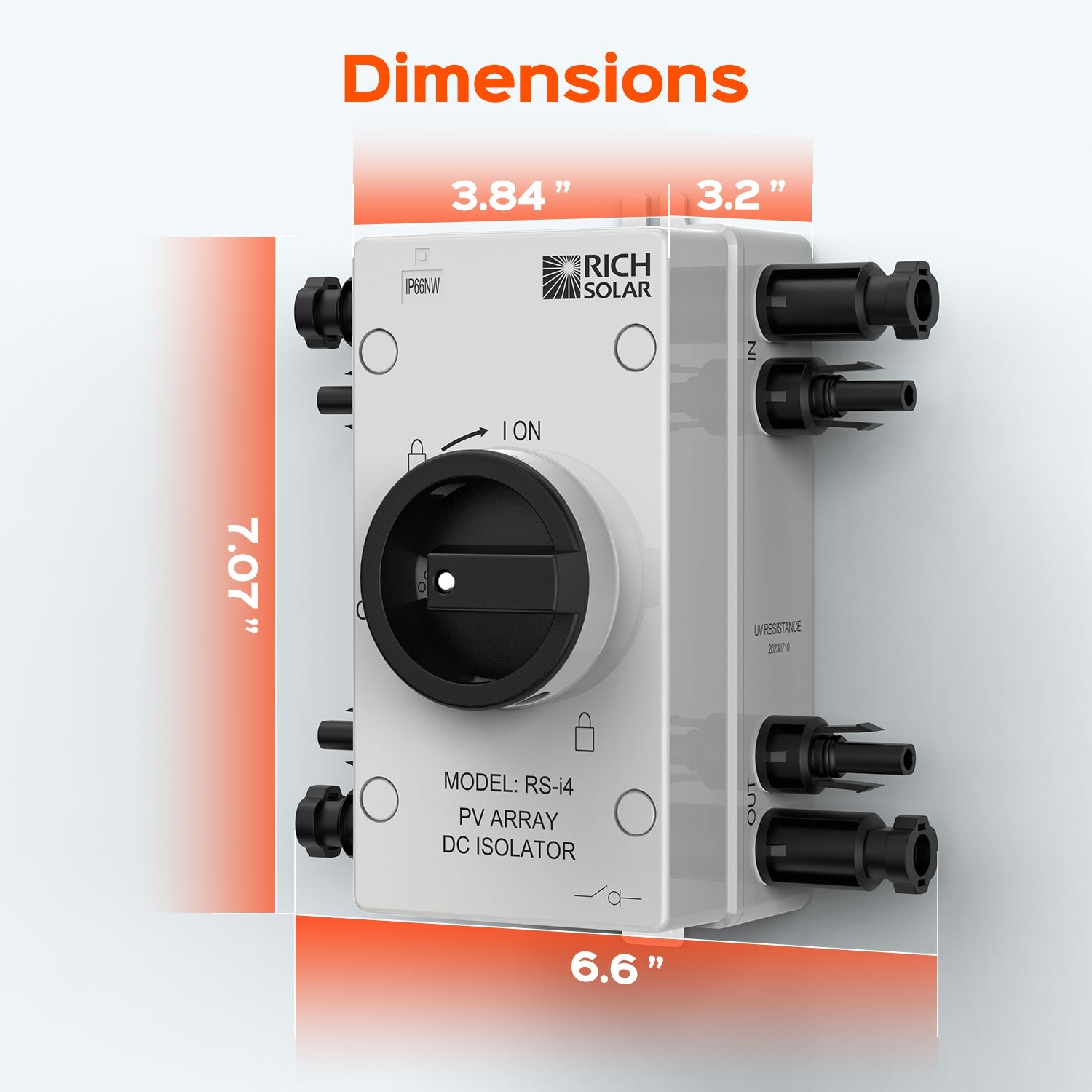

- Dimensions (HxWxD): 7.1x6.8x4.3 in / 179.5x173.9x110 mm
- Net Weight: 1.7lb / 0.77kg
