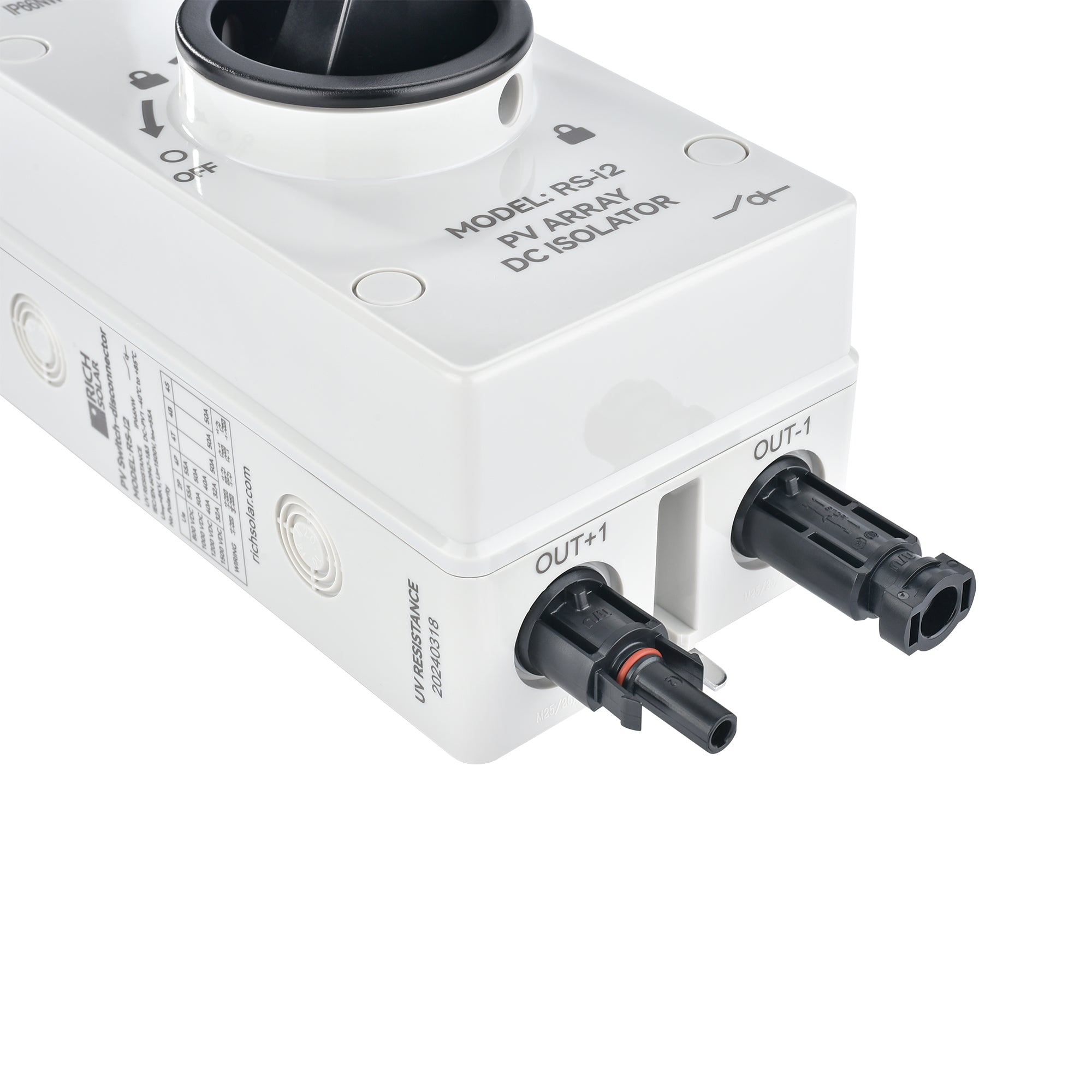

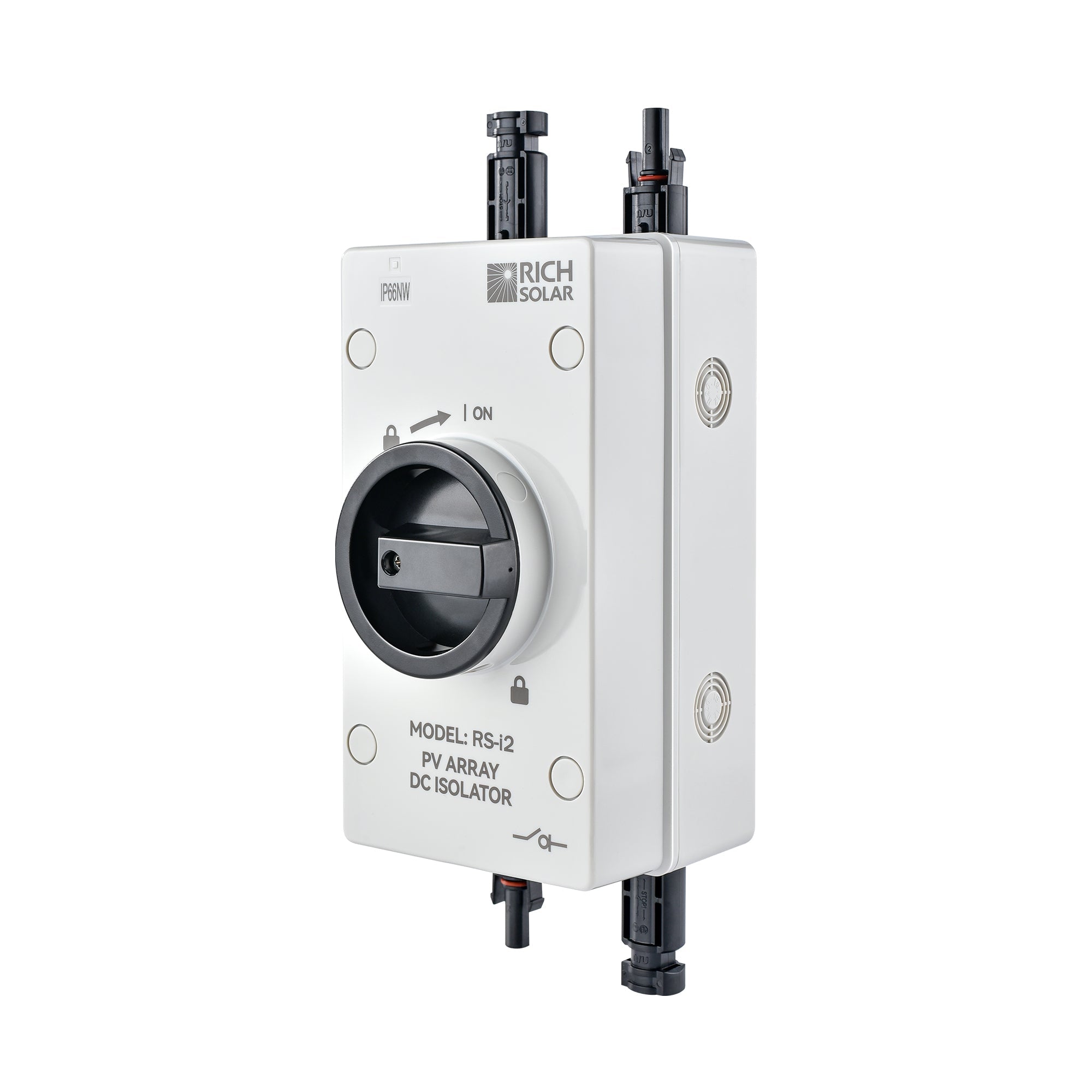

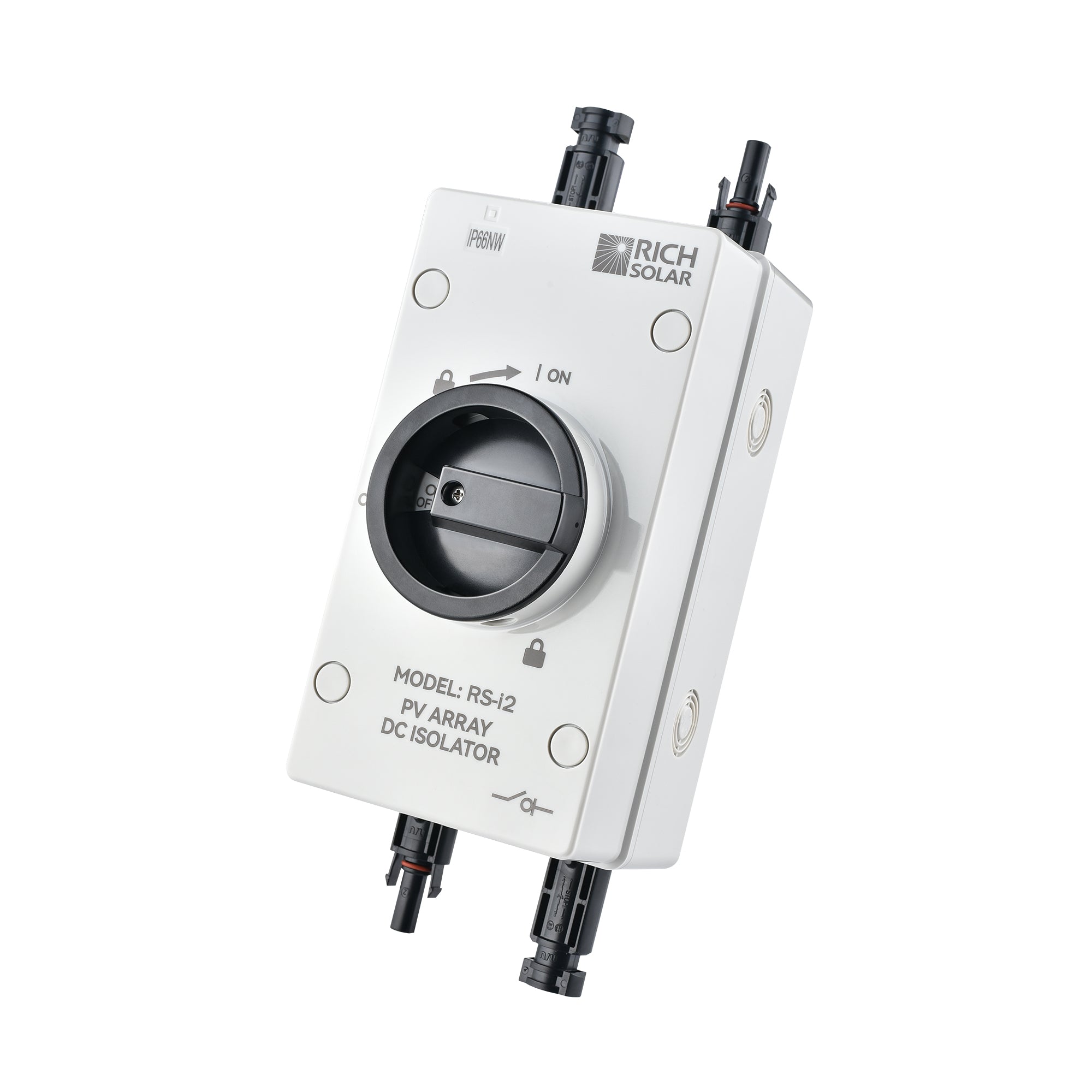

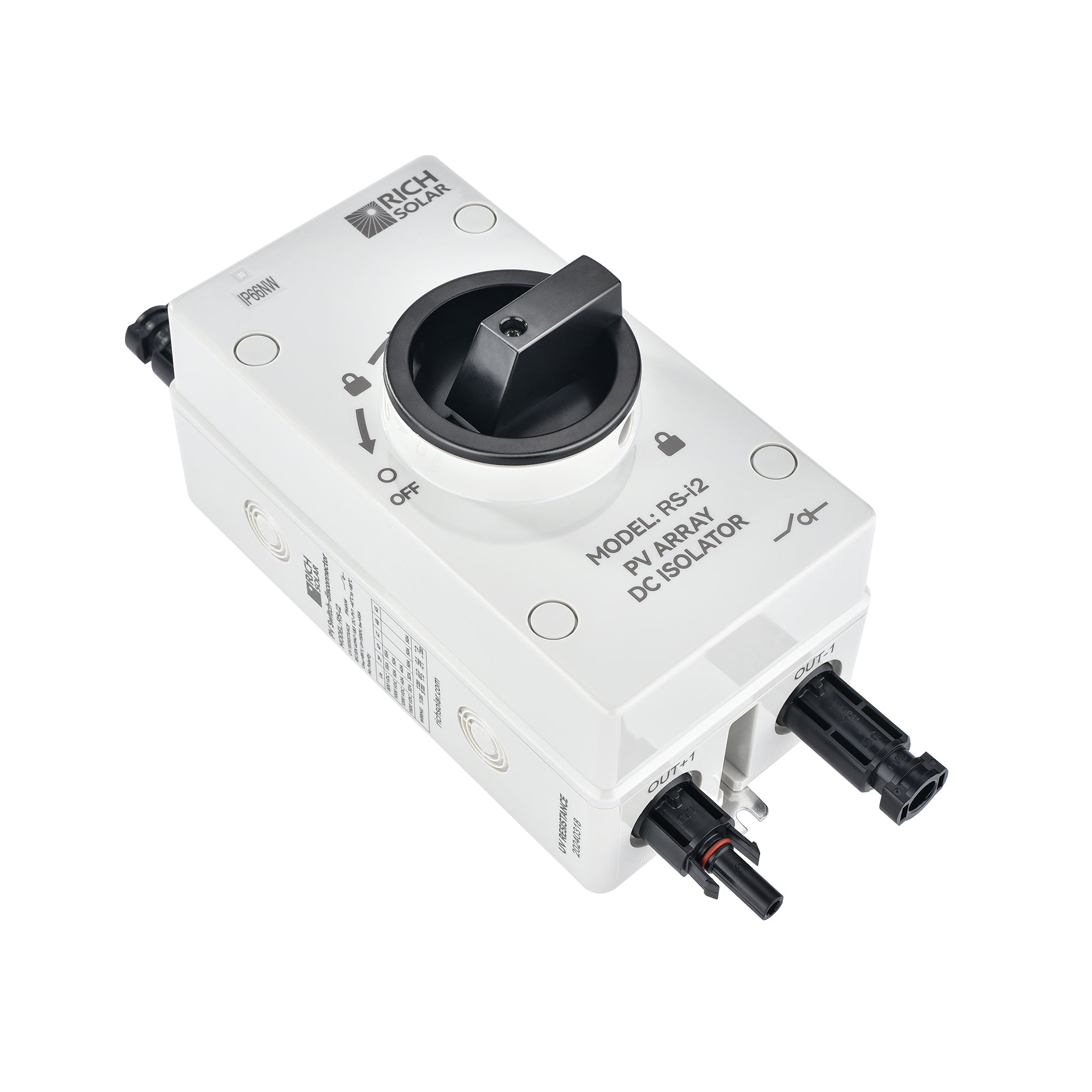

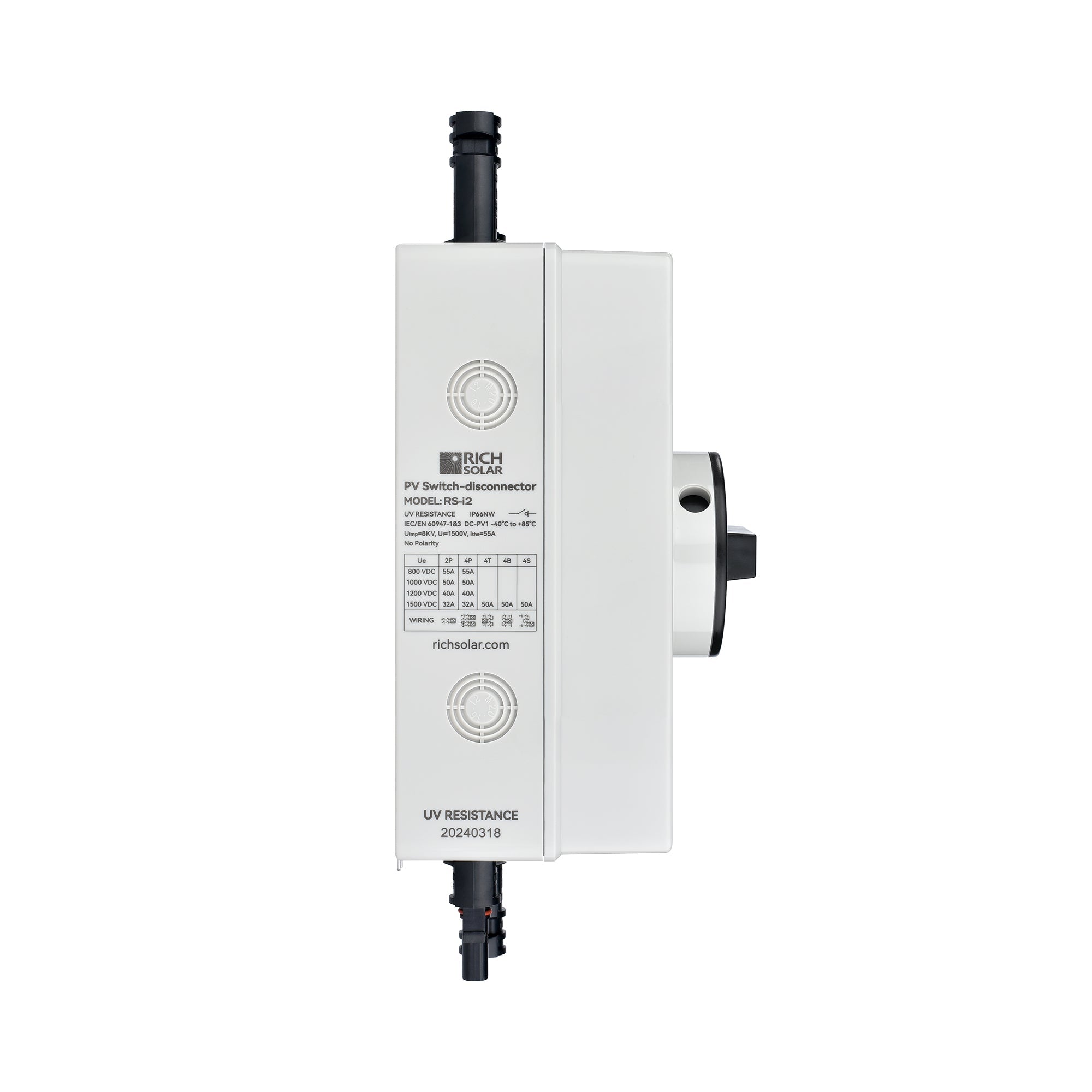

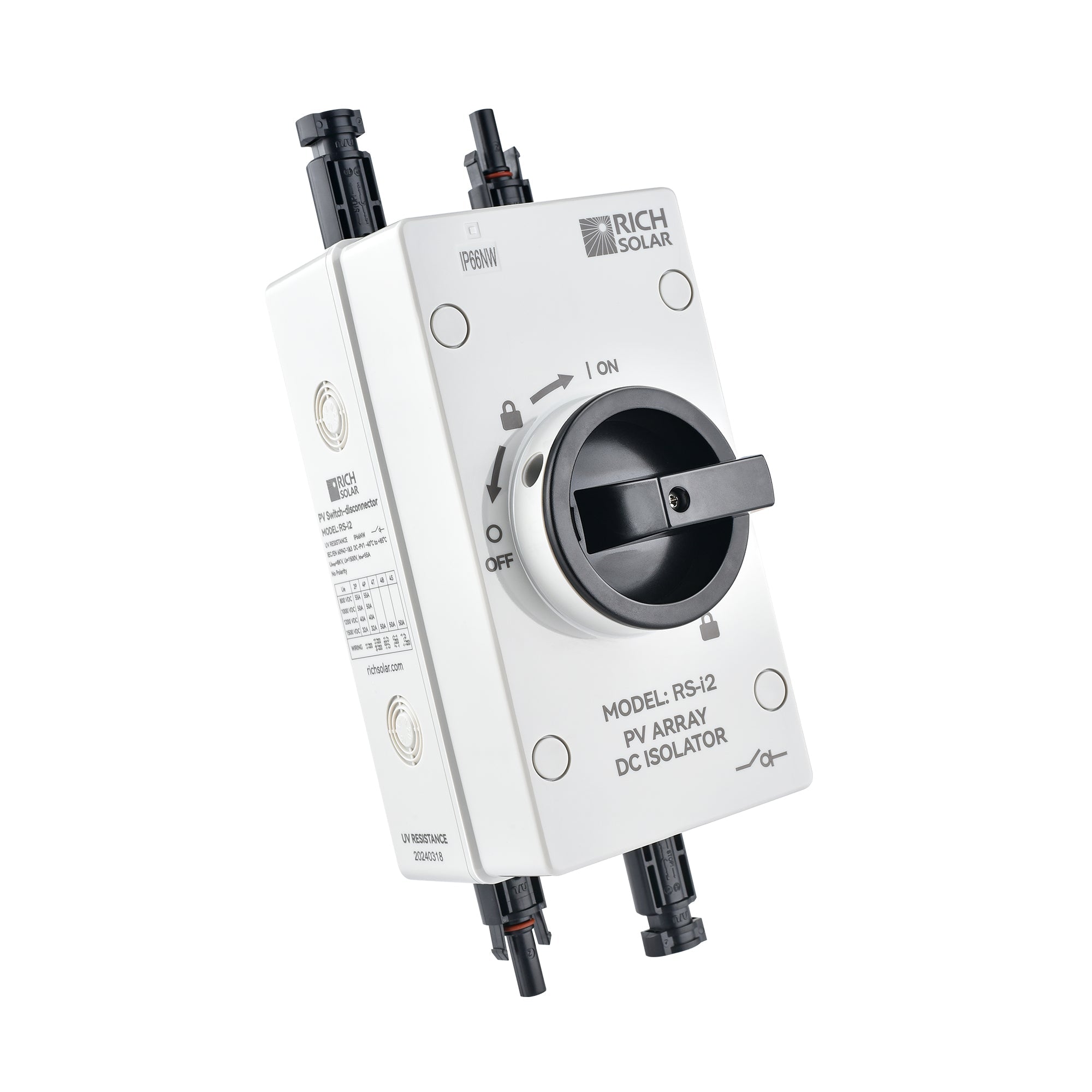

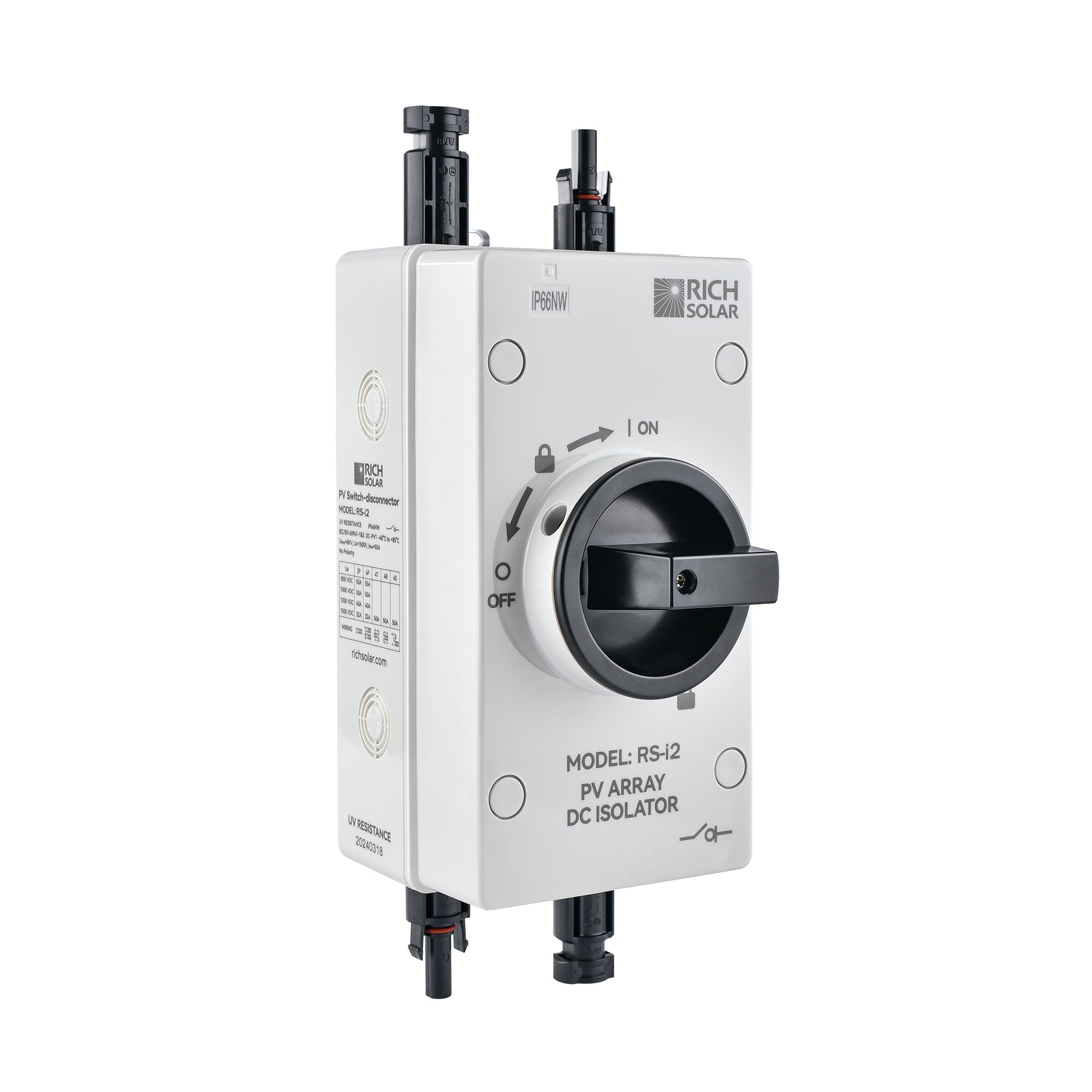

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install
SKU: RS-i2
$99.99
/
Shipping calculated at checkout.
Shipping
This product is shipped directly from the manufacturer. Shipping times may vary, and the manufacturer's warranty applies.
Specifications & Downloads
Features
- Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated.
- Off and on-grid applications.

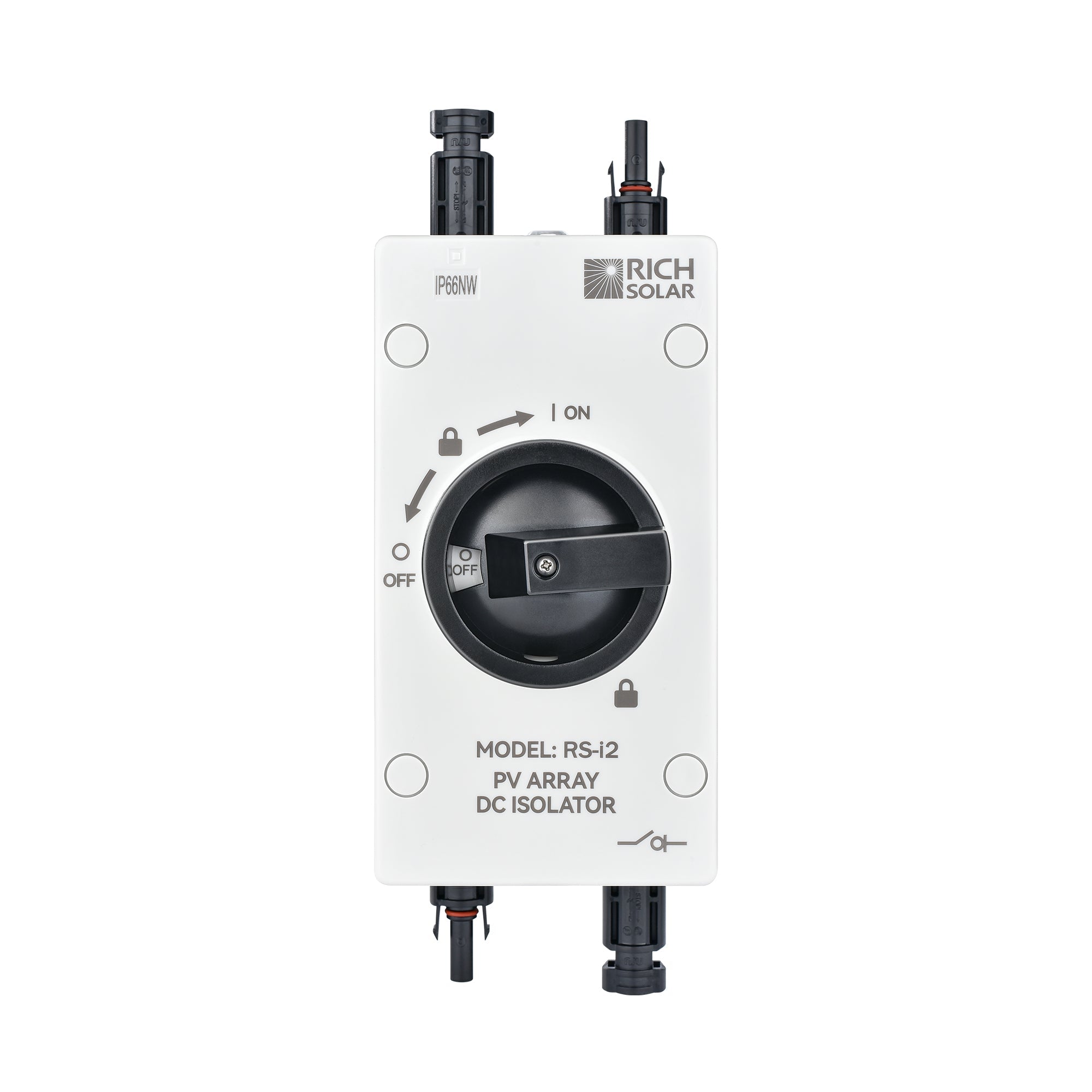

- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- 2 poles and 1 string.
- Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
- Lockout option.

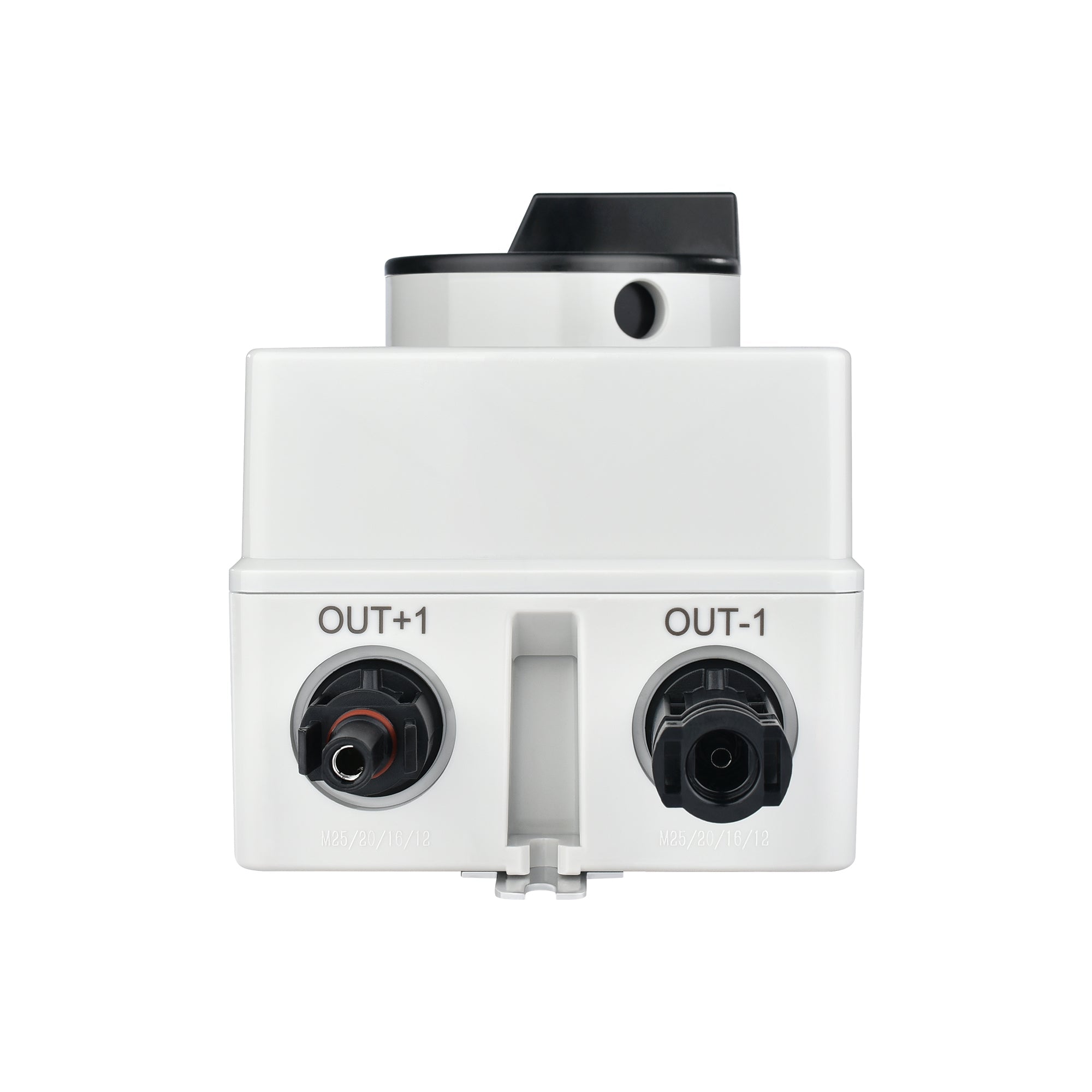

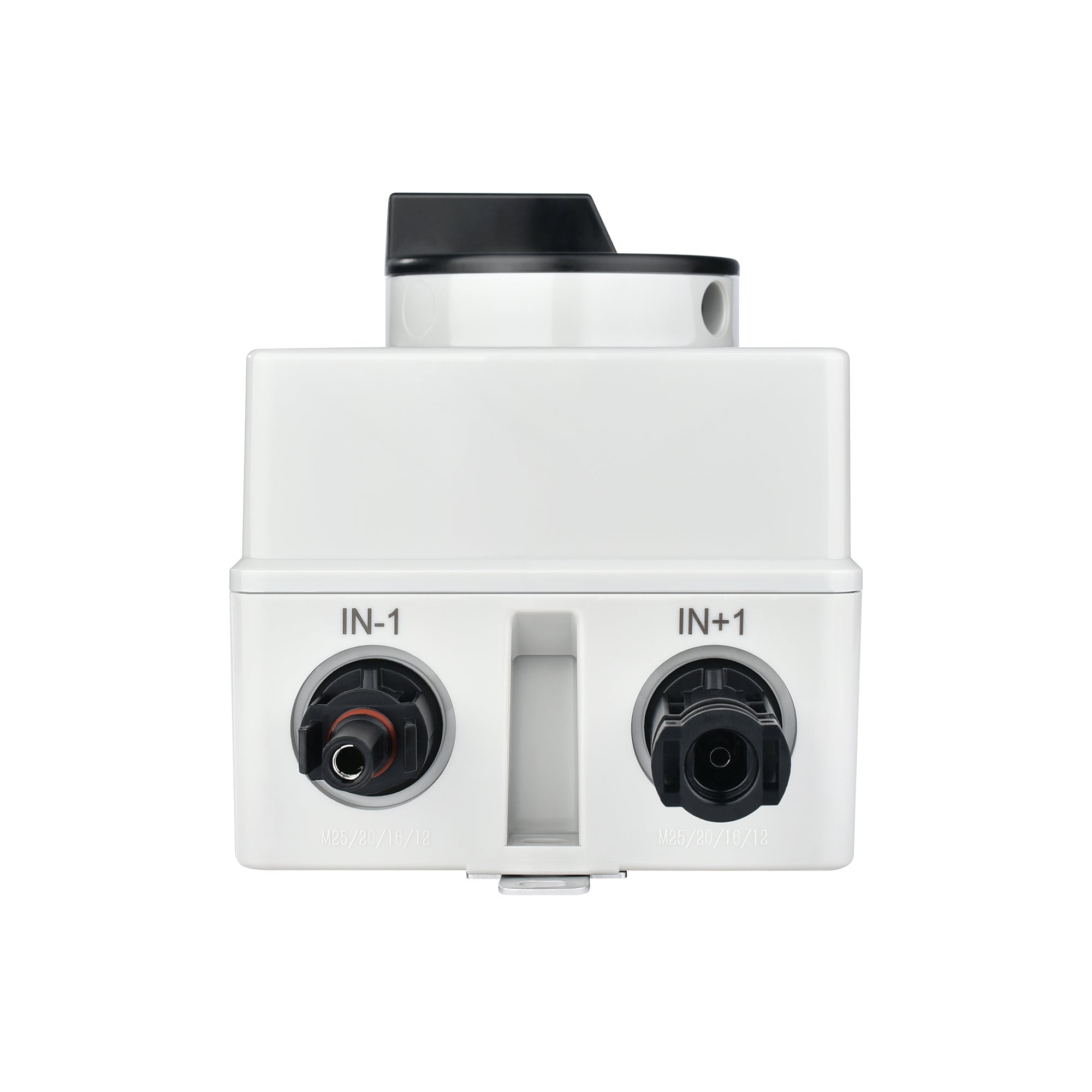

- Output and input connections are built for easy setup and installation.
<
Specifications
- Max. Rated Current: 55A
- Max. Rated Voltage: 1500V
- Circuit: 2-pole and 1-string
- Standard: TUV, SAA, CE, IP certified & ROHS compliant
- Waterproof: IP66NW
- Arc Time: <3ms
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Warranty: 3 years

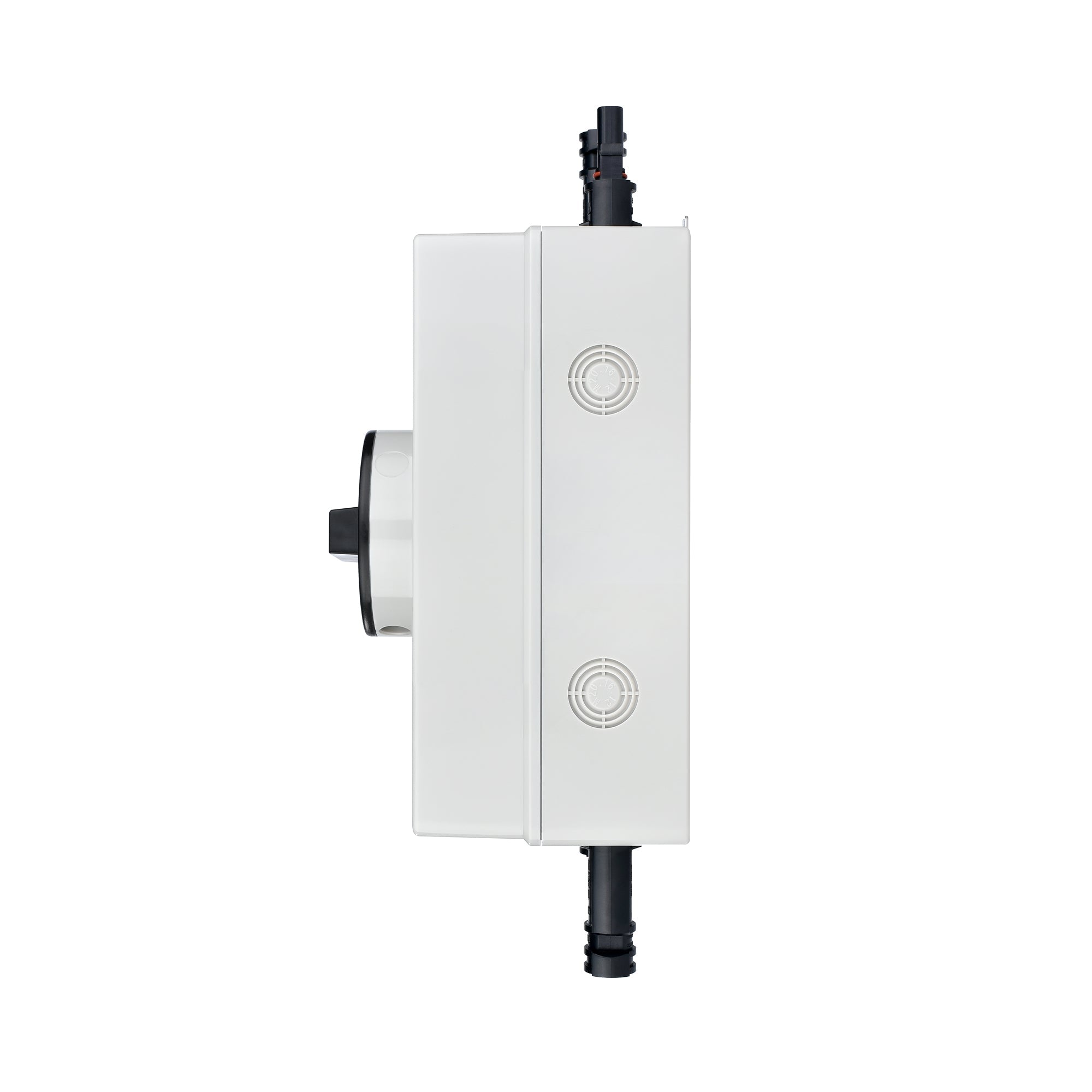

- Dimensions (HxWxD): 9.8x3.8x4.3 in / 249.4x97.6x110 mm
- Non-corrosive
